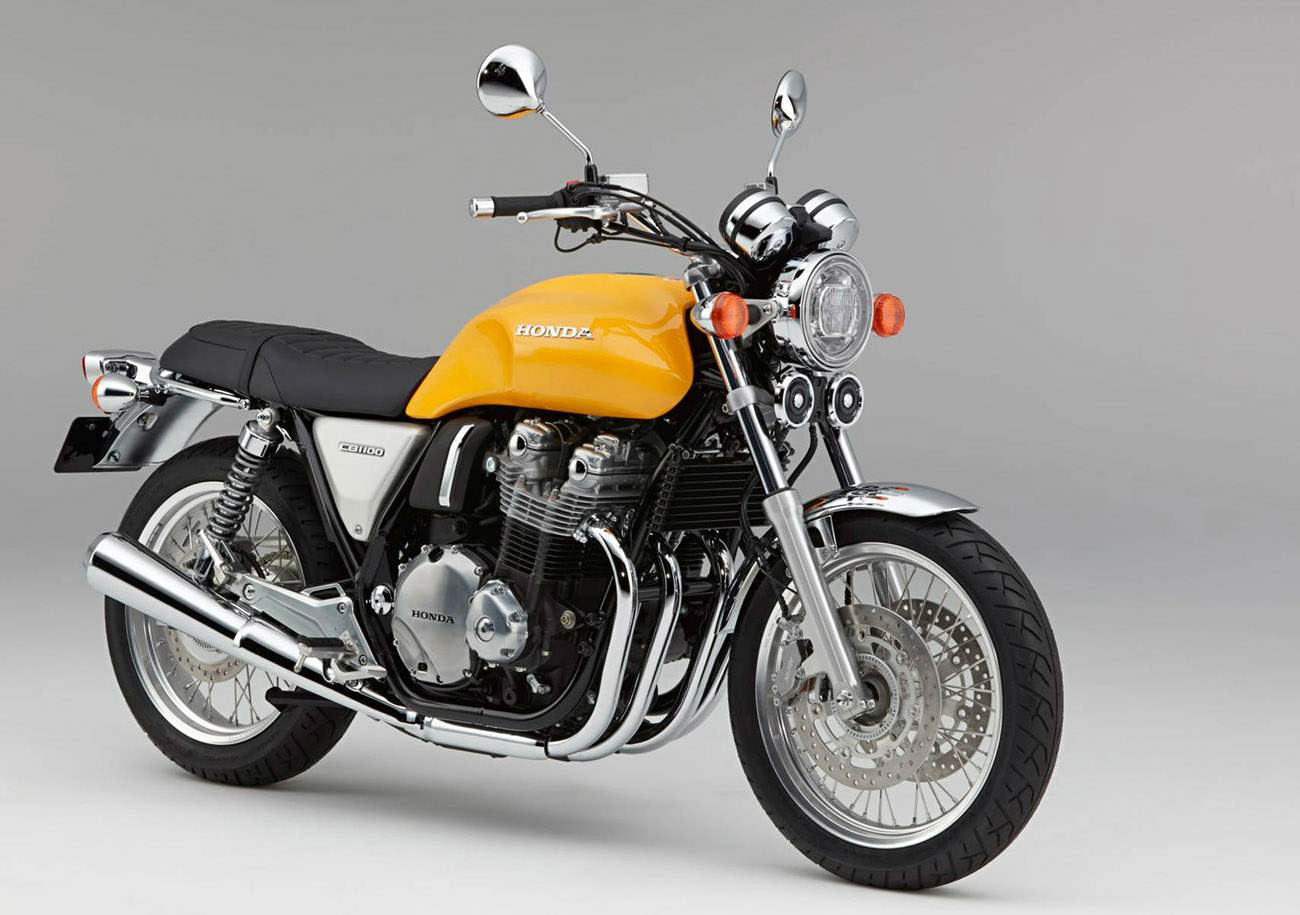

Honda CB 1100EX

Honda’s classic inline-fours were very comfortable, and it’s the same for the new CB1100 EX. Ride it for 10 minutes or two hours and you’ll see that it’s one of the easiest-to-live-with machines in any class.

Twin-Shock Rear Suspension

Easy to adjust and equipped with preload adjustability, the CB1100 EX’s new Showa suspension offers improved compliance and proves that the traditional design, done right, can provide excellent handling characteristics.

Two-Channel Anti-Lock Braking System

Honda’s ABS system, standard on the CB1100 EX model, provides additional confidence when stopping in less-than ideal conditions.

Wire Spoked Wheels

Classic spoked wheels look great, but the CB1100 EX rolls on hoops with 40 stainless-steel spokes per wheel and aluminum hubs. Light and strong, they perform as good as they look.

Steel Chassis

An air-cooled inline four engine in a classic like the CB1100 EX just has to bolt up in a twin-loop full-cradle steel chassis. The twin shock mounts complete the look. But this isn’t some retro frame: Honda’s chassis engineers have graced it with modern materials and construction techniques. The result is a bike that both looks great and handles like a modern bike should.

Steel Swingarm

Combined with the CB1100 EX’s steel-tube full-cradle twin-loop frame, the stout steel swingarm is part of the bike’s excellent handling package.

Large Seamless Fuel Tank

The CB1100 EX features a fuel tank with 4.4 gallons of capacity. That, plus the bike’s excellent fuel efficiency, give you plenty of range.

Programmed Fuel Injection (PGM-FI)

Improved cold-weather startups, no-drama high-altitude riding and no choke are just three benefits of PGM-FI.

1140cc Air-Cooled Engine

With an engine this size, you get power everywhere—enough to go on a spirited street ride, an hour-long cruise or carry a passenger with ease.

Blacked-Out Engine with Aluminum Highlights

Subtly blacked-out, the engine wears natural aluminum engine covers, and features a cylinder head finished in silver with a burnished aluminum cam cover and chrome end caps.

Four-Into-Two Exhaust

The CB1100 EX’s four-into-two exhaust pipe gives this bike a classic look along with a crisp sound, and the chrome finish is a great highlight, too.

41mm Front Fork

The CB1100 EX is equipped with a Showa Dual Bending Valve (SDBV) 41mm front fork, which uses two valves to generate both compression and rebound damping force for a linear suspension feel and excellent control.

Timeless Instrumentation

New digital instruments tuck into classic round chromed instrument housings—the best for both worlds. You get proper looks and all the electronic functions you expect from a modern bike.

Triple Disc Brakes

Nothing retro here: the CB1100 EX’s huge twin front discs and single rear disc are drilled for lighter weight and less heat retention, and offer smooth, predictable, powerful stopping capability. Naturally, the system features ABS as standard equipment.

SUSPENSION
•Fuel tank does away with the seam-welded lips along both bottom edges, and pays homage both to CB history and contemporary style with a cutaway rear section that displays the cam cover. Aircraft-style filler cap adds another visible touch of class.
•A chrome round front headlight (now LED, with a spiral running light) crowns the front of the machine, underlined by twin horns. It’s held with aluminum stays and flanked by classic-style 70mm diameter indicators.
•LED rear light, indicators and license-plate mounting bracket have been minimalized for a streamlined look.
•Classic tubular-steel double-cradle frame holds the engine with four rigid and two rubber mounts. It features relaxed steering geometry, sure-footed stability with neutral handling characteristics. The rider triangle is also relaxed and upright, and the handlebar shape has been revised to maintain a neutral position.
•Showa Dual Bending Valve (SDBV) 41mm front fork uses two valves to generate both compression and rebound damping force for a linear suspension feel. A new die-cast aluminum top triple clamp features a buffed finish and clear coat, while the bottom triple clamp holds the fork legs in a higher position.
•Twin Showa rear shocks offer adjustable spring preload and operate through a steel swingarm, which has a clean look thanks to an under-slung rear-brake hose. An aluminum chain guard replaces the previous plastic design.
•Redesigned 18-inch spoke wheels wear 110/80 R18 and 140/70 R18 front and rear tires. Smaller aluminum hubs lace the wheel rim with 40 longer stainless steel (rather than the 48) zinc-plated spokes.
•Twin 296mm floating front brake discs are mated to four-piston Nissin calipers, with a 256mm disc and single-piston caliper at the rear. ABS is standard.
•Side panels are made of brushed aluminum with a textured “hairline” finish, while the seat is well padded and comfortable.
•Chrome seat rails add seamless lines, with no clutter, and the chrome steel rear fender has a more rounded cross section.
•Smaller die-cast aluminum hangers mount both rider and pillion foot pegs.
•Longer side stand makes it easier to get the machine upright.
•Circular speedometer and odometer are adorned in chrome; equipment includes a fuel gauge and clock, gear position indicator, fuel efficiency gauge and range computer. Ignition is now via a ‘wave’ style key.
