Honda CT 125

.



Make Model

Honda CT 175

Year

1975 -

Engine

Four stroke, single cylinder, SOHC, 2 valves

Capacity

125 cc / 7.6 cu-in
Bore x Stroke 56 x 49 mm
Cooling System Air cooled
Compression Ratio 9.4:

Induction

Carburettor

Ignition

CDI
Starting Kick

Max Power



Max Torque


Clutch Wet multiplate

Transmission

5 Speed
Final Drive Chain
Frame Expanding brake (drum brake)

Front Suspension

Oil dampened telescopic, 115mm wheel travel.

Rear Suspension

Dual shock, oil dampened, 64mm wheel travel.

Front Brakes

140mm Drum

Rear Brakes

130mm Drum

Front Tyre

3.00 -19

Rear Tyre

3.50 -18
Rake 61.3°
Trail 110 mm / 4.3 in
Wheelbase 1295 mm /  50.9 in
Seat Height 810 mm / 32.2 in

Dry Weight

108.0 kg / 238.1 lbs

Fuel Capacity

6 Litres / 1.6 US gal
.

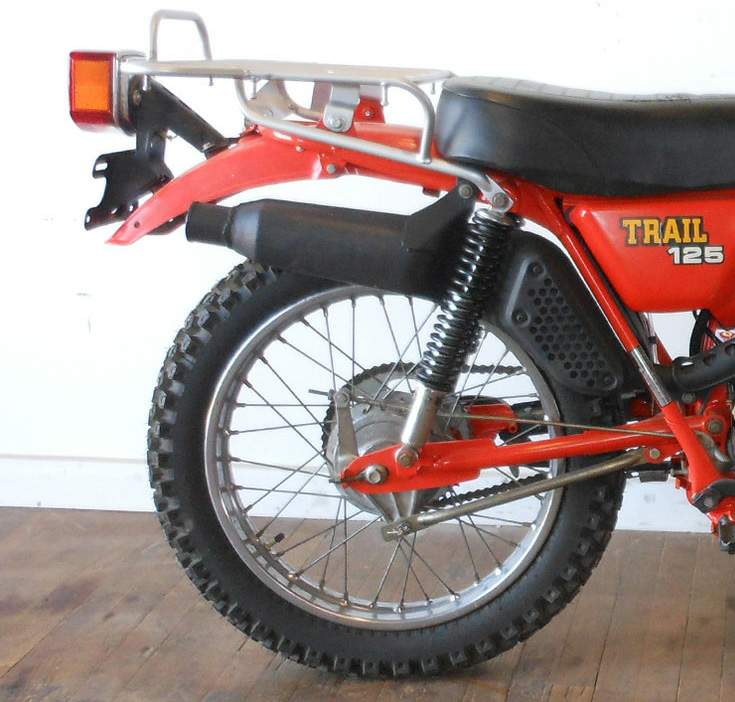

The 1975–1985 Honda CT125 is a 125cc fourstroke motorbike which was designed for farm use. The bike is actually an XL125 with a more 'comfortable' seat. These bikes are very reliable because of the small fourstroke engine. The CT125, which takes its engine from the TL125 with different gear ratios, also has lower gearing than the XL125. The first two gears are spaced very close together for low speed operation.

The CT also came with a chrome rear rack, a steel handlebar/lever protector, engine guard, sidestand guard, a smaller 19" front wheel (XL125 had a 21"), and a unique enclosed chainguard that completely covers the drive chain. The seat is also shorter and the bike is only designed to carry one person, not two. Also specific to the CT125 are the large mudflaps front and rear. The frame is painted Shiny Orange as is the tank and sidecovers. The XL had a black frame. The CT125 also has a welded on bash plate on the bottom of the frame.

The CT125 was also exported to the USA and Canada for 1977 only.
