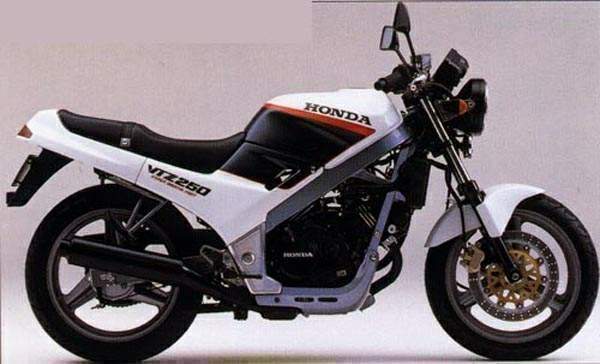

Honda VT 250Z

.



Model

Honda VT 250Z

Year

1984-85

Engine

Four stroke, V-Twin, DOHC, 4 valves per cylinder

Capacity

248 cc / 15.2 cu-in
Bore x Stroke 60 x 44.1 mm
Cooling System Liquid cooled
Compression Ratio 11.0:1

Induction

2x 32mm Keihin carburetors

Ignition

Transistorized
Starting Electric

Max Power

35 hp / 25.5 kW @ 11000 rpm

Max Torque

21.5 Nm / 15.9 lb-ft @ 10000 rpm

Transmission

6 Speed
Final Drive Chain 520 O-ring
Gear Ratio 1st 2.562 (41/16)  2nd 1.850 (37/20)  3rd 1.478 (34/23)  4th 1.240 (31/25)  5th 1.074 (29/27)  6th 0.965 (28/29)
Sprocket Front 14T - Rear  45T
Final Reduction Ratio 3.214

Front Suspension

Air assisted telescopic forks

Rear Suspension

Pro-link air assisted monoshock

Front Brakes

Single disc

Rear Brakes

Drum

Front Tyre

100/90-16 54S

Rear Tyre

120/80-17 61S
Rake 26°30'
Trail 97 mm / 3.8 in
Dimensions

Length 2028 mm / 79.8 in

Width    730 mm / 29 in

Height  1185 mm / 46.7 in

Wheelbase 1385 mm / 54.5 in

Dry-Weight

146 kg / 321.8 lbs

Fuel Capacity

14 Litres / 3.7 US gal

Standing ¼ Mile

15.3 sec / 83 mph

Top Speed

100 mph
