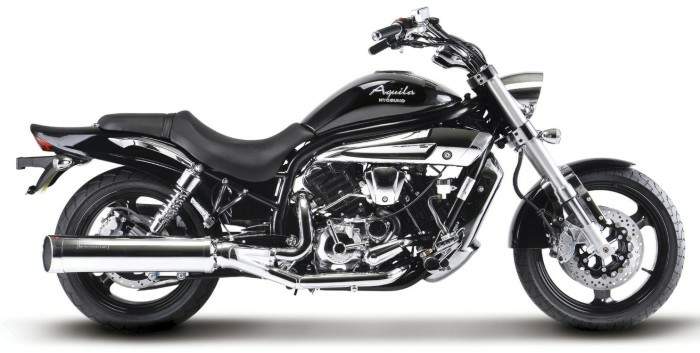

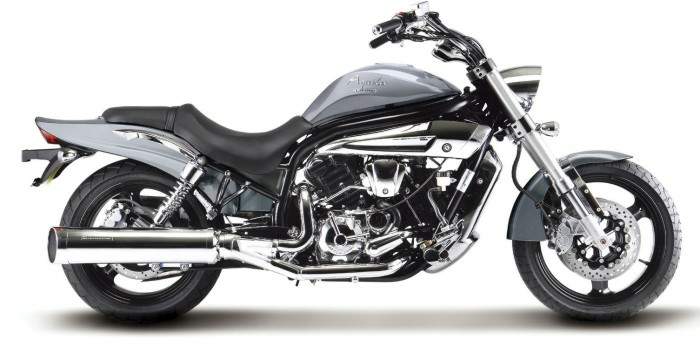

Hyosung GV 650 FI Aquila









Make Model

Hyosung GV 650 FI Aquila

Year

2010

Engine

Four stroke, 90° V twin, DOHC, 4 valve per cylinder.

Capacity

647
Bore x Stroke 81.5 x 62 mm
Cooling Liquid cooled
Compression Ratio 10.3:1
Lubrication Wet sump
Engine Oil Semi-Synthetic, 10W/40

Induction

Fuel injection

Ignition

Digital CDI
Spark Plug NGK, CR8E
Starting Electric

Max Power

72.1 hp / 52.4 kW @ 9000 rpm

Max Torque

61.2 Nm  /  6.28 kgf-m @ 7500 rpm
Clutch Wet, multiple discs, cable operated

Transmission

6 Speed
Final Drive Belt
Frame Steel, double pipe

Front Suspension

41mm upside down forks.

Rear Suspension

Swing arm with Hydraulic Double shock absorber Preload adjustable

Front Brakes

2x 300mm discs

Rear Brakes

Single 230mm disc

Front Tyre

110/70-17 54H

Rear Tyre

180/55-17 69H
Dimensions Length 2040 mm / 80.3 in
Width 840 mm  /  33 in
Height 1155 mm  /  45.2 in
Wheelbase 1665 mm  /  65.5 in
Ground Clearance 160 mm  /  6.2 in
Seat Height 675 mm  /  26.5 in

Dry Weight

218 kg  /  480 lbs
  2322 kg  /  512lbs

Fuel Capacity

15 Litres /  4.2 gal

A true sports cruiser: responsive and a master practitioner even when the heat is on. Upside-down forks ensure that the GV650 Aquila tracks beautifully over all types of road surfaces.

Hand-standing type front fork - Front fork by up-down method is employed to emphasize sports-type design concept, and high strength and excellent road surface following are secured together with rear sober. new is fuel injection.

Electronic VFD instrument panel - Uplift the image as a large size deluxe automobile by employing VFD digital speedometer for the first in the world in cruise type.

Rear Suspension - By use the Double-Shock Absorber for the Dynamic Driving, remove the Body vibration (left/right changes) in Cornering

Belt-driven Drive - Employs semi-permanent belt-driven method which is 3 times superior to the chain-type for the first time in domestic market realizing modesty (anti-noise) and maintenance-free.

Length-control-type foot rest

LED Type Tail & Stop Lamp - LED Type Tail & Stop Lamp for Rear side Visibility and no bulb change maintenance
