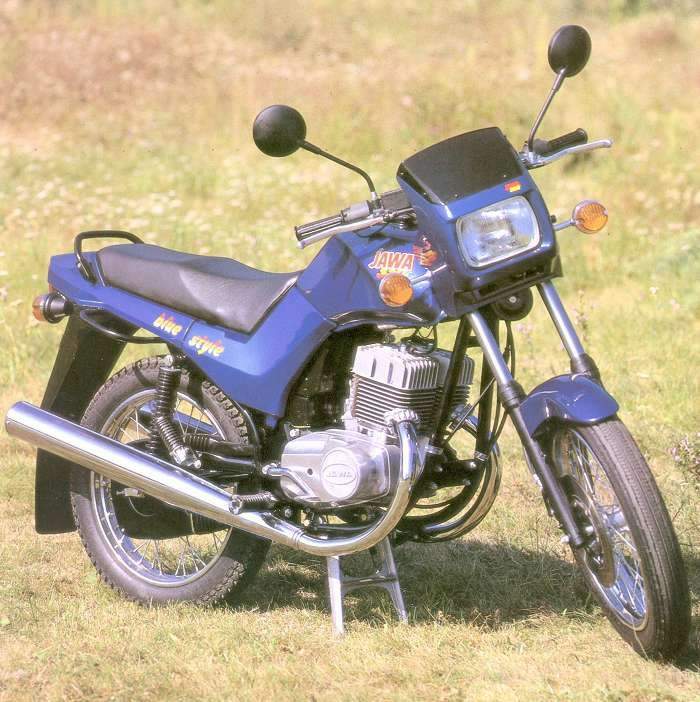

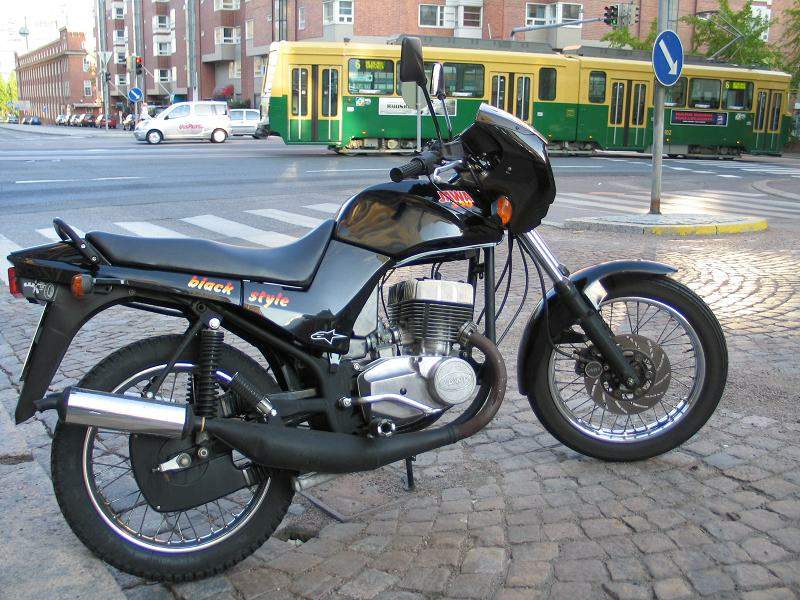

Jawa 350 Style







Make Model.

Jawa 350 Style

Year

1997

Engine

Two stroke, twin cylinder

Capacity

343.5 cc / 20.96 cu in
Bore x Stroke 58 x 65 mm
Compression Ratio 9.8:1
Cooling System Air cooled

Induction

Carburetor

Ignition

TCI (Transistor Controlled Ignition)

Starting

Electric and kick
Spark Plug NGK, B8HS
Clutch Wet, multiple discs, cable operated

Max Power

17.2 kW / 23 hp @ 5250 rpm

Max Torque

32 Nm / 3.26 kgf-m / 23.6 ft.lb @ 4750 rpm

Transmission

4 Speed

Final Drive

Chain

Front Suspension

Hydraulic telescopic forks,

Rear Suspension

Twin shock

Front Brakes

Single Ĝ265 mm disc, single piston caliper

Rear Brakes

Single160 mm disc
Seat Height 810 mm / 31.9"

Top Speed

120 km/h / 74.6 mph
