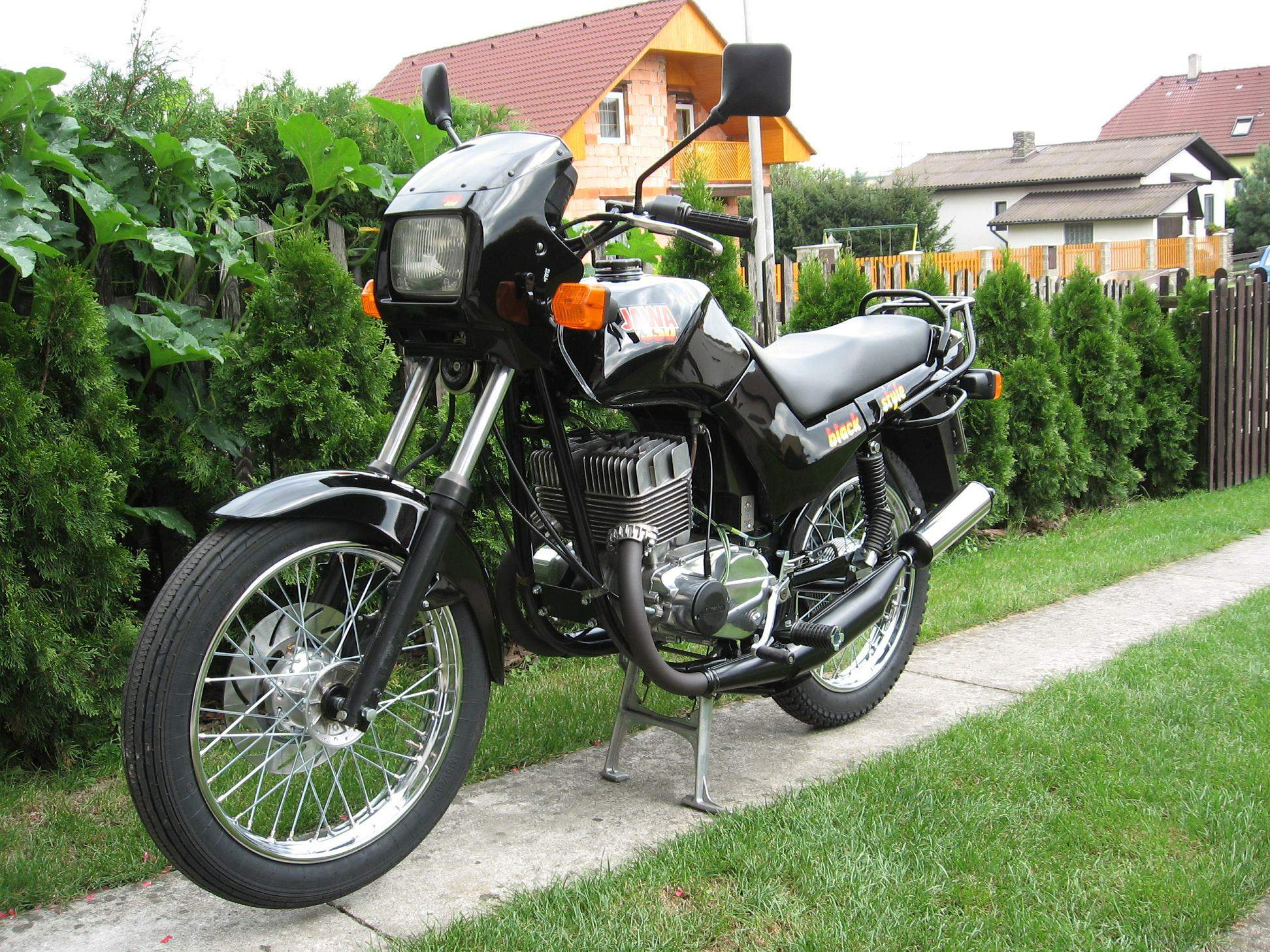

Jawa 640 Black Style

.

Make Model.

Jawa 640 Black Style, White Style, Blue Style, Red Style

Year

1995

Engine

Two stroke, parallel twin

Capacity

343.4 cc / 21.0 cu in
Bore x Stroke 58 x 65 mm
Compression Ratio 9.8:1
Cooling System Air cooled

Induction

Jikov 28-29 CE horizontal carburetor, slide type

Ignition

Magneto VAPE A67 contactless

Battery

12V, 6Ah

Starting

Kick

Max Power

17.2 kW / 23.5 hp @ 5250 rpm

Max Torque

31.4 Nm / 3.2 kgf-m / 23.2 ft.lb @ 4750 rpm

Clutch

Multi disc in oil bath

Transmission

4 Speed

Final Drive

Chain

Gear Ratios

1st 14.50 / 2nd 8.60 / 3rd 6.10 / 4th 4:96:1

Frame

Tubular, double, closed

Front Suspension

Hydraulic telescopic fork, steel spiral springs

Front Wheel Travel

150 mm / 5.9 in

Rear Suspension

Swingarm, hydraulic telescopic in suspension units, spiral springs

Rear Wheel Travel

80 mm / 3.1 in

Front Brakes

Ø265 mm Disc, hydraulic control

Rear Brakes

Ø165 mm Drum, mechanical control

Wheels

Steel, deepened profile, multi-spokes

Front Wheel

2.15 B x 18"

Rear Tyre

2.15 B x 18"

Dimensions

Length: 2100 mm / 82.7 in

Width:     780 mm / 30.7 in

Height:  1160 mm / 45.7 in

Wheelbase

1370 mm / 53.9 in

Ground Clearance

120 mm / 4.7 in

Seat Height

820 mm / 32.3 in

Turning Radius

3.5 m / 11.5 ft

Dry Weight

149 kg / 328 lbs

Wet Weight

162 kg / 357 lbs

GVWR

342 kg / 754 lbs

Fuel Capacity

17 L / 4.5 US gal

Fuel Reserve

2.8 L / 0.74 US gal
