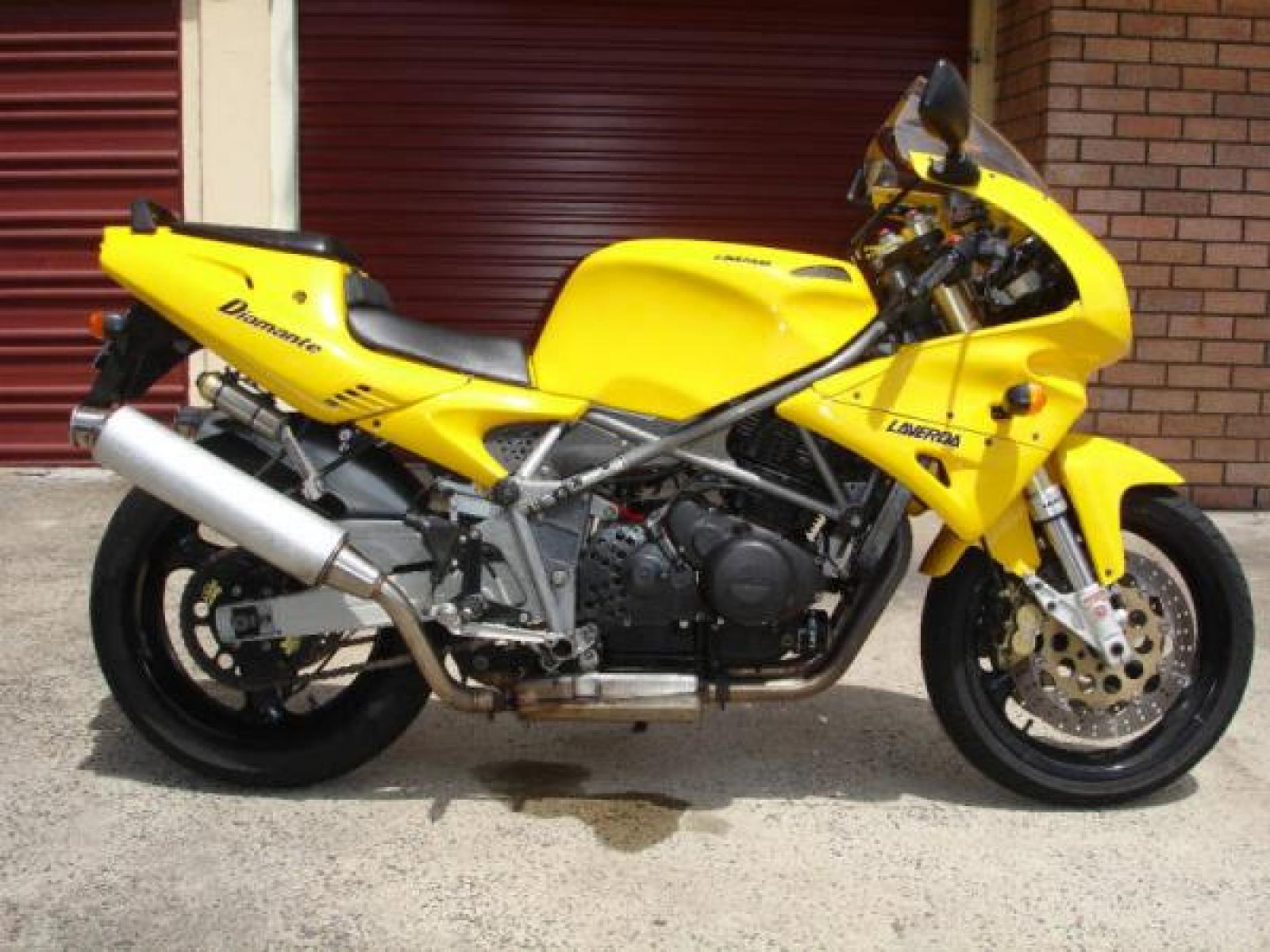

Laverda 668 Diamante







Make Model

Laverda 668 Diamante

Year

1997

Engine

Four stroke, parallel twin cylinder. DOHC, 4 valve per cylinder

Capacity

668 cc / 40.7 cu-in
Bore x Stroke 78.5 x 69 mm
Cooling System Air/oil cooled
Compression Ratio 9.0:1

Induction

Twin Weber-Marelli electronic injection

Ignition

Weber-Marelli electronic
Starting Electric

Max Power

70 hp / 52 kW @ 8000 rpm

Max Power Rear Tyre

65 hp / 48.4 kW @ 7800 rpm

Max Torque

60 Nm / 44.2 lb-ft @ 7000 rpm

Transmission

6 speed
Final Drive Chain

Front Suspension

40mm WP Upside-down forks, adjustable rebound and damping.

Rear Suspension

WP Rising rate adjustable preload, rebound and damping.

Front Brakes

2x 320mm discs 4 piston calipers

Rear Brakes

Single 245mm disc 2 piston caliper

Front Tyre

120/70 ZR17

Rear Tyre

170/60 ZR17

Dry Weight

180 kg / 396.8 lbs

Fuel Capacity

18 Litres / 4.7 US gal
