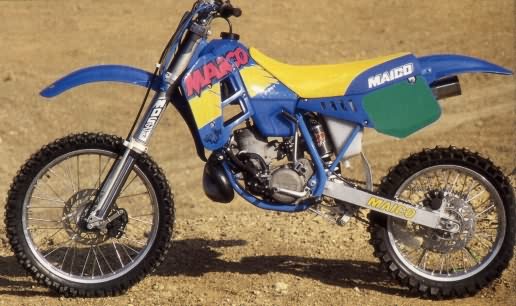

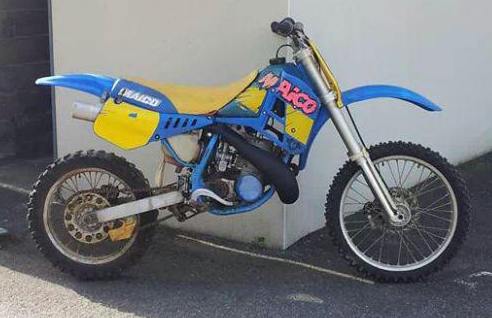

Maico Enduro 320







Make Model

Maico Enduro 320

Year

1989 - 90

Engine

Single cylinder, two stroke

Capacity

318 cc  / 19.4 cub in
Bore x Stroke 76 x 70 mm
Cooling System Liquid cooled
Compression Ratio 14.1:1
Exhaust Single, upswept, right side

Fuel System

Bing 40 oval

Ignition

12V 130W SEM
Starting Kick

Max Power

12.4 kW / 17 hp @ 5400 rpm (restricted)
Clutch Wet, cable operated

Transmission

5-Speed
Final Drive Chain
Frame Chrom Molybdän Rohr

Front Suspension

WP 48
Front Wheel Travel 305 mm / 12.0 in.

Rear Suspension

MAICO Twin link Reiger shock
Rear Wheel Travel 320 mm / 12.6 in

Front Brakes

Single disc, 260 mm, 2-piston caliper

Rear Brakes

Single disc, 220 mm , 1-piston caliper
Wheels Alloy, wire spokes
Front Rim 3.00 x 21 in.
Rear Rim 4.10 x 18 in.
Wheelbase 1480 mm / 58.3 in.
Ground Clearance 388 mm / 15.3 in.
Seat Height 960 mm / 37.8 in.

Wet Weight

105 kg / 232 lbs

Fuel Capacity

10 L / 2.6 US gal
Top Speed 100 km/h / 62 mph
