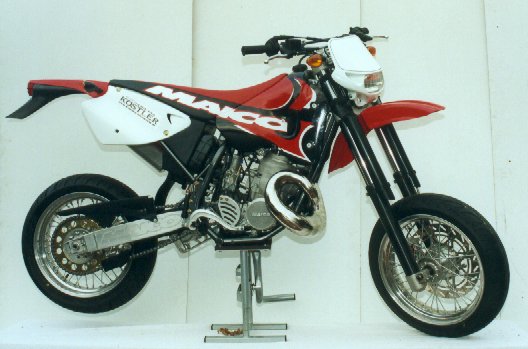

Maico Supermoto 500







Make Model

Maico Supermoto 500

Year

2001 - 14

Engine

Single cylinder, two stroke

Capacity

499 cc / 30.5 in.
Bore x Stroke 86.5 x 85 mm
Cooling System Liquid cooled
Fuel System Mikuni TMX 38
Exhaust Single, upswept, right side

Ignition

12V 130W SEM / PVL digital
Starting Kick

Max Power

50 kW / 67 hp
Clutch Wet, multidisc

Transmission

5-Speed
Final Drive Chain
Frame Chrome Molybdän Rohr

Front Suspension

White Power Extreme 50
Front Wheel Travel 305 mm / 12.0 in.

Rear Suspension

Maico twin link WP
Rear Wheel Travel 320 mm / 12.6 in

Front Brakes

Single disc, 320 mm, 4-piston calipers

Rear Brakes

Single disc, 220 mm, 1-piton calipers
Wheels Steel, laced wire spokes
Front Rim 3.50 x17 in.
Rear Rim 4.25 x 17 in.

Front Tyre

120/70-17 in

Rear Tyre

160/60-17 in
Wheelbase 1480 mm / 58.3 in.
Ground Clearance 358 mm / 14.1 in.
Seat Height 930 mm / 36.6 in

Dry Weight

101 kg / 223 lbs
Wet Weight 111 kg / 245 lbs

Fuel Capacity

9.5 L / 2.5 US gal
Top Speed 170 km/h / 106mph
