Matchless Silver Hawk



Make Model

Matchless Silver Hawk

Year

1931 - 35

Engine

V-four cylinder, OHC

Capacity

592 cc / 38.1 cub in.

Bore x Stroke

50.8 x 73 mm

Cooling System

Air cooled

Compression Ratio

6.1:1

Lubrication

Dry sump with fabric oil filter

Oil Capacity

2.3 L / 4.9 US pints

Exhaust

Two-into-one, chrome

Fuel System

Amal

Ignition

Lucas dynamo coil

Starting

Kick

Transmission

4-Speed, Sturmey Archer gearbox

Final Drive

Chain

Maximum Power

19 kW / 26 hp

Frame

Brazed lug tubular construction incorporating cantilever rear suspension

Front Suspension

Matchless centre spring girders, finger adjustment

Rear Suspension

Cantilever

Front Brakes

203 mm / 8 in. drum, interconnected

Rear Brakes

203 mm / 8 in. drum, interconnected

Wheels

Steel, wire spokes

Front Tyre

3.25 x 19 in.

Rear Tyre

1958: 3.25 x 19 in. (4.00 x 19 available as an option)

Wheelbase

1422 mm / 56 in.

Wet Weight

172 kg / 380 lbs

Fuel Capacity

11.4 L / 3.0 US gal

Average Consumption

3.6 L/100 km / 28 km/l / 65 US mpg

Top Speed

137 km/h / 85 mph

Colours

Black with gold striping and chrome/white tank panels

Source Manuk.de

What a fascinating display must have met the eyes of the visitor to the Olympia Motor Cycle Show in November 1930. Virtually every manufacturer had something new and exciting (New Hudson, for example, had completely revamped their range from head to toe), and there was not just one totally new British four-cylinder to be seen, but two! We met one of the new 'fours' earlier in this book, in the shape of the Ariel Square Four. Now meet its rival, the Matchless Silver Hawk which was, or so the makers claimed in their sales literature, 'unquestionably the most fascinating machine to ride that has ever been built. It combines the silence, smoothness and comfort of the most expensive motor car with a super-sports performance. On top gear alone the machine will run from as low as 6 miles per hour to over 80 miles per hour, while the acceleration given by the four-cylinder overhead camshaft engine in conjunction with the four-speed gearbox must be experienced to be believed.'

That says it all, really. But for all its proclaimed virtues, the Matchless Four did not exactly take the world by storm, and after struggling on for a few seasons, it was quietly dropped from the range in 1935. No discredit to the bike itself, of course, but these were the Hungry 'Thirties, the years of the Great Depression and the money was scarce. There was possibly enough of a market to support one luxury four-cylinder model, but not two. In a head-on battle for sales, the Ariel Square Four won, and the rival Matchless Silver Hawk lost out.

Still, the Hawk was quite an imaginative design, and for all its resemblance to the Square Four it was actually a narrow-angle vee-four much in common with the same factory's Silver Arrow monobloc twin of the previous year. There was just one crankshaft set across the frame and, unusually, it had a centre bearing mounted in a plate - a feature that would be repeated a couple of decades later in the AJS and Matchless vertical twins.

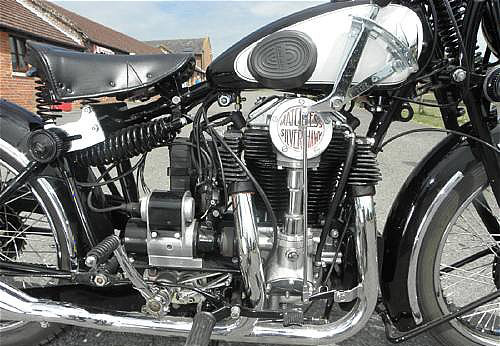

A single overhead camshaft ran across the cylinder head, driven at the right-hand side by a substantial shaft and bevel-gear arrangement. Ignition was by dynamo and coil, the dynamo being driven by skew gearing from the camshaft-drive vertical shaft. The oiling system was dry-sump, with the oil carried in a pressed-steel tank at the base of the front-down tube, bolted directly to the engine's crankcase.

The frame was the one which also housed the smaller vee-twin, and featured cantilever rear springing in which the rear sub-frame pivoted in Silentbloc rubber-bonded bushes behind the gearbox. Two compression springs were mounted under the saddle, and damping was by friction discs, controlled by a knob. Brakes were coupled 8 in. diameter, meaning that both front and rear drums came into operation if the brake pedal was pressed, but the handlebar lever operated the front brake alone.

In the years ahead, Matchless carried out very little development on the Silver Hawk, except that in its final period a foot gearchange was available to option at £1 10s extra, and it seemed almost as though they themselves had little faith in it. Perhaps they hadn't: when 'Torrens' of the Motor Cycle (editor Arthur B. Bourne) wanted to buy a new Silver Hawk in 1935, the makers advised him to go and buy an Ariel instead. Which he did....

From: 'Classic British Motorcycles Of Over 500cc' by Bob Currie
