SYM ComBiz 125











Make Model

SYM ComBiz 125

Year

2014

Engine

Single cylinder, 4-stroke, 2V, SOHC

Capacity

124.6 cc / 7.6 cub in.

Bore and Stroke

57 x 48.8 mm

Compression Ratio

11.2:1

Cooling System

Air cooled, forced

Engine Oil Capacity

1.0 L / 2.1 US pints

Transmission Oil Capacity

0.11 L / 0.23 US pints

Lubrication

Dry sump

Exhaust

Single

Fuel System

Carburetor (CV)

Induction

Electronic

Ignition

CDI

Battery

12V, 8 Ah (MF)

Starting

Electric

Spark Plug

NGK CR7 HSA

Clutch

Centrifugal

Maximum Power

7.5 kW / 10.2 hp @ 8000 rpm

Maximum Torque

9.9 Nm / 1.01 kgf-m / 7.30 ft/lb @ 6000 rpm

Transmission

CVT

Final Drive

Belt

Frame

Pipe under bone, steel

Front Suspension

Telescopic fork

Front Wheel Travel

100 mm / 3.9 in

Rear Suspension

Twin sided swing arm, adjustable dampers

Rear Wheel Travel

91 mm / 3.6 in.

Front Brakes

Single hydraulic disc, 180 mm

Rear Brakes

Drum, 130 mm

Wheels

Aluminium

Front Tyre

100/90-10 56J

Rear Tyre

100/90-10 56J

Dimensions

Length:  1920 mm / 75.6 in.

Width:      680 mm / 26.8 in.

Height:   1080 mm / 42.5 in.

Wheelbase

1380 mm / 54.3 in.

Turning Diameter

4370 mm / 14.3 ft

Ground Clearance

120 mm / 4.7 in.

Seat Height

750 mm / 29.5 in.

Wet Weight

118 kg / 260 lbs

Fuel Capacity

5.5 L / 1.5 US gal

Average Fuel Consumption

2.1 L /100 km / 47 km/l / 111 US mpg

Top Speed

90 km/h / 66 mph

Colours

White, Red, Black, grey

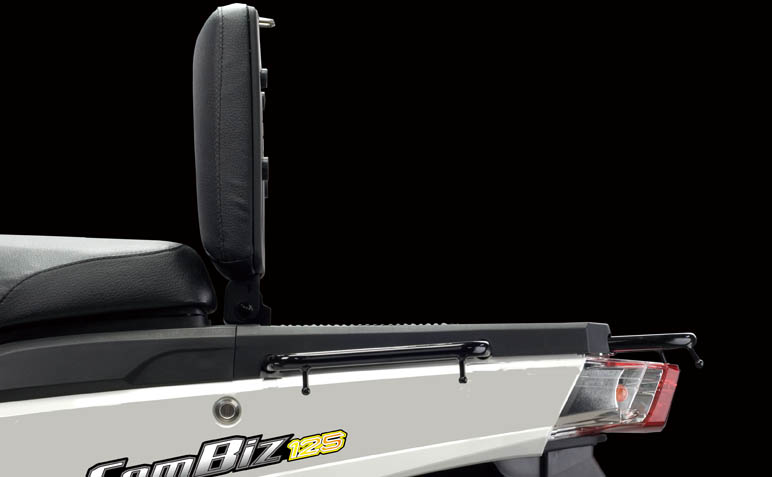

Designed for the business purpose, SYM presents ComBiz to cater to the needs of busy business market. ComBiz is named from the Spanish “Combi”, which means to carry freights. Under the meaning of its name, it is equipped with the unique exclusive dual-function foldable rear seat, which is the specialty for ComBiz has additional space for cargos after adjusting rear-seat upright. Besides, it also has many convenient designs such as large leg/goods room (410mm), independent front luggage under seat compartment and baggage hook.



Moreover, the ergonomic design creates comfortable riding position for riders, and convenient main stand, which is that even the house wives can use it easily. How marvelous and practical it is! ComBiz is your helper in life, also helps your business become more!
