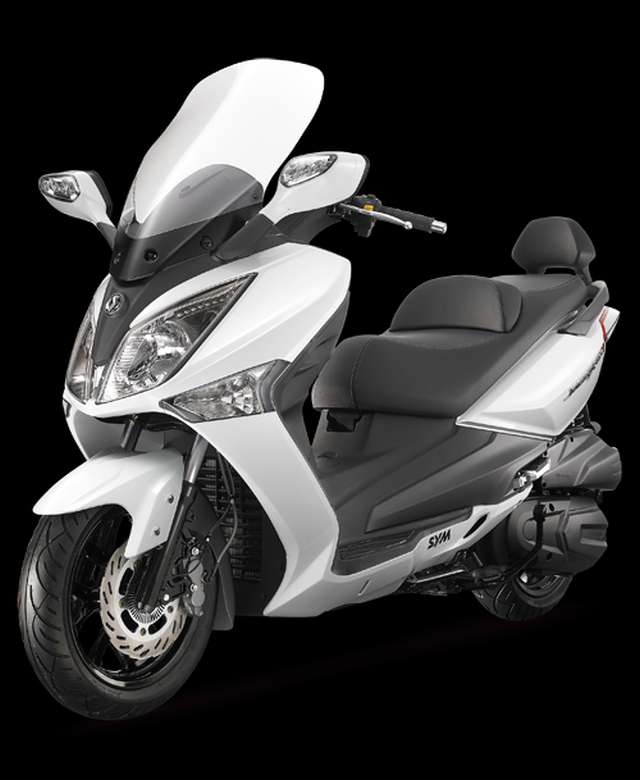

SYM GTS/Joymax 300i evo







Make Model

SYM GTS/Joymax 300i evo

Year

2014

Engine

Single cylinder, 4-stroke, 4-valve, SOHC, FI

Capacity

263.7 cc / 16.1 cub in.
Cooling System Liquid cooled
Compression Ratio 10:1
Lubrication Dry sump
Engine Oil Capacity 1.4 L / 3 US pints
Transmission Oil Capacity 0.18 L / 0.4 US pints
Exhaust Single

Fuel System

EFI (C.L.)

Induction

Electronic

Ignition

CDI
Spark Plug NGK CR 8E
Battery 12V 10 Ah
Starting Electric

Max Power

17.2 kW / 23.3 hp @ 7500 rpm

Max Torque

24.1 Nm / 2.04 kgf-m / 17.8 ft/lbs @ 5500 rpm
Clutch Centrifugal, dry type

Transmission

CVT
Final Drive Belt
Frame High strength steel, pipe under bone

Front Suspension

Telescopic fork

Rear Suspension

Twin sided swing arm

Front Brakes

Hydraulic disc, 240 mm, ABS

Rear Brakes

Hydraulic disc, 220 mm, ABS
Wheels Aluminium alloy
Front Rim 2.75 x 13 in.
Rear Rim 3.50 x 13 in.

Front Tyre

110/90-13 56P tubeless

Rear Tyre

130/70-13 57P tubeless

Dimensions

Length:  2165 mm / 85.2 in.

Width:      870 mm / 34.3 in.

Height:   1395 mm / 54.9 in.

Wheelbase 1495 mm / 58.9 in.
Ground Clearance 135 mm / 5.3 in.
Seat Height 755 mm / 29.7 in.
Wet Weight 190 kg / 419 lbs

Fuel Capacity

12 L / 3.2 US gal

Average Consumption

4 L/100km / 25 km/l / 59 US mpg

Top Speed 128 km/h / 80 mph
Climbing Ability 27°
Colours Black, Silver, Grey, White, Matt grey, Dark grey





GTS 125 / 250 / 300 EVO: With the great success of GTS 250, SYM decide to develop a higher standard version. The major improvement is to tune up GTS 250 to GTS 300.



Moreover, we changed its appearance from single head light to twin head light. That is not only for powerful looks but also provides better vision in the dark.



To sum up, several outstanding features of GTS EVO are as follows:

1. Level up: GTS has been modified from 250 up to 300.

2. Fashionable look: Large twin head light as phoenix eye lighting its unique style.

3. Excellent handling: 1440 mm a long wheel base length, it offers high stability for high speed.

4. Large storage: luggage box is able to accommodate two helmets.

5. Convenience: Various convenience designs such as pop up fuel cap, electronic seat opener, coin box etc.
