Bakker BMW R1150GS







Make Model

Bakker BMW R1150GS

Engine

Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder

Capacity

1130 cc / 68.9 in

Bore x Stroke 101 x 70.5 mm
Compression Ratio 10.3:1
Cooling System Air/oil cooled

Induction

Fuel injection

Ignition

Electronic ignition MA 2.2 Bosch Motronic

Starting

Electric

Max Power

62.5 kW / 85 hp @ 6750 rpm (rear tyre 58.9 kW 79 hp @ 6750 rpm)

Max Torque

98 Nm / 9.99 kgf-m / 71 lb.-ft  @ 5250 rpm

Transmission

6 Speed

Final Drive

Shaft

Front Suspension

Light telelever with central spring strut, progressive coil spring, twin-tube gas-filled shock

Rear Suspension

Patented BMW Paralever swing arm & shaft drive, single shock with variable rebound damping

Front Brakes

2 x 304mm discs, 4-piston calipers

Rear Brakes

Single 276 mm disc, 2-piston caliper

Front Tyre

110/80 R19

Rear Tyre

150/70 R17

Fuel Capacity

22.1 Litres / 5.8 US gal

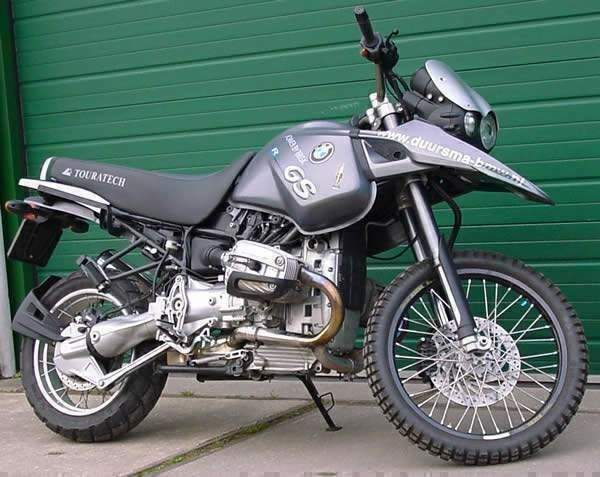

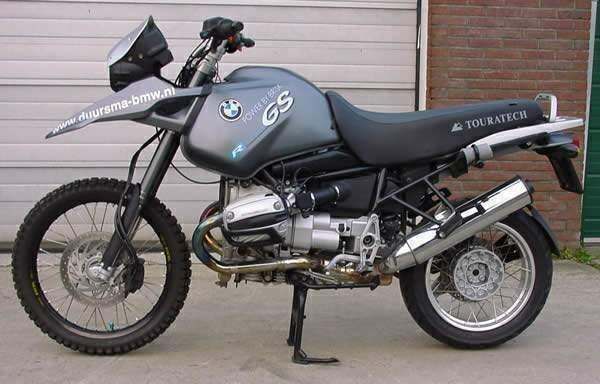

For this BMW GS1150 a special kit has been developed in cooperation with BMW-dealer Bert Duursma from Apeldoorn. This kit allows you to take your BMW Off Road. The kit consists of a specially designed frontframe which replaces the entire original system, a long 'Off Road' WP front fork, an aluminium rearframe and a WP rear shock-absorber. You can also choose between the original spoke and the optional special spoke wheels.
