Benelli BN 600R







Make Model

Benelli BN 600R

Year

2015

Engine

Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder

Capacity

600 cc / 36.6 cu in
Bore x Stroke 65 x 45,2 mm
Cooling System Liquid cooled
Compression Ratio 11.5:1
Lubrication Wet sump

Induction

Electronic injection with 4 throttle bodies, 38 mm
Exhaust With catalytic converter and oxygen sensor
Spark Plug NGK CR9E

Ignition

Electronic injection, 38 mm throttle bodies
Electric Electric

Max Power

60 kW / 82 hp @ 11000 rpm

Max Torque

55.5 Nm / 5,66 kgf-m / 41 lb-ft @ 8000 rpm

Clutch Wet clutch with hydraulic command

Transmission

6 Speed
Final Drive Chain
Primary Drive 44/82
Gear Ratio 1st 2.846 / 2nd 1.947 / 3rd 1.556 / 4th 1.333 / 5th 1.190 / 6th 1.083:1
Final Drive Ratio 3.286
Frame

Decomposable frame, front steel trestle, rear aluminium alloy casting

Rake

24

Trail

96 mm / 3.8 in

Front Suspension

50 mm Upside-down forks
Front Wheel Travel 120 mm / 4.7 in

Rear Suspension

Rear swing arm in aluminum alloy, rear shock absorber with extension hydraulic and spring preload adjustment

Rear Wheel Travel 123 mm / 4.8 in

Front Brakes

2 x 320 mm floating discs,  4 piston caliper

Rear Brakes

Single 240mm disc, 2 piston caliper
Wheels Aluminum alloy
Front Wheel 17 x 3.50 DOT-D
Rear Wheel 17 x 5.50 DOT-D

Front Tyre

120/70-ZR17 58W

Rear Tyre

180/55-ZR17 73W
Dimensions Length: 2160 mm / 85.0 in
Width:     800 mm / 31.5 in
Height: 1180 mm / 46.5 in
Wheelbase 1480 mm / 58.2 in
Seat Height 800 mm / 31.5 in
Ground Clearance 180 mm / 7.1 in
GVWR 410 kg / 904 lbs
Dry Weight 208 kg / 459 lbs
Wet Weight 220 kg / 485 lbs

Fuel Capacity

15 Litres / 4.0 US gal

Fuel Reserve

3 Litres / 0.8 US gal

Colours

Black, Red, Gold

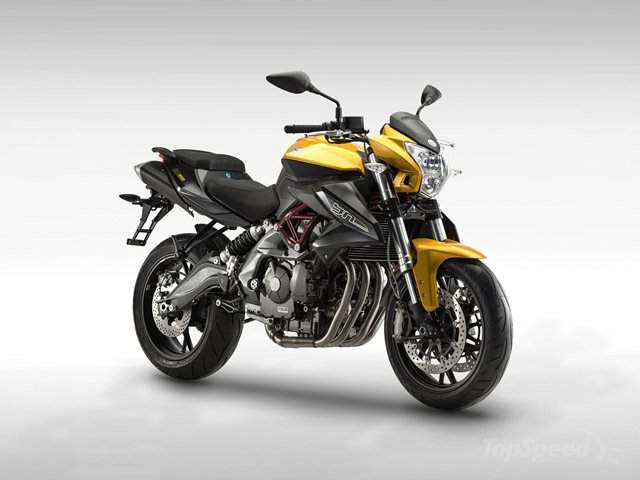

The Benelli 600R is a versatile motorcycle that feels similarly comfortable both on the track but also in the city.

The BN 600R recently hit the world market and gained instant acclaim as being a great value performing naked sports bike. Test rides across the world confirmed it is a true performer out on twisty roads, track rides and yet refined enough for a city commute.

The motorcycle features a tasty Italian style which is combined with first class components such as Marzocchi 50 mm front forks, Sachs adjustable rear suspension, Brembo calipers, fully braided steel brake lines and Metzler Sportec M5 tyres.

Power comes from a 600 cc, 4 cylinders in line, 4-stroke, liquid cooled engine with 4 valves per cylinder and double overhead camshaft. The unit rewards you with a maximum output of 60 KW (82 Cv) at 11500 rpm and 52 Nm (5,3 Kgm) of torque at 10500 rpm. The engines power is kept in leash by a six speed gearbox.
