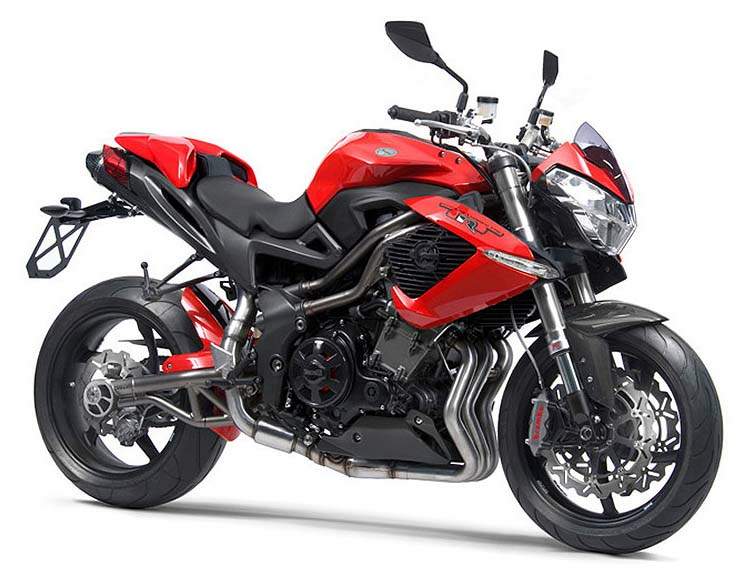

Benelli Tornado Naked Tre 1130R









Make Model

Benelli Tornado Naked Tre 1130R

Year

2015

Engine

Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder

Capacity

1131 cc / 69 cu in
Bore x Stroke 88 x 62 mm
Cooling System Liquid cooled
Compression Ratio 12.5:1
Lubrication Wet sump

Induction

Electronic injection with 1 injector per cylinder
Exhaust With catalytic converter and oxygen sensor
Spark Plug NGK CR9E

Ignition

Electronic injection
Electric Electric

Max Power

116 kW / 157,8 hp @ 10200 rpm

Max Torque

120 Nm / 12.2 kgm / 88.5 lb-ft @ 8400 rpm
Clutch Wet clutch with hydraulic command

Transmission

6 Speed
Final Drive Chain drive, ratio 16:37
Primary Drive 44/79
Gear Ratio 1st 14/39 / 2nd 18/35 / 3rd 21/32 / 4th 23/30 / 5th 24/28 / 6th 26/27
Frame

Decomposable, front steel trestle, rear aluminium alloy casting

Front Suspension

50mm upside-down fork, with hydraulic rebound / compression and spring preload adjustments
Front Wheel Travel 120 mm / 4.7 in

Rear Suspension

Steel tube trestle swingarm, rear dumper with hydraulic adjustment (rebound, high and low speed compression) and spring preload assembled with progressive link

Rear Wheel Travel 120 mm / 4.7 in

Front Brakes

2x 320mm discs 4 piston caliper

Rear Brakes

Single 240mm disc 2 piston caliper

Front Tyre

120/70-17

Rear Tyre

190/50-17
Dimensions

Length: 2100 mm / 82.7 in

Width:      790 mm / 31.1 in
Height:   1050 mm / 41.3 in

Wheelbase 1442 mm / 56.8 in
Seat Height 830 mm / 32.7 in
Ground Clearance 135 mm / 5.3 in

Dry Weight

205 kg / 452 lbs
Wet Weight 215 kg / 474 lbs

Fuel Capacity

16 Litres / 4.2 US gal

Racing proud. TNT R, the most sporty Benelli bike does not come to a compromise and has now totally new looks matt grey. Absolute power and performance are its winning features to tackle the racetrack as well as the urban roads. TNT R is an hymn to performance.

The engine of TNT R is the legendary in line triple which characterises the whole TNT range. The engine delivers here its maximum power and full riding potential with no restrictions to comfort: 157,8 hp (116 kW) @ 10200 rpm. and 120 Nm (12,2 kgm) of torque @ 8400 rpm. The features of the Benelli triple allow effective response at medium revs as a very few engines can do.

Gearbox 6 speed with final chain drive, dry clutch with hydraulic command and anti-skipping device to prevent skidding are additional features of TNT R. The exhaust manifolds follow precisely the engine lines till the compact tail guard. The catalyst and the exhaust perfectly abate the noxious emissions and optimise the power supply at any speed.

TNT R chassis makes a difference too: frame is made up of a trestle steel front and adjoining rear aluminium alloy cast. The shock absorbers are the best available on the market for racing use: the Marzocchi upside-down fork 50mm fully adjustable and the ZF Sachs rear shock, also fully adjustable, to increase the performance of the rear suspension and allow TNT R to express all its riding power.

The front tyre size is 120/70 and, at the rear, the rider can choose between 190/50 - series tyre - and two further sizes, 180/55 and 200/50, the latter especially indicated for racing. Tyres are mounted onto light and sporty aluminium alloy rims.

The braking system is up the performances of TNT R: the two front wave discs 320 mm are matched with the Brembo radial calipers, emblem of absolute efficiency, lightness and power, operated by a Brembo radial pump. At the rear there is a wave disc 240 mm with twin piston Brembo brake caliper. The wheel base is a real racing feature: 1.443 mm, which means agility in the mixed terrain, quickness  through the bends, bags of emotions under any condition. The dry weight is of only 205 Kgs.

Besides the new colour, TNT R is released also in white combined with red frame, elegant and undisputably sporty at the same time.

TNT R has truly unique accessories, such as: carbon muffler, handlebar ends in ergal, frame sliders, racing tank filler, carbon single-seat tail, motorbike covers and semi-rigid panniers.
