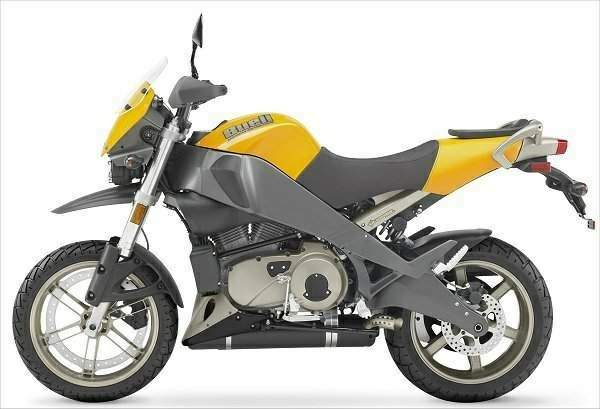

Buell XB12X Ulysses Adventure



Make Model.

Buell XB12X Ulysses Adventure

Year

2006 - 07

Engine

45° V-Twin, four stroke, pushrod actuated overhead valve, hydraulic self-adjusting lifters, 2 valve per cylinder.

Capacity

1203 cc / 73 cu in
Bore x Stroke 88.9 x 96.8 mm
Compression Ratio 10.0:1
Cooling System Air cooled
Lubrication Dry sump
Exhaust Buell InterActive Exhaust

Induction

Ø49 mm downdraft DDFI II fuel injection

Starting

Electric

Battery

12V, 12Ah

Max Power

86.9 kW / 103 hp @ 6800 rpm

Max Torque

114 Nm / 11.6 kgf-m / 84 ft-lbs @ 6000 rpm

Clutch

Wet, multi-plate

Transmission

5 Speed

Final Drive

Belt

Gear Ratios

1st 2.648 / 2nd 1.892 / 3rd 1.407 / 4th 1.166 / 5th 1.000
Frame Aluminium frame with Uniplanar™ Powertrain vibration isolation system, fuel in frame

Rake

22°

Trail

122 mm / 4.8"

Front Suspension

Showa Ø43 mm inverted forks compression damping, rebound damping and spring preload adjustable

Front Wheel Travel

165 mm / 6.5"

Rear Suspension

Showa coil-over monoshock, remote underseat reservoir and adjustable compression damping, rebound damping and spring preload

Rear Wheel Travel

163 mm / 6.4"

Front Brakes

ZTL type brake, 6 piston, fixed caliper, Ø375 mm single-sided, inside out, stainless steel, floating rotor

Rear Brakes

Single Ø240 mm disc, 1 piston floating caliper

Wheels

6-Spoke, ZTL cast aluminium

Front Wheel

3.50 x 17"

Rear Wheel

5.50 x 17"

Front Tyre

120/70 R17 Dunlop D616F

Rear Tyre

180/55 R17 Dunlop D616

Dimensions

Length: 2159 mm / 85.0"

Width:     755 mm / 29.7"

Height:  1331 mm / 52.4"

Wheelbase 1372 mm / 54.0"
Ground Clearance 171 mm / 6.75"
Seat Height 841 mm / 33.1"

Dry Weight

193 kg / 425 lbs

GVWR

430 kg / 950 lbs

Fuel Capacity

16.7 L / 4.4 US gal

Fuel Reserve

3.1 L / 0.82 US gal

Oil Capacity

2.37 L / 2.50 qts

Standing ¼ Mile

12.8 sec

Top Speed

202 km/h / 126 mph
Reviews Motorbikes TodayMotocorse / Momenridersnow.com / MMotorline.cc / MC24.no

The Buell Ulysses XB12X is an all-new Adventure Sportbike designed to deliver capable performance on unpaved roads while retaining legendary Buell handling and thrust on pavement. Long-travel suspension, specific tires, an upright seating position and innovative Triple Tail luggage and passenger accommodations make the Buell Ulysses one of the most versatile sport motorcycles available today.

CHASSIS:

The Ulysses chassis was designed specifically to work well on paved and unpaved roads. Fork rake is 22 degrees, while the wheelbase is 54 inches, a combination that provides nimble, playful handling and a roomy cockpit for the rider and passenger. As on Buell Lightning and Firebolt models, Ulysses carries fuel in its rigid aluminum frame, while the lightweight aluminum swingarm doubles as the oil reservoir. Fuel capacity is 4.4 gallons. The engine-air intake vent is integrated into the fuel cap cowling, and a left side vent feeds cooling air to the rear cylinder.

ADVENTURE SPORT SUSPENSION:

The Buell Ulysses features premium Showa suspension components front and rear. A 43mm Showa inverted fork has adjustable compression damping, rebound damping and spring preload. Front suspension travel is 6.5 inches. A Showa coil-over mono-shock on the rear has a remote, under-seat reservoir and adjustable compression damping and rebound damping. Rear spring pre-load can be adjusted without tools using a control dial located below the left side of the seat. Rear suspension travel is 6.4 inches. Ground clearance is 6.75 inches.

CATEGORY-LEADING POWER AND WEIGHT:

The Buell Ulysses has a dry weight of just 425 pounds. Its design centralizes mass and lowers the center of gravity to help the Ulysses feel nimble and responsive on paved and unpaved roads. The air/oil/fan-cooled Buell Thunderstorm 1203 V-Twin engine leads this category with 103 peak horsepower and 84 ft. lbs. of torque. The engine features Buell DDFI II fuel injection and Buell InterActive Exhaust for instant throttle response and a broad powerband.

SPECIFIC WHEELS AND TIRES:

New Dunlop D616 tires designed specifically for Ulysses feature an open, aggressive tread pattern that performs well on paved and unpaved roads. Front tire size is 120/70R-17. Rear tire size is 180/55R-17. Six-spoke, cast-aluminum wheels feature a durable rim design to handle the unique challenges of adventure-sport riding.

ADVENTURE SPORTBIKE ERGONOMICS:

The Buell Ulysses offers the rider a roomy seating position and roomy bar/pegs/seat relationship for outstanding control and all-day comfort. The wide, upright handlebars feature a crossbrace. Alloy footpegs are placed in a neutral position and are wider with an aggressive surface. The wide, comfortable seat features a two-tone, textured surface and is shaped to offer ease of rider movement for sport riding on pavement. Seat height is 33.1 inches.

NEW TRANSMISSION:

A new transmission design offers improved shift quality, reduced noise and extended service intervals. This transmission replaces moving/sliding gears with thin steel "dog rings" that slide to effect gear changes, a design commonly used in automotive racing gear boxes. Shifting is quicker because the dog rings have less mass than gears. New helical-cut gears are smoother and quieter than straight-cut gears. The new transmission enables reduced clutch effort. New Formula + Oil extends the service intervals for the primary/transmission lubricant to 10,000 miles. Finally, a durable new Goodyear Hibrex 135-tooth final drive belt with Flexten Plus technology designed specifically for Ulysses requires no scheduled service or replacement.

TWO-PIECE WINDSCREEN:

Designed to minimize air turbulence in the rider cockpit area, the Ulysses features a clear windscreen mounted over an opaque flyscreen. The gap between the windscreen and the flyscreen directs a limited amount of air into the cockpit area, effectively reducing turbulent air for a more comfortable ride. The clear windscreen features a quick-release mounting system so it can be easily removed. Additional rider comfort is provided by handlebar-mounted deflectors.

BUELL TRIPLE TAIL:

The three-position Buell Triple Tail may be configured as a luggage rack or a passenger backrest. In its first, mass-centralized position, the Triple Tail folds forward over the rear-seat position to become a luggage rack that can be used with integrated tie-down hooks. In its second, vertical position, Triple Tail becomes a flexible passenger backrest with grab rails. In its third position, Triple Tail is a luggage rack extending toward the LED tail lamp and full-coverage rear fender, with the grab rails also available for a passenger.

CONVENIENCE/FUNCTION:

In addition to the Triple Trail, the Buell Ulysses features a generous under-seat storage compartment and an integrated helmet lock. A 10 amp/12 volt accessory power outlet is located on the dash, with another placed under the seat. Color-matched side cases and top case will be available for the Ulysses and a Global Positioning Satellite (GPS) receiver will be available in Fall 2005
