CCM 404 DS Supermoto







Make Model.

CCM 404 DS Supermoto

Year

2008 - 09

Engine

Four stroke, single cylinder, DOHC, 4 valves

Capacity

398 cc / 24.3 cu in
Bore x Stroke 90 x 62.6 mm
Compression Ratio 12.2:1
Lubrication System Dry sump
Cooling System Liquid cooled

Exhaust

Stainless steel with stainless steel silencer

Induction

Keihin FCR 39

Ignition

Electronic CDI

Starting

Electric

Battery

YUASA 6.5 Ah

Max Power

39.5 kW / 53 hp @ 7000 rpm

Transmission

5 Speed

Final Drive

Chain, 520 Heavy duty, O-ring

Frame

Aluminium triple box, swingarm

Rake

26.8°

Trail

84 mm / 3.3"

Front Suspension

WP 48mm adjustable for compression and rebound

Front Wheel Travel

275 mm / 10.8"

Rear Suspension

WP PDS adjustable for compression, rebound and preload

Rear Wheel Travel

256 mm / 10.1"

Front Brakes

Single 320 mm disc, Brembo 2 piston caliper

Rear Brakes

Single 200 mm disc, Brembo 1 piston caliper

Front Tyre

120/70-17

Rear Tyre

150/70 -17
Wheelbase 1500 mm / 59.1 in
Ground Clearance 352 mm / 13.9"
Seat Height 950 mm /  37.4 in

Dry Weight

124 kg / 273.4 lb

Fuel Capacity

11 L / 2.9 US gal

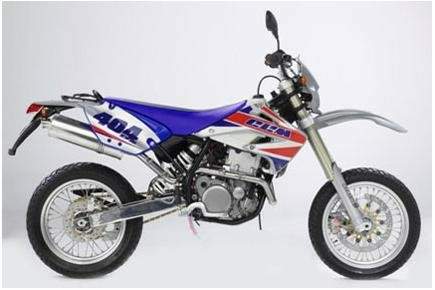

404 DS Supermoto is produced by CCM, one of the famous British motorcycle manufacturers that has a rich racing experience.

This bike features high quality components from famous bike part manufactures. Braking performance features Brembo on 17″ front and rear wheels, a 280 mm disc with single piston up front and a 260 mm disc with single piston at rear. WP suspensions come on a 43mm upside down forks and PDS shock absorber. At least based on its brakes and suspension this bike is nearly KTM’s quality.

Powering this bike is a liquid cooled 398cc engine,1 cylinder, 4 stroke, DOHC, with high compression ratio of 12.2:1. Fed by a FCR39 Keihin carburetor, this bike also equipped with a electric starter.

2009 CCM 404 DS Supermoto is really light with only dry weight of 128kg. One of the reason may a frame tubular steel oil in frame that is light.
