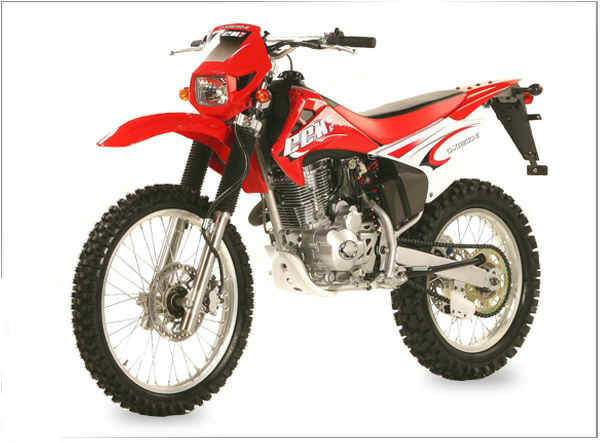

CCM C-XR 230E









Make Model.

CCM C-XR 230E

Year

2007-08

Engine

Four stroke, single cylinder, SOHC

Capacity

230 cc / 14.0 cu in
Bore x Stroke 67 x 65 mm
Compression Ratio 9.2:1
Cooling System Air and oil

Ignition

Electronic ignition CDI

Starting

Electric

Max Power

13.1 kW / 18 hp @ 8500 rpm

Transmission

5 Speed

Final Drive

Chain

Front Suspension

Ĝ40 mm Telescopic forks

Rear Suspension

Single shock - adjustable preload

Front Brakes

Single disc

Rear Brakes

Single disc

Front Tyre

80/100-21

Rear Tyre

110/100-18

Dry Weight

118 kg / 260 lbs

Fuel Capacity

8.8 L / 2.3 US gal
