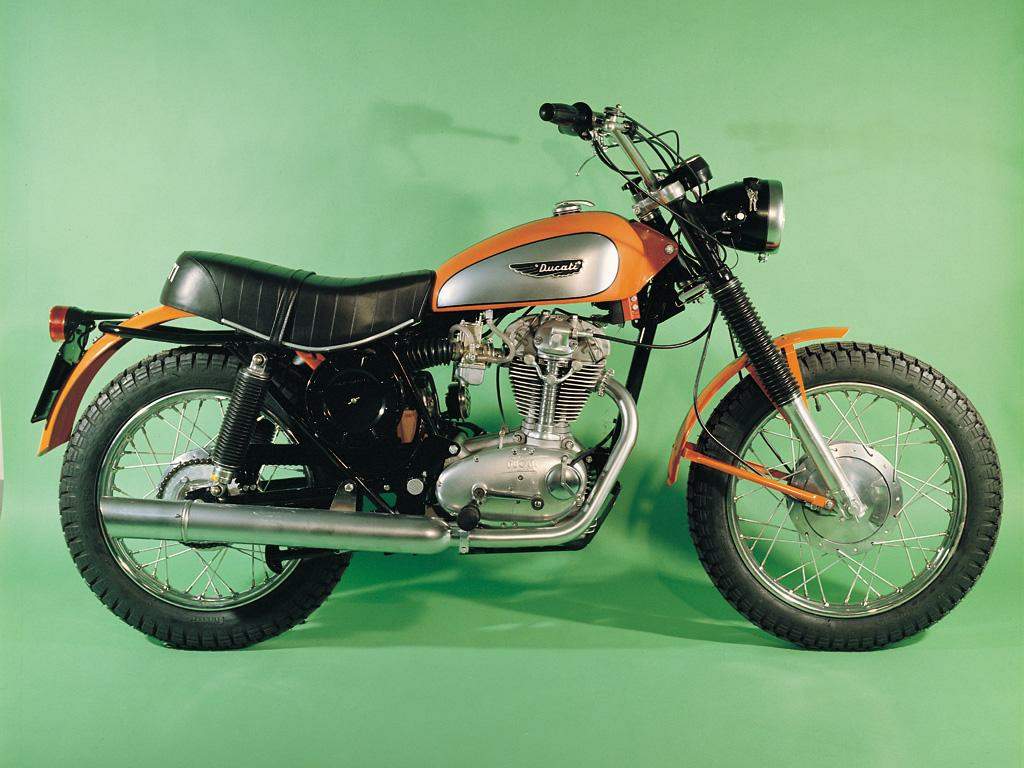

Ducati 450 Scrambler







Make Model.

Ducati 450 Scrambler Jupiter

Year

1969 - 70

Engine

Four stroke, single cylinder, SOHC, bevel gear driven

Capacity

435.7 cc / 26.6 cu in
Bore x Stroke 86 x 75 mm
Compression Ratio 9.3:1
Cooling System Air cooled

Induction

Dell'Orto VHB 29 AD

Spark plug

Marelli CW260N / Lodge 2HN

Ignition

Points and coil (electronic from 1973)

Starting

Kick

Battery

SAFA 3L3, 13.5 Ah

Max Power

16.9 kW / 23 hp @ 6500 rpm

Clutch

Wet, multiplate

Transmission

5 Speed

Primary Drive Ratio

2.111:1 (27/57)

Gear Ratios

1st 2.46 / 2nd 1.73 / 3rd 1.35 / 4th 1.10 / 5th 0.97:1

Final Drive Ratio

2.917:1

Final Drive

Chain

Front Suspension

35 mm Marzocchi telescopic fork

Rear Suspension

Swingarm, dual Marzocchi shocks, 3-way adjustable

Front Brakes

Drum, 180 mm

Rear Brakes

Drum, 160 mm

Front Tyre

3.50 x 19, Pirelli

Rear Tyre

4.00 x 18, Pirelli

Dimensions

Length: 2120 mm / 83.5 in
Width:    940 mm / 37.0 in
Height: 1150 mm / 45.3 in

Wheelbase

1380 mm / 54.3 in

Seat Height

770 mm / 30.3 in

Dry Weight

133 kg / 293 lbs

Fuel Capacity

13 L / 3.4 US gal / 2.9 Imp gal
