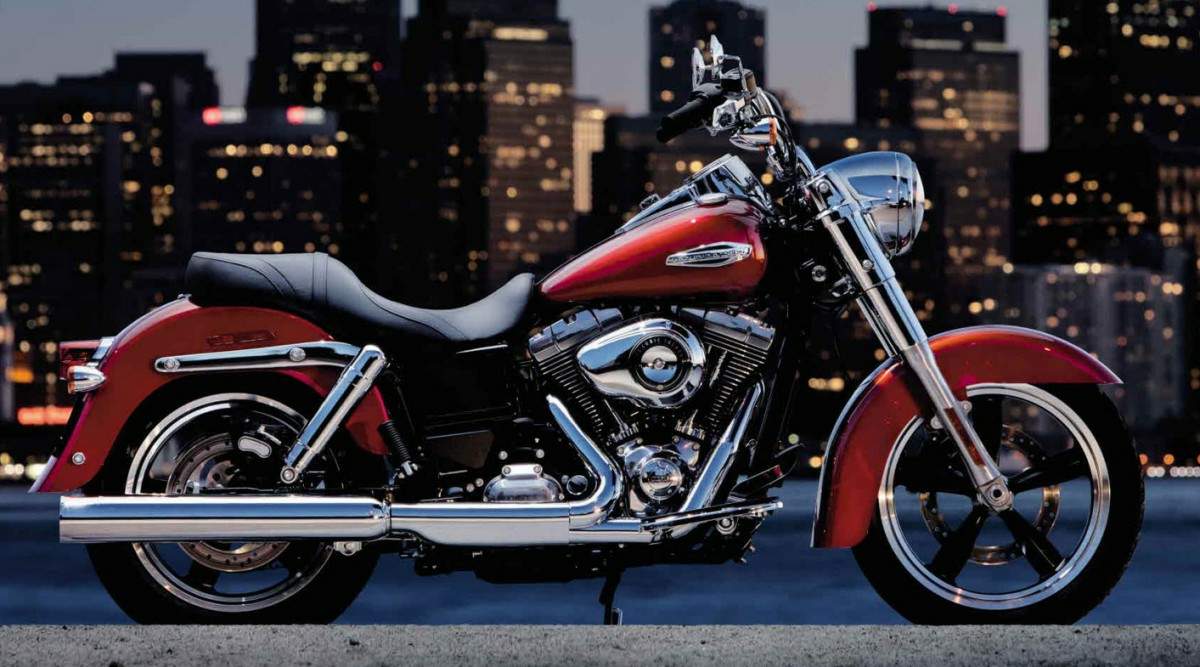

Harley Davidson FLD Dyna Switchback









Make Model

Harley Davidson FLD Dyna Switchback

Year

2012

Engine

Four stroke,  twin Cam 103™ Valves Pushrod-operated, overhead valves with hydraulic, self adjusting lifters; two valves per cylinder

Capacity

1690
Bore x Stroke 98.4 x 111.3 mm
Cooling System Air cooled
Compression Ratio 9.6:1

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Ignition

Single-fire, non-wasted, map-controlled spark ignition

Max Torque

98.8 ft/lbs /136 Nm @ 3500 rpm
Clutch Multi-plate, wet

Transmission

6 Speed
Final Drive Belt
Gear Ratio 1st 9.311   2nd 6.454   3rd 4.793   4th 3.882   5th 3.307   6th 2.79
Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded

Front Suspension

41.3 mm fork with 20 mm cartridge damping and triple rate spring,
Front Wheel Travel 98 mm / 3.8 in

Rear Suspension

Nitrogen charged 36 mm monotube damper with 5 step preload adjustable dual rate spring,
Rear Wheel Travel 54 mm / 2.13 in

Front Brakes

Single 300mm disc 4 piston caliper ABS available

Rear Brakes

Single 292mm disc 2 piston caliper ABS available

Front Tyre

Dunlop® D402F 130/70B18 63H

Rear Tyre

Dunlop® D401 160/70B17 73H
Rake (steering head) 29.9°
Trail 158 mm / 6.2 in
Dimensions Length  2360 mm / 92.9 in
Wheelbase 1595 mm
Seat Height Laden2  663 mm / 26.1 in
Unladen  695 mm / 27.4 in
Gross Vehicle Weight Rating 531 kg / 1170 lbs

Wet Weight

326 kg / 718 lbs
Oil Capacity 2.8 Litres

Fuel Capacity

17 8 Litres / 4.7 gal



The Dyna® Switchback™ is custom touring motorcycle with detachable hard saddlebags and quick-detach windshield. Remove those components in just seconds to turn the Switchback into a custom street cruiser. Chassis, suspension and tires are engineered to deliver light, confident handling.

The Switchback is the lightest custom touring motorcycle in its displacement category. Its styling evokes a classic proportion and clean, straightforward lines. The bend of the mini-ape handlebar and its pull-back riser combine with full-length rider footboards and a two-up touring seat to offer most Switchback riders all-day comfort.

The new Dyna® Switchback motorcycle from Harley-Davidson® is a quick-change artist. With its color-matched hard saddlebags and a fork-mounted windshield in place, the Switchback is a custom touring motorcycle. But in seconds, the detachable saddlebags and quick-detach windshield can be removed without tools. Now the Switchback is a custom street cruiser with a gleaming headlamp nacelle, five-spoke cast-aluminum wheels and a mini-ape handlebar. When it's time to head out for a long weekend, simply re-install the saddlebags and windshield, and the Switchback is ready to roll for the state line.

The Switchback is powered by a muscular Twin Cam 103™ V-Twin engine that delivers strong performance on the boulevard and on the highway. The Switchback is the lightest custom touring motorcycle in its displacement category, and at 718 pounds ready-to-ride is 94 pounds lighter than a Harley-Davidson Road King®. New front-end geometry, premium suspension components, and a low-profile front tire give the Switchback a plush ride and responsive handling.

"The new front end geometry, wheel and tire specs, and cartridge fork are engineered to work together to produce steering that's light to input and immediately responsive," Brian Scherbarth, Switchback project lead engineer. "A demo ride will reveal that Switchback is a capable touring motorcycle that's also really fun to ride."

Designed to look great with or without its saddlebags, the Switchback is styled to evoke a classic proportion and clean, straightforward lines from its 4.7-gallon fuel tank to the sweep of its full-coverage rear fenders. The bend of the mini-ape handlebar and its pull-back riser, full-length rider footboards and a two-up touring seat offer most riders all-day comfort.


 Harley-Davidson FLD Dyna Switchback Model Highlights

• New model for 2012 model year
• Color-matched detachable hard saddlebags
• Quick-detach, fork-mounted windshield
• 2-into-1 chrome exhaust with straight-cut muffler
• Nitrogen-charged, 36mm monotube rear shocks have preload-adjustable, dual rate springs
• Cartridge-type 41.3mm front fork delivers enhanced damping performance, handling and ride comfort
• Black, 5-Spoke Cast Aluminum wheels with machine-highlighted rims; 18-inch front, 17-inch rear
• Full-coverage front and rear fenders
• Chrome headlamp nacelle
• Chrome fork covers and chrome rear shock covers
• Chrome tank console with integrated ignition switch
• Classic black battery box cover
• Full-length rider footboards
• One-piece, two-up seat with custom stitching
• Black powdercoated engine with polished covers
• 4.7-gallon Street Bob fuel tank
• Stainless steel, mini ape-hanger handlebar on pull-back riser
• Security Package Option bundles Anti-lock Braking System (ABS) with Smart Security System with proximity-based, hands-free
security fob

Harley-Davidson FLD Dyna Switchback Features and Benefits

• Twin Cam 103™ engine with 103-cid (1690cc), rubber-mounted within the frame, is rated at 100 ft. lbs. of torque at 3500 RPM. The engine is equipped with Electronic Sequential Port Fuel Injection (ESPFI) and is mated to a 6-speed Cruise Drive® transmission.
• 2-into-1 chrome exhaust with straight-cut muffler tuned for a deep exhaust tone.
Advanced suspension is tuned for comfort and precise handling. Nitrogen-charged, monotube rear shocks have preload-adjustable, dual rate springs. A 41.3mm front fork with a 20mm cartridge delivers enhanced damping performance, handling and ride comfort.
• Low-profile Dunlop® 130/70B18 front tire and specific front-end geometry provides reduced steering effort, enhanced steering response and confident low-speed manuevering.
• Color-matched detachable hard saddlebags have a combined luggage capacity of 30 pounds. The saddlebag locks are common to the ignition key, and external latches do not interfere with packing or reduce usable bag volume.
• Quick-detach, fork-mounted windshield.
• The Black, 5-Spoke Cast Aluminum wheels have machine-highlighted rims; 18-inch front, 17-inch rear.
• Full-coverage front and rear fenders.
• Chrome headlamp nacelle.
• Chrome fork covers and chrome rear shock covers.
• Chrome tank console with integrated ignition switch.
• Exposed under-seat battery box
• Exposed rear coil-over shock absorbers
• Classic black battery box cover.
• Full-length rider footboards.
• The one-piece, two-up seat features custom stitched detail. Seat height (laden) is 26.1 inches. Its narrow cross section enables flat-foot stops for most riders.
• Security Package Option bundles Anti-lock Braking System (ABS) with Smart Security System with proximity-based, hands-free security fob.
• Stainless steel, mini ape-hanger handlebar on pull-back riser.
• 4.7-gallon fuel tank.
