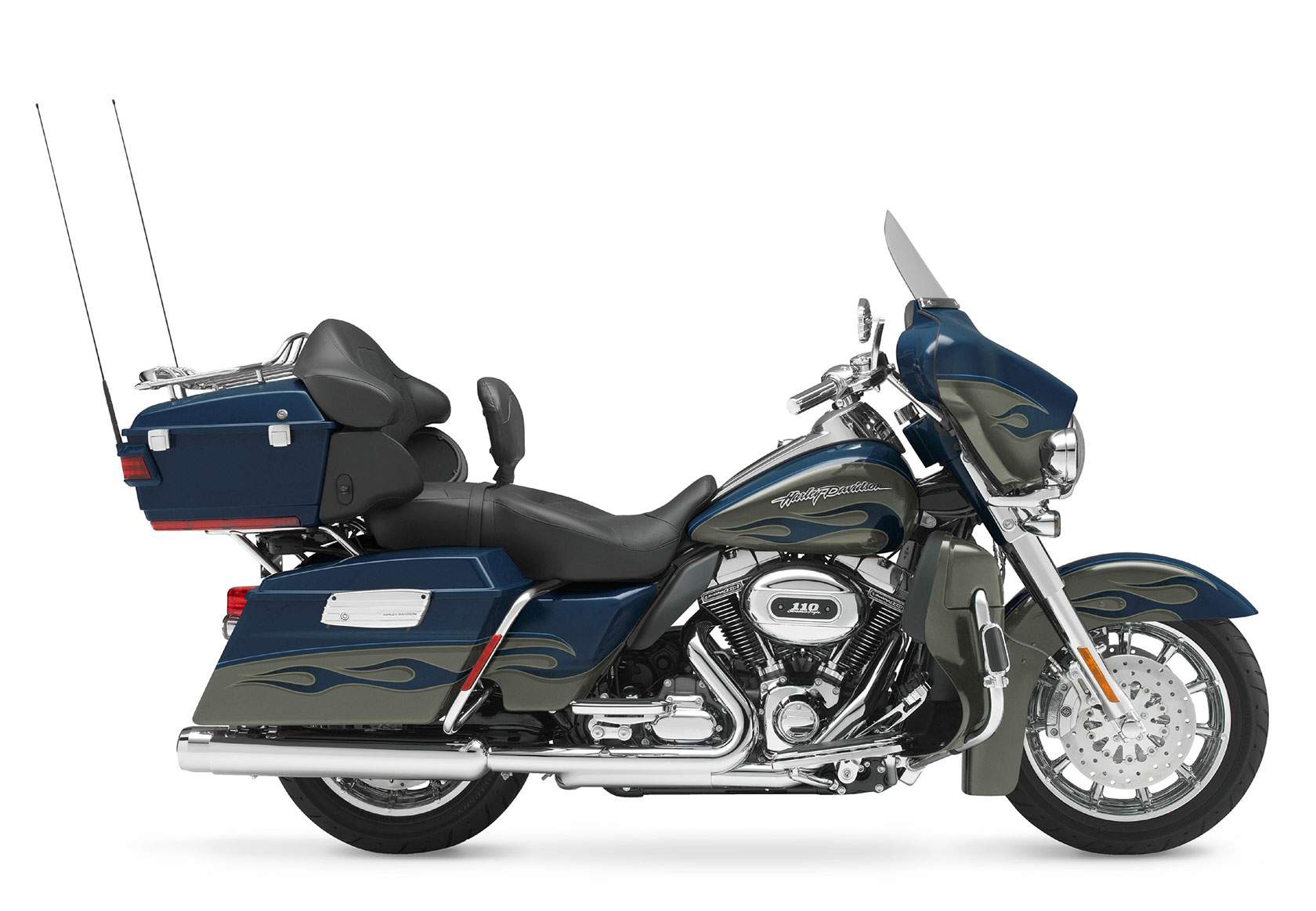

Harley Davidson FLHTCUSE5 CVO Ultra Classic Electric Glide









Make Model

Harley Davidson FLHTCU SE5  Ultra Classic Electric Glide CVO

Year

2010

Engine

Twin Cam 110™  Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder

Capacity

1802
Bore x Stroke 101.6 x 111.2 mm
Cooling System Air-cooled,
Compression Ratio 9.15:1

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Starting

Electric

Transmission

6 Speed
Final Drive Belt
Gear Ratio 1st 9.312 9.312 9.030  /  2nd 6.421 6.421 6.226  /  3rd 4.774 4.774  /  4.630   /  4th 3.926 3.926 3.807  /  5th 3.279 3.279 3.179  /  6th 2.790 2.790 2.706
Frame Mild steel, sqaure-section backbone with twin downtubes

Front Suspension

41.3 mm telescopic forks,
Front Wheel Travel 116 mm

Rear Suspension

Swing Arm Mild steel, rectangular tube sections, stamped junctions; MIG welded,  Lowered, air-adjustable,

Front Brakes

2x 300mm discs 4 piston calipers, ABS Standard

Rear Brakes

Single 300mm disc 4 piston caliper, ABS Standard

Front Tyre

D408 130/80B17 65H

Rear Tyre

D407 180/65B16 81H

Trail 170 mm / 6.6 in
Dimensions Length  2504 mm / 98.6 in.
Width   965 mm / 38 in.
Height  1549 mm / 61 in
Wheelbase 1613 mm / 63.5 in
Seat Height Laden2 27.8 in / 706 mm
Unladen 29.8 in. / 757 mm

Wet Weight

 423.2 kg  /  933 lbs

Fuel Capacity

22.7 Litres / 6 gal

The CVO™ Ultra Classic® Electra Glide® is a limited-production motorcycle for the discerning touring rider that combines custom paint, a potent powertrain and a well-chosen array of top-line accessories.

The CVO Ultra Classic Electra Glide is built on the innovative Touring chassis introduced by Harley-Davidson in 2009, based on a single-spar, rigid backbone frame and a stout swingarm developed to withstand the demands of long-haul touring riders and today's more-powerful engines.


Model Highlights

New Color-matched LED King Tour-Pak® Brake/Tail Lamp
New Leather passenger backrest with adjustable lumbar support and a perforated printed insert
New Perforated printed inserts for the seat and rider backrest
New Brilliant white LED light pods illuminate saddlebag interiors
New Dimpled inserts for the CB pod, Tour-Pak lid, and the Screamin Eagle®110 insert
New Tour-Pak 12 Volt Outlet
New Custom Vehicle Operations™ medallions on the rear fender and fuel door
New Custom Vehicle Operations carry-out luggage liners for the Tour-Pak and saddlebags
New Plush Tour-Pak bottom liner is embellished with the Custom Vehicle Operations monogram
New Exclusive paint scheme in three color combinations, with color-matched inner fairing assembly, inner fairing cap and rear fender filler strips

• Suspended, dual-control heated leather seat
• Screamin’ Eagle® Twin Cam 110™ Granite powder-coated powertrain with 110 Screamin’ Eagle identifiers on cylinder heads
• Rumble Collection rider and passenger footboard inserts, shifter pegs, brake pedal, highway pegs, mirrors, windshield trim, saddlebag latch covers, and heated hand grips with chrome end cap
• Roulette Wheels
• Teardrop floating front brake rotors
• Custom oil cooler with chrome cover and CVO™ medallion

Key Features

The CVO™ Ultra Classic® Electra Glide® is a limited-production motorcycle for the discerning touring rider that combines custom paint, a potent powertrain and a well-chosen array of top-line accessories.

Production will be limited to approximately 3,450 units assembled at the Harley-Davidson Vehicle Operations facility in York, Pa.


The CVO Ultra Classic Electra Glide is built on the innovative Touring chassis introduced by
Harley-Davidson in 2009, based on a singlespar, rigid backbone frame and a stout swingarm developed to withstand the demands of long-haul touring riders and today’s more-powerful engines.

• 80-watt Harman/Kardon® Advanced Audio System with CB/intercom and navigation system
• Anti-Lock Brakes
• Electronic Cruise Control
• Air Wing Tour-Pak rack
• Saddlebag and Tour-Pak power lock system
• LED interior Tour-Pak light
• Integrated garage door opener and receiver
• Chrome Accessories
- Fork sliders
- Upper fork covers
- Lower triple tree cover
- Front wheel spacer
- Valve stem cover caps
- Custom passing lamp brackets
- Classic front axle nut covers
- Dipstick
- Voltage Regulator
- Rider footboard supports
- Adjustable passenger footboard supports
- Billet engine guard footpeg mounts
- Extended-reach billet-style brake lever
- Billet-style heel/toe shift levers
• Black high-torque 1.4kW starter
• Braided stainless steel brake and clutch lines
• High-performance clutch with hydraulic actuation
• Harley-Davidson® Smart Security System with siren
• Indoor storage cover with embroidered CVO logo
• Commemorative CVO ignition key with display box
