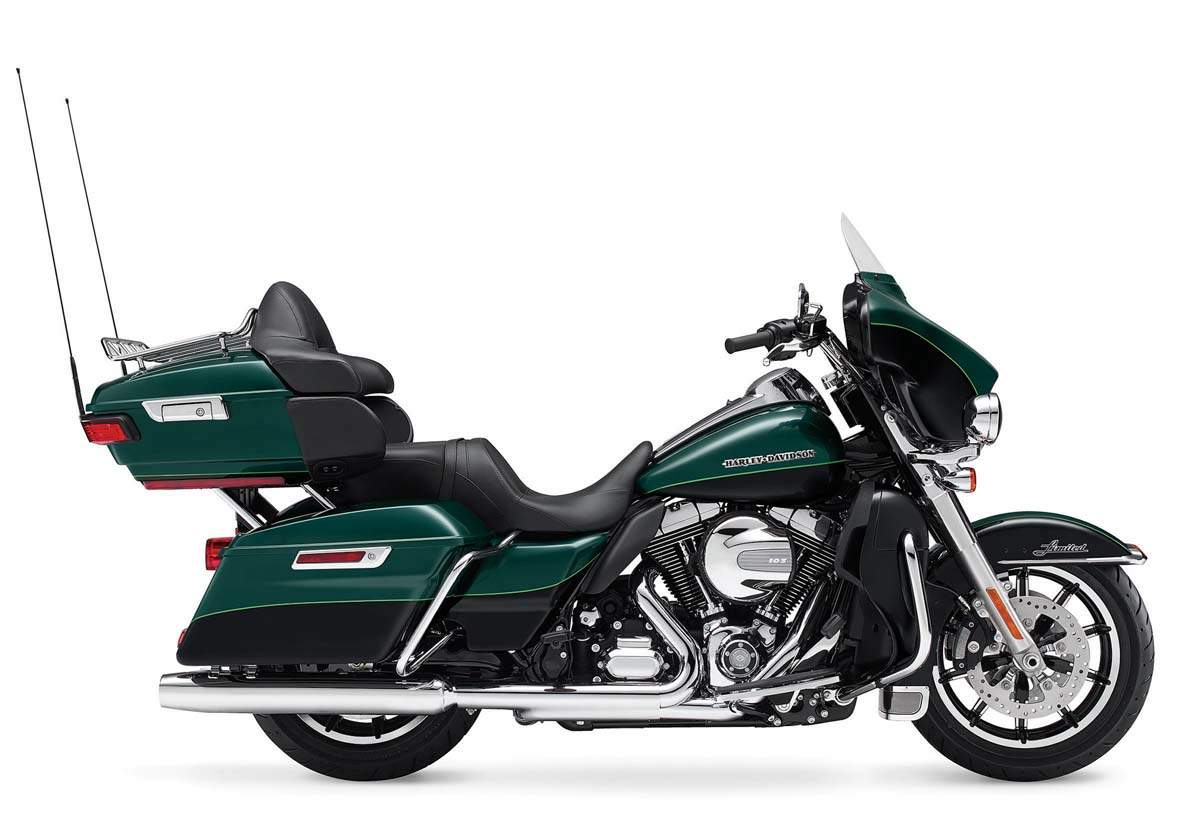

Harley Davidson FLHTKL Electra Glide Ultra Limited Low



Make Model

Harley Davidson FLHTKL Electra Glide Ultra Limited Low

Year

2015-16

Engine

Twin Cam 103™ with integrated oil cooler Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder

Capacity

1690 cc / 103.1 cub in.
Bore x Stroke 98.4 x 111.25 mm
Cooling System Air/Liquid cooled
Compression Ratio 10.0:1
Exhaust Chrome, 2-1-2 dual exhaust with tappered mufflers

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Ignition

Single-fire, non-wasted, map-controlled spark ignition
Starting Electric

Max Torque

143 Nm / 14.6 kgf-m / 105.4 ft/lb @ 3750 rpm

Clutch Multi-plate, wet

Transmission

6 Speed
Final Drive Belt
Gear Ratio 1st 9.593 / 2nd 6.650 / 3rd 4.938 / 4th 4.000 / 5th 3.407 / 6th 2.875:1
Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded

Front Suspension

41.3 mm telescopic, cartridge-style damping

Rear Suspension

Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded, Rear Shocks Air-adjustable

Front Brakes

2 x 300mm discs, 4 piston caliper ABS

Rear Brakes

Single 300 mm disc, 4 piston caliper ABS
Wheels Front Contrast Chrome Impeller Cast Aluminum
Wheels Rear Contrast Chrome Impeller Cast Aluminum

Front Tyre

BW 130/80B17 65H

Rear Tyre

BW 180/65B16 81H

Rake 26°
Trail 170 mm / 6.7 in.
Dimensions Length  2600 mm / 102.4 in
Wheelbase 1625 mm / 64 in.
Seat Height Laden     650.2 mm / 25.6 in
Unladen  686.0 mm / 27.0 in.

Wet Weight

406 kg / 896 lb.6 lbs
Oil Capacity 3.8 Litres / 4 US qt.

Fuel Capacity

22.7 Litres / 6 US gal

The farther you go on a motorcycle, the better it gets. Whether riding one, or building a new one from LED headlamp to taillight. Welcome to the top of the line bagger...

The 2015 Electra Glide® Ultra Classic® Low offers the lowest seat height available in a premium touring bike and a package of features designed to address comfort and fit issues fit for riders under 5 feet 7 inches tall.

Features include:

A seat height of 25.6 inches allows more riders to place both feet flat on the ground when the motorcycle is stopped, and a new low-profile seat reduces the reach to the foot controls. Premium lowered front and rear suspension lowers the bike’s center of gravity and makes it easier to lift the motorcycle off its jiffy stand, yet delivers outstanding comfort and handling.
The overall width of the primary drive housing and derby cover are reduced to further improve leg clearance to the ground.
A pull-back handlebar places hand controls two inches closer to the rider, putting many riders in a more comfortable position that can reduce back and shoulder strain.
Smaller-diameter hand grips reduce the finger reach to the brake and clutch levers.
Assist and Slip (A&S) hydraulic clutch reduces lever effort 23 percent, a key benefit in stop- and-go traffic.
A new passenger footboard mount allows the footboards to be folded up so they are out of the way when pushing the motorcycle in a garage or driveway.
A new toe tab extension reduces the reach required to retract the jiffy stand.

Visually indistinguishable from standard Harley-Davidson Touring models, the Ultra Classic® Low is equipped with the full complement of Project RUSHMORE features that set the standard for long-haul touring comfort and convenience. The High Output Twin Cam 103™ engine provides abundant power for touring two-up and confident passing. A wind tunnel-tested Batwing fairing with Splitstream vent limits head buffeting.

The Boom!™ Box 4.3 audio system features Bluetooth capability and a 25-watt per channel amplifier driving four speakers. A King Tour-Pak® and hard saddlebags with One touch latches, Reflex™ Linked Brakes with ABS, Daymaker™ LED lighting, electronic cruise control, and the H-D® Smart Security System are standard features.

Lower than Low

Harley-Davidson® takes fit further with the 2015 Electra Glide® Ultra Classic® Low and Ultra Limited Low motorcycles, new models that offer the lowest seat height, and the highest rider confidence, available in a premium touring bike. The seat is slammed to get a rider’s feet closer to the pavement, but that’s just one of the ergonomic enhancements built into these new Low models that offer more freedom to more riders, right off the showroom floor.

From the width of the primary drive housing to the diameter of the hand grips, Harley-Davidson went over its premium Touring motorcycles from top to bottom, responding to customer input to develop a better fit for riders as short as 5 feet 5 inches tall. Visually indistinguishable from standard Harley-Davidson Touring models, the new Ultra Classic Low and Ultra Limited Low are also equipped with the full complement of Project RUSHMORE features that have recalibrated the expectations of touring motorcyclists. The look, sound and feel of the premium Harley-Davidson Touring experience is unaltered, but the fit will be right for more riders.

“With these new models we are addressing the important issue of fit, perhaps the ultimate expression of personalization,” said Michelle Kumbier, Harley-Davidson Senior Vice President of Motorcycle Operations. “These Low models will allow many riders to feel more comfortable and more confident when they settle into the seat.”
The Ultra Classic Low and Ultra Limited Low share a package of features designed to work together to address comfort and fit issues specific to riders of shorter stature.

• A seat height of 25.6 inches – 1.7 inches lower than the Harley-Davidson Electra Glide Ultra Classic model and the lowest of any premium touring motorcycle on the market today – allows more riders to place both feet flat on the ground when the motorcycle is stopped. A new low-profile seat reduces the reach to the foot controls. Premium front and rear suspension lowers the bike’s center of gravity and makes it easier to lift the motorcycle off its side stand, yet delivers outstanding comfort and handling.
• The width of both the primary drive housing and derby cover has been reduced to further improve leg clearance to the ground.
• A new handlebar places the hand controls two inches closer to the rider, putting many riders in a more comfortable position that can reduce back and shoulder strain.
• Smaller-diameter hand grips reduce finger reach to the brake and clutch levers.
• Assist and Slip hydraulic clutch reduces lever effort, a key benefit in stop-and-go traffic.
• A new passenger footboard mount allows the footboards to be folded up out of the way when pushing the motorcycle in a garage or driveway.
• A new toe tab extension reduces foot reach required to retract the side stand.

The 2015 Electra Glide® Ultra Classic® Low sets the standard for long-haul touring comfort and convenience. The High Output Twin Cam 103™ engine provides abundant power for touring two-up and confident passing. A wind tunnel-tested Batwing fairing with splitstream vent limits head buffeting. The Boom!™ Box 4.3 audio system features Bluetooth capability and a 25-watt per channel amplifier driving four speakers. A King Tour-Pak® carrier and hard saddlebags with One-Touch latches, Reflex™ linked brakes with Anti-lock Braking System, Daymaker™ LED lighting, electronic cruise control, and the H-D™ Smart Security System are standard features.

The 2015 Ultra Limited Low redefines touring motorcycle refinement. The Twin- Cooled™ High Output Twin Cam 103™ engine delivers steady performance in any riding situation. A Touch screen and GPS navigation are features of the 100-watt Boom! ™ Box 6.5GT infotainment system. Contrast chrome Impeller cast-aluminum wheels, rich two-tone paint schemes, a premium Tour-Pak luggage rack, premium saddlebag travel bags and a premium Tour-Pak travel-pak are among the deluxe features of the Ultra Limited Low.

• Rubber-mounted, Air-Cooled 1690cc High Output Twin Cam 103™ engine with integrated oil cooler; finished in Black with chrome covers
- 6-Speed Cruise Drive® transmission
- Hydraulic Assist and Slip clutch
- Electronic Cruise Control
- Low-maintenance belt drive
• Pull-back handlebar places grips two inches closer to the rider
• Super premium reduced reach, low-profile two-up seat
• Reduced-width primary housing and derby cover for improved rider leg clearance
• Upgraded Premium lowered front and rear suspension lowers motorcycle by one inch
• Smaller diameter hand grips reduce lever reach
• Jiffy stand extension reduces reach
• Passenger footboards and pivoting mounts permit easier mobility and greater leg clearance
• Batwing fairing with Splitstream vent for reduced head buffeting
• Reflex™ Linked Brakes with ABS; floating open front brake rotors
• Daymaker™ LED headlight and fog lights
• Boom!™ Box 6.5 GT infotainment system with GPS and touchscreen, Bluetooth capability, with 25-watt per channel amplifier and four speakers, CB radio
• Jukebox media compartment with USB connection and One-Touch access door
• Injection-molded hard saddlebags with chrome One-Touch design latch
• Injection-molded Tour-Pak® case with One-Touch latch and integrated lock
• Rear LED stop, turn, and position lights located on the Tour-Pak®
• Impeller Cast Aluminum wheels
• Chrome 2-1-2 dual exhaust with tapered mufflers
• Heated hand grips
• Raised, “stadium-style” gauges with lighted tic band
• Tour-Pak® luggage rack, Premium Saddlebag Travel Bags and Premium Tour-Pak® Travel Pak




All the Standard features of the Electra Glide Ultra Limited PLUS:

Premium Lowered Front and Rear Suspension


We added premium 1 inch lowered front and rear suspension on the Ultra Limited Low motorcycle, moving it closer to the pavement than it is on the Ultra Limited motorcycle. It not only gives you a low-slung look, it drops your center of gravity for easier more confident handling and puts your feet that much closer to the ground when you're stopped. The ride, though, stays smooth, thanks to premium components tested and proven over miles on the test track and on the open road.

Lowest Seat Height In Touring

The seat of the Ultra Limited Low motorcycle is as low as you can go on a top-of-the-line Grand American touring machine. It makes lifting the bike off the side stand easier and puts the ground within a short reach of your boot soles.


Reduced Width Primary Housing and Derby cover

Getting both feet flat on the ground gets easy on the Ultra Limited Low motorcycle. We reduced the width of the primary housing and derby cover to give your left leg a straighter shot to the pavement. It might seem like a little detail, but it's the little details that make the difference between any motorcycle and the one that's perfect for you to ride.

Shorter Windscreen for Reduced Head Buffeting

Head buffeting is caused by the vacuum of air created by the windscreen. On the Ultra Limited Low motorcycle we reduced the height of the windscreen. It's a simple equation: Less height = less vacuum = less head buffeting.


New Handlebar Position and Reduced Diameter Grips

A new, closer handlebar position and reduced diameter grips combine to make working the clutch and front brake levers easy on the new Ultra Limited Low motorcycle. Long story short, it's less reach for your arms and fingers.

New Passenger Footboard Mounts

You don't have to worry about having your legs bumping into the passenger footboards when you're backing up the bike. New passenger footboard mounts let you fold them up and tuck them completely out of the way in seconds. On the Ultra Limited Low motorcycle, riding is easy. And so is maneuvering your bike into a parking spot.
