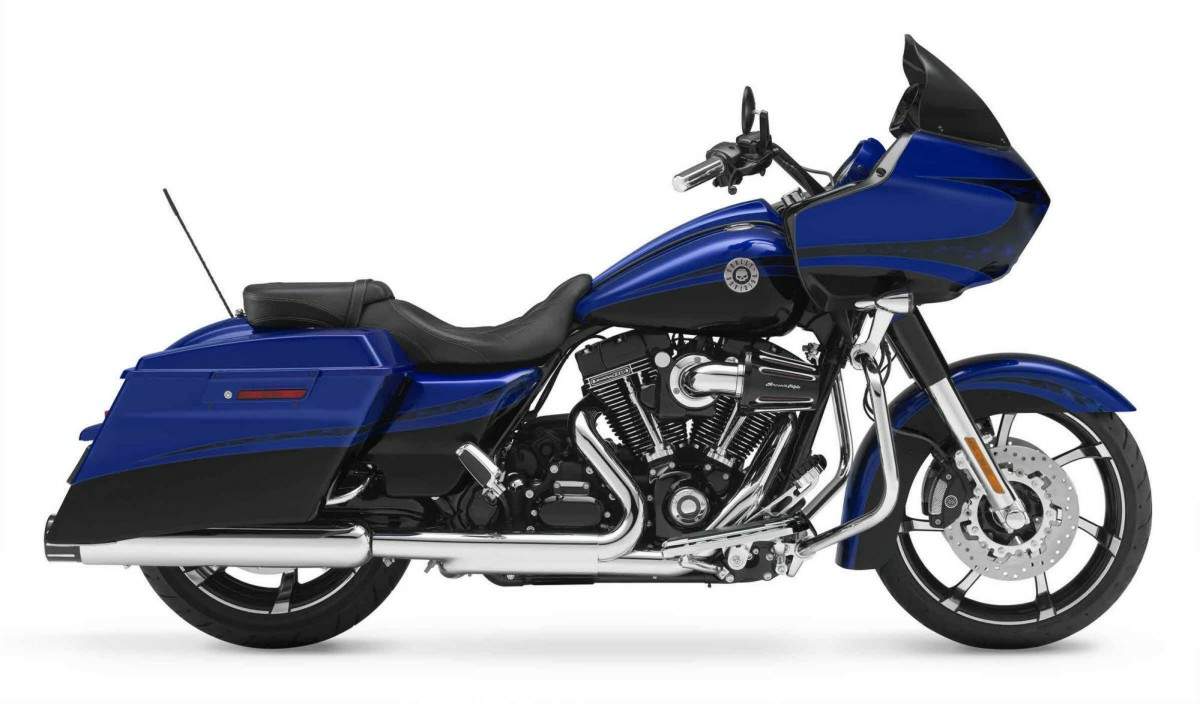

Harley Davidson FLTRX-SE Road Glide Custom CVO

.

Make Model

Harley Davidson FLTRX-SE Road Glide Custom CVO

Year

2012

Engine

Four stroke, Twin Cam 110™ Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder

Capacity

1804 cc / 110.1 cub in.
Bore x Stroke 101.6 x 111.3 mm
Cooling System Air cooled
Compression Ratio 9.15:1

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Ignition

Single-fire, non-wasted, map-controlled spark ignition

Starting

Electric

Max Torque

165 Nm / 122 lb-ft @ 3750 rpm
Clutch Hydraulically actuated, 9-plate, wet, with high performance spring

Transmission

6 Speed
Final Drive Belt
Gear Ratio 1st 9.593  /  2nd 6.650  /  3rd 4.938  /  4th 4.000  /  5th 3.407  /  6th 2.875
Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded

Front Suspension

41.3 mm telescopic, triple circuit damping

Rear Suspension

Air-adjustable, Swingarm Mild steel; two-piece drawn and welded section; forged juctions; MIG welded

Front Brakes

2x 300mm discs 4 piston calipers

Rear Brakes

Single 300mm discs 4 piston caliper

Front Tyre

130/70B18

Rear Tyre

180/55B18
Rake  / Trail 26°  /  170 mm
Dimensions Length  2443 mm  /  96.2 in
Width  909 mm  /  35.8 in.
Height 1340 mm  /  52.8 in
Seat Height Laden2  676 mm  /  26.6 in
Unladen  699 mm  /  27.5 in
Gross Axle Weight Rating: 616.8 kg  /  1360 lbs

Wet Weight

383.2 kg  /  845 lbs
Oil Capacit 3.8 Litres

Fuel Capacity

22.7 Litres / 6 gal

The CVO™ Road Glide® Custom offers an unmatched hot-rod touring experience. This chromed-out, shark-nosed beauty features the air-cooled, Twin Cam 110™ engine, an exclusive multi-color paint scheme, a new high-output sound system and a host of fresh custom components.

The CVO Road Glide Custom is built on the innovative Harley-Davidson Touring chassis, based on a single-spar, rigid backbone frame and swingarm developed to withstand the demands of long-haul touring riders.
2 CVO Road Glide Custom: This hot-rod bagger combines a distinctive shark-nose, frame-mounted fairing with a road-hugging, slammed profile for a look that's sure to turn heads. A high-output, amplified Harman/Kardon Advanced Audio radio features CD/AM/FM/WB and delivers 100 watts per channel to five-by-seven-inch fairing-mount speakers and two-inch dash-mount tweeters. An included 8GB Apple iPod nano connects via an interface and holder located in the right-side saddlebag. Exclusive custom features include a smoked Wind Splitter windshield; a two-piece custom seat with removable pillion and color-coordinated stitching and cover; and a color-matched, low-profile fuel tank console with illuminated CVO graphic insert. A 19-inch Contrast Chrome Agitator Custom front wheel leads this beauty down the road.

Harley-Davidson Custom Vehicle OperationsTM takes bagger swagger to a new level with the 2012 CVO Road Glide® Custom, a chrome-drenched, shark-nosed beauty that snarls with Screamin' Eagle authority. This limited-production motorcycle features the most-powerful V-Twin engine offered by Harley-Davidson, an exclusive multi-color paint scheme, a new high-output sound system and a host of fresh custom components. Bombing the boulevard or scorching the highway, the CVO Road Glide® Custom offers an unmatched hot-rod touring experience.

CVO motorcycles are customized using exclusive components and paint treatments combined with premium accessories from the Harley-Davidson Genuine Motor Accessories catalog. The CVO program is often used to introduce new custom components and techniques before they are offered as individual accessories. Harley-Davidson CVO motorcycles are backed by a two-year, unlimited mileage warranty.

The CVO Road Glide Custom features a distinctive, frame-mounted fairing that offers a lighter steering feel than a fork-mounted fairing, and incorporates dual headlamps and a cockpit-style instrument display. Its Harley-Davidson Touring chassis has a single-spar, rigid backbone frame and two-piece swingarm designed to deliver responsive maneuverability and long-haul durability. Chassis geometry and suspension are calibrated to deliver confident handling and comfort. Hand-adjustable hydraulic rear shocks accommodate variable passenger and luggage loads. An Anti-lock Braking System (ABS) and cruise control are standard equipment.

Harley-Davidson Custom Vehicle Operations (CVO)TM emphasizes exclusive styling and inspiring performance with four limited-production motorcycle models for 2012. Decked out with bold paint, gleaming chrome, high-output audio and the most-powerful V-Twin engines offered in production Harley-Davidson motorcycles, each CVO model is a rolling object of desire for the discerning motorcyclist.

Each 2012 CVO model is powered by the fuel-injected Twin Cam 110™ V-Twin, the largest-displacement engine offered in a Harley-Davidson motorcycle, rated at up to 122 ft. lbs. of torque. This engine is only available from the factory in CVO models. CVO motorcycles are customized using premium accessories and paint treatments combined with numerous items from the Harley-Davidson Genuine Motor Accessories catalog. The CVO program is often used to introduce new custom components and techniques before they are offered as individual accessories. Harley-Davidson CVO motorcycles are backed by a two-year, unlimited mileage warranty.

NEW Three exclusive paint schemes:
- White Gold Pearl and Starfire Black with Real Smoke graphics (Black seat with gold stitching)
- Maple Metallic and Vivid Black with Real Smoke graphics (Black seat with grey stitching)
- Candy Cobalt and Twilight Blue with Real Smoke graphics (Brown seat with gold stitching)
NEW High-output amplified audio system with 100 watts of power per channel (200 watts total) and two-way, five-by-seven-inch fairing-mount speakers and two-inch fairing-mount tweeters.
Harman/Kardon® Advanced Audio radio features CD/AM/FM/WB.
NEW “Heavy Breather” style air intake with a black anodized cover
NEW Custom solo Touring seat and matching detachable pillion with color coordinated stitching and cover matched to vehicle color
NEW Ergonomically designed Black internallywired handlebar
NEW Wind Splitter aerodynamic smoked windscreen
NEW Color-matched, low-profile fuel tank console with illuminated CVO™ graphic
NEW Brushed-nickel skull fuel tank and fairing medallions
• 8GB Apple® iPod® nano connects to the audio system through an iPod® interface and iPod® holder located in the saddlebag
• Twin Cam 110™ Black powder-coated powertrain with 110 Screamin’ Eagle® identifiers on cylinder heads
• Rumble Collection rider footboard inserts, passenger footpeg inserts, shifter pegs, brake pedal, hand grips
• Contrast Chrome Agitator Custom wheels with matching Agitator floating front brake disc
• Road Glide® air deflectors fit on top of the engine guards and redirect turbulent air from the area between the fairing and the fuel tank
• Black billet muffler end caps with chrome spears
• Injection-molded, extended hard saddlebags; colormatched rear fascia with LED brake/turn lights
• Color-matched inner fairing and speedometer/ tachometer housing, color-matched upperfork sliders, license plate light cover, and rear fender strut covers

Harley-Davidson FLTRXSE CVO Road Glide Custom Key Features and Benefits

• Screamin' Eagle Twin Cam 110 engine with 110-cid (1803cc), rubber-mounted within the frame, is rated at 122 ft. lbs. of torque at 3750 rpm. The engine is equipped with Electronic Sequential Port Fuel Injection (ESPFI) and Electronic Throttle Control (ETC), and is mated to a 6-speed Cruise Drive transmission.
• New Heavy Breather engine air intake with a black aluminum cover and bright aluminum "cut back" details over an exposed air filter element.
• Black billet aluminum muffler end caps with chrome spears on chrome dual exhaust with four-inch touring mufflers.
• New high-output amplified audio system with 100 watts of power per channel (200 watts total) and MTX Audio two-way, five-by-seven-inch fairing-mount speakers and two-inch dash-mount tweeters. Amplifier is located within the fairing. Harman/Kardon Advanced Audio radio features CD/AM/FM/WB. The system includes an 8GB Apple iPod nano with an etched Bar & Shield logo, iPod radio interface and iPod holder located the right-side saddlebag.
• New custom two-piece seat with diamond-pattern contrast stitching; thread or cover color-coordinated to motorcycle paint color. • Passenger pillion is removable.
• New black internally wired handlebar with matching black hand controls.
• New Wind Splitter aerodynamic smoked windscreen.
• New color-matched, low-profile fuel tank console with illuminated CVO graphic insert.
• New brushed-nickel Skull fuel tank and fairing medallions.
• Contrast Chrome Agitator Custom wheels (19-inch front, 18-inch rear) with matching Agitator floating front brake rotors.
• Rumble Collection features black rubber with brilliant chrome highlights on the rider footboard inserts, passenger footpeg inserts, shifter pegs, brake pedal, and hand grips.
• Injection-molded, extended hard saddlebags; color-matched rear fascia with LED brake/turn lights.
• Aerodynamic fork-mounted fairing with dual headlamps
• Anti-Lock Braking System (ABS)
• Electronic Cruise Control
• Chrome Accessories
- Front fork sliders
- Front wheel spacer
- Valve stem cover caps
- Classic front axle nut covers
- Dipstick
- Voltage Regulator
- Rider footboard supports
- Passenger footboard supports
- Extended-reach billet-style brake lever
- Billet-style heel/toe shift levers

• Black high-torque 1.4kW starter
• Braided black stainless steel brake and clutch lines
• High-performance clutch with hydraulic actuation
• Harley-Davidson® Smart Security System
• Indoor storage cover with embroidered CVO™ logo
• Commemorative CVO™ ignition key with display box
• Customer Care package includes a tool kit, microfiber detail cloth and H-D jiffy stand coaster.
• The CVO Road Glide Custom will be offered in three custom color schemes, each with a gloss black powdercoat powertrain, a color-matched inner fairing and speedometer/tachometer housing, color-matched upper fork sliders, license plate light cover, and rear fender strut covers.
• White Gold Pearl and Starfire Black with Real Smoke graphic (Black seat with gold stitching)
• Maple Metallic and Vivid Black with Real Smoke graphic (Black seat with grey stitching)
• Candy Cobalt and Twilight Blue with Real Smoke graphic (Brown seat with gold stitching)
