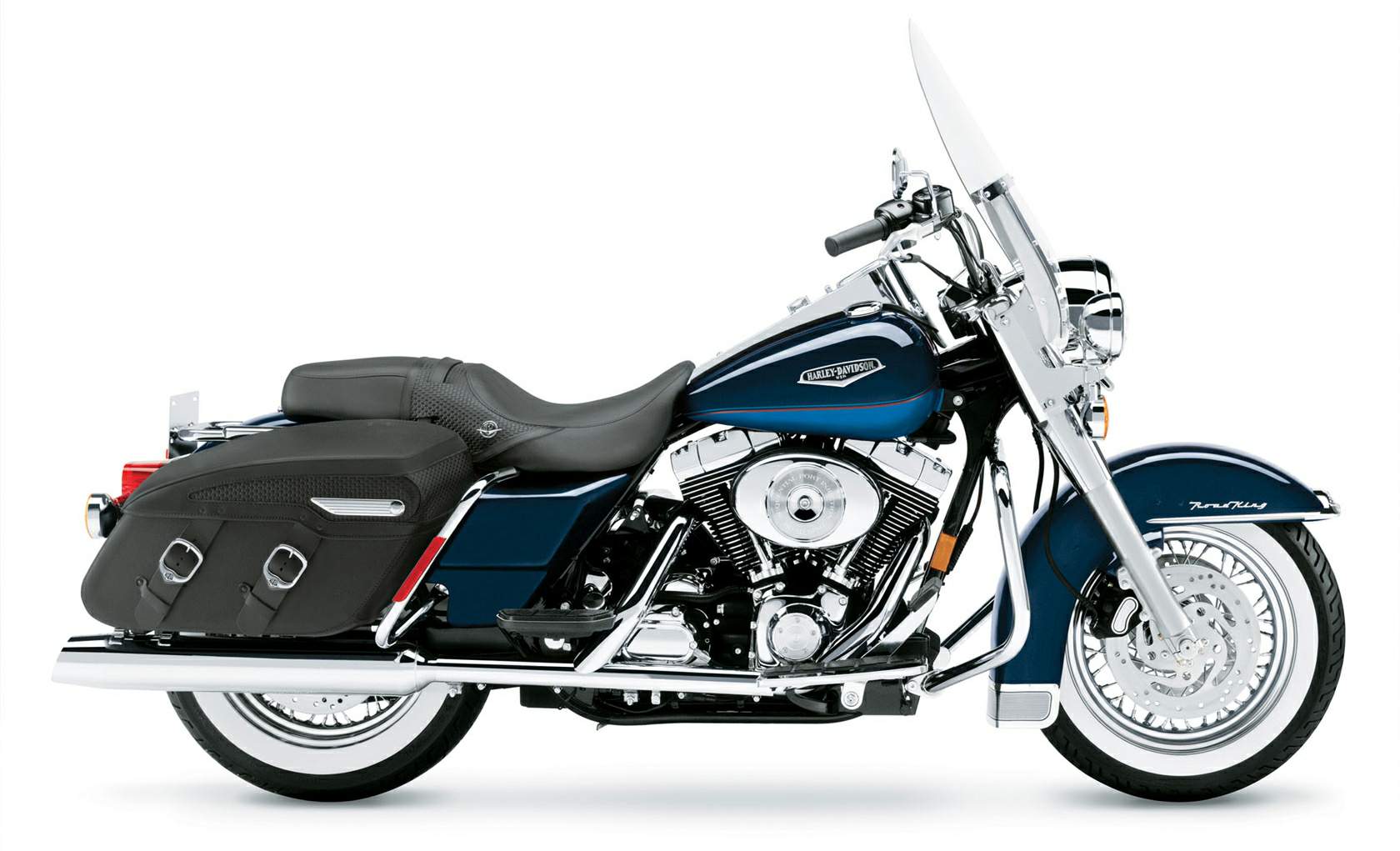

Harley Davidson FLHRC/R Road King Classic







Make Model

Harley Davidson FLHRC/I Road King Classic

Year

2001 - 02

Engine

Four stroke, 45° V-Twin, Twin Cam 88® vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder

Capacity

1449 cc / 88.4 cu-in
Bore x Stroke 95.3 x 101.6 mm
Cooling System Air cooled
Compression Ratio 8.9:1
Lubrication Dry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump with spin on 10ì pressurized oil filter

Induction

Carburetion 40 mm constant velocity with enrichener and accelerator pump
ESPFI 38 mm throttle bore electronic sequential port fuel injection

Ignition

Single-fire, non-wasted, map-controlled spark ignition
Starting Electric

Max Power

67 hp / 48.8 kW @ 5200 rpm

Max Torque

116.6 Nm / 86 lb-ft @ 3500rpm

Transmission

5 Speed
Final Drive Belt
Gear Ratio 1st 10.110 2nd 6.958 3rd 4.953 4th 3.862 5th 3.150
Frame Mild steel, rectangular section backbone w/ twin down-tubes Swing Arm Conventional, rectangular

Front Suspension

Telescopic

Rear Suspension

Air-adjustable

Front Brakes

2x 292mm discs 4 piston calipers

Rear Brakes

Single 292mm disc 4 piston caliper

Front Tyre

130/90-16

Rear Tyre

130/90-16
Rake  26.0°
Trail 156.6.3 mm / 6.2 in
Wheelbase 1612 mm / 63.5 in
Seat Height 684 mm / 26.9 in
Ground Clearance 130 mm / 5.1 in

Dry Weight

322 kg  /  710.0 lbs

Fuel Capacity

18.9 Litres / 5.0 US gal

The Road King® Classic draws its styling cues from storied Harley-Davidson® motorcycles of the past. With wire-laced wheels, fat whitewall tires, and gorgeous leather-wrapped hard saddlebags that retain their shape mile after mile, this motorcycle turns heads. The fender tips and seat valance boast a unique, chrome Road King® Classic three-dimensional emblem for added style.

-Large, Hiawatha headlight and chrome nacelle
-Detachable windshield
-Large, tank-mounted speedometer
-Leather-wrapped, hard saddlebags
-One-piece tooled leather seat
-Chrome fender and seat emblems
-Wide whitewalls
-Wire laced wheels, standard
-Electronic Fuel Injection, standard
-Vibration-isolated, Black and Chrome Twin Cam 88® Engine
-Triple-disc brakes
-Air-adjustable rear touring suspension
-Electronic cruise control
