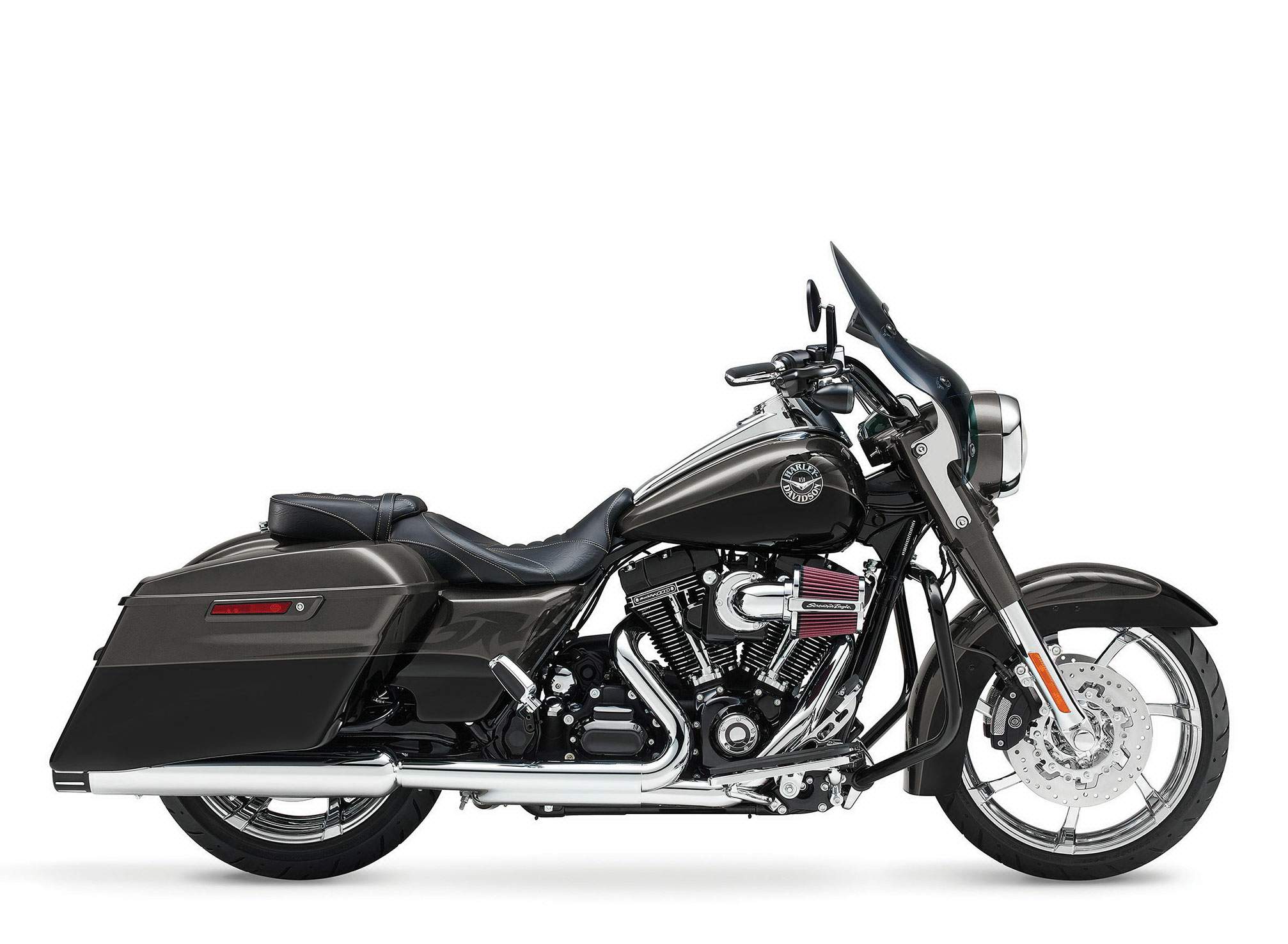

Harley Davidson FLHR-SE5 Road King CVO







Make Model

Harley Davidson FLHR-SE5 Road King CVO

Year

2014

Engine

Four stroke, 45° V-Twin, Twin Cam 110 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder

Capacity

1802 cc / 110 cu-in
Bore x Stroke 101.6 x 111.1 mm
Cooling System Air cooled
Lubrication Pressurized, dry-sump
Compression Ratio 9.7:1
Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Ignition

Single-fire, non-wasted, map-controlled spark ignition
Starring Electric

Max Torque

156 Nm / 115 lb-ft @ 3000 rpm

Transmission

6 Speed
Final Drive Belt
Primary Drive Chain, 34/46 ratio
Gear Ratio 1st 9.593 2nd 6.65 3rd 4.938 4th 4.0 5th 3.407 6th 2.875
Frame Mild steel, square-section backbone with twin downtubes

Front Suspension

41.3 mm telescopic, cartridge-style damping

Rear Suspension

Short, air-adjustable shock

Front Brakes

2x 292mm disc 4 piston caliper

Rear Brakes

Single 292mm disc 4 piston caliper
Wheels Optional Style Type Tubeless Chrome Aluminum Profile Laced
Front Wheel Black, 10-Spoke Cast Aluminum
Rear Wheel Black, 10-Spoke Cast Aluminum

Front Tyre

130/80B17 65H

Rear Tyre

180/65B16 81H

Rake 26°
Trail 170 mm / 6.7 in
Dimensions Length  2465 mm / 96.5 in
Wheelbase 1625 mm / 64 in
Seat Height Laden  673 mm / 26.5 in
Unladen  711 mm / 28.0 in.
Gross Vehicle Weight Rating 16.9 kg / 1360 lbs
Dry Weight 354 kg / 779 lbs

Wet Weight

371 kg / 814 lbs
Ground Clearance 135 mm / 5.3 in
Oil Capacity 3.3 Litres / 0.87 US gal

Fuel Capacity

22.7 Litres / 6.0 gal

For the rider who wants it all, the bike that has it all: classic style, long haul comfort. Heavy custom details. Totally re-thought to give you more of that big road-eating grin...

Enhanced by Project RUSHMORE, the 2014 CVOTM Road King® combines the largest displacement V-Twin engine offered by Harley- Davidson with the innovative Vented Wind Splitter windshield, Reflex Linked Brakes with ABS, and the Daymaker™ LED headlight for unmatched touring performance, comfort and the custom exclusivity of brilliant chrome and fabulous paint.

The CVO™ Road King® is built on the innovative Harley-Davidson® Touring chassis, based on a single-spar, rigid backbone frame and a stout swingarm developed to withstand the demands of long-haul touring riders and today's more- powerful engines.

Features

NEW Three exclusive paint schemes:
- Tribal Orange and Galactic Black with Aztec Shadow Graphics
- Titanium Dust and Galactic Black with Aztec Shadow Graphics
- Deep Sherwood Pearl and Galactic Black with Aztec Shadow Graphics
NEW Two-piece leather seat and passenger pillion with “tuck and roll” leather inserts
NEW Heavy Breather air cleaner
NEW LED stop rear lighting
NEW Daymaker™ LED headlight
NEW Color-matched upper fork covers
NEW Restyled extended saddlebags with chrome One-Touch design latch
NEW Black ergonomically designed, internallywired, 1.25-inch handlebar
NEW Ergonomic hand controls with intuitive design and improved tactile feel
NEW Trigger switch scrolls LED display with odometer, trip A/B, clock, range to empty, tachometer, and gear indicator
NEW Reflex™ Linked Brakes with ABS
NEW Floating open front brake rotors
NEW 49 mm telescopic front forks, stiffer triple clamps and larger steering bearings
NEW Streamlined, low profile front fender
NEW Redesigned saddlebag guard creates more passenger leg room
NEW Keyless ignition
• Assist & Slip Clutch Pack provides a slip feature on downshifts to reduce loading of the driveline; hydraulic actuation with reduced effort
• Plush CVO™ carryout saddlebag liners
• Detachable Vented Wind Splitter windshield with an adjustable vane to match air flow to the rider’s height
• Low-profile chrome console holds a combination speedometer/tachometer with programmable back-light colors
• Chrome billet-style extended reach heel shifter
• Slipstream Collection hand grips, rider floorboard inserts, shifter pegs, brake pedal pad and passenger footpegs
• Electronic Cruise Control
• Chrome Accessories
• Black high-torque 1.4kW starter
• Braided stainless steel brake and clutch lines
• Harley-Davidson® Factory Security System
• Harley-Davidson Museum® Gold Package

Features and Benefits

Twin Cam 110™ Engine

Asking riders if they’d like passing power is like asking them “Would you like beer in the pitcher” when they have reached their final destination at the end of a long, dusty ride. Everybody wants it, and the Twin Cam 110™ Engine is 110 cubic inches of Harley-Davidson V-Twin built you can rely on to deliver it. The result: massive low end torque and quick 60 to 80 mph 5th gear roll-on to get you around that 18-wheeler. In the tradition of the Flathead, Knucklehead, Panhead, Shovelhead, Evolution® Twin Cam 88® and Twin Cam 96® engines that came before it, the new Twin Cam 110™ Engine is all about the feeling an engine delivers to the rider. There’s a reason we’re called the Harley-Davidson Motor Company. Once you send some fuel this one, you’ll have do doubt what it is.

Hydraulic Clutch

Performance gets the custom treatment on Custom Vehicle Operations™ motorcycles. The addition of a high-performance clutch with hydraulic actuation helps make sure you're getting a smooth, confident feel with just the right amount of effort and a hands-off reliability that's only fitting. And you'll love the confidence and control it lends when harnessing those 110 cubic inches of Twin Cam power.
Pure Harley-Davidson Styling

Pure. Dripping with power. A jewel machined out of metal. There's no mistaking the roots of the Twin Cam 110™ with Screamin' Eagle® engine badges: authentic Harley-Davidson style through and through, with an attention to detail you'll get from no other motorcycle company. Its granite-colored heads and cylinders feature machined cooling fin tips and are highlighted by chrome rocker covers and Twin Cam 110™ engine badging. it's a pure, powerful declaration of the value of staying true to what satisfies the rider.
Six-Speed Cruise Drive® Transmission

You want a ride that rumbles—not begs for mercy—when you lean on it a little, and it's the rare ride that responds like this. The Six-Speed Cruise Drive® transmission provides smooth, quiet shifting and reduces engine speed on the highway, giving you a better match between engine RPM and road speed. And the Isolated Drive System makes acceleration flow in a smooth, steady stream from your wrist right down to the pavement, for control and response that go a long way when you're opening up the road ahead.
Twin Cam 110™ Engine Heritage

The knowledge of what makes an engine truly move a rider runs deep at The Motor Company, and it was put to good use when we created the Twin Cam 110™ engine. We sweated bullets perfecting every cubic inch, pushing design and technology forward. And we did it all without compromising one bit of Harley-Davidson's unique styling. Evolved, yet carrying on the legacy of the Flathead, Knucklehead, Panhead, Shovelhead, Evolution® and Twin Cam 88® engines that came before. The performance and durability are a direct result of the untold miles logged on the V-Twin since 1909, and the proud heritage that comes from a century's worth of commitment to life on two wheels.
Twin Cam 110™ Engine Innovation

Fire up the Twin Cam 110™ engine and feel the low-end torque unleashed. The colossal 110 cubic inches provide seemingly endless torque with adrenaline-pumping pull through all six gears. Boasting the largest-displacement V-Twin engine by Harley-Davidson, the Twin Cam 110™ engine produces 118 ft. lbs. of torque at 3750 rpm. Six speeds. A strong driveline and a low cruising rpm couldn't feel better.
Ventilator Intake with Screamin' Eagle® Badge

Everything about the Twin Cam 110™ Engine is a testament to the premium styling and performance you get with a limited Custom Vehicle Operations™ motorcycle. Right smack between the engine jugs rests the 'ventilator' intake with high-flow filter element, back plate, diamond-cut, Midnight Pearl finish Screamin' Eagle® badge and protective rain sock. Your bike will breathe easy while the increased air flow boosts the raw power. Unique and exclusive. That is what Custom Vehicle Operations is all about.
Project RUSHMORE - Confidence

Here are some of the innovations The Rider Project led to: the new Reflex™ Anti-lock Braking System (ABS) with Linked Brakes, new dual halogen and LED headlamps, brighter Tour Pak® lighting, brighter turn signals, brighter brake lights, and a new steering head with stiffer front forks. Locked-up tires are now history even when there’s wet pavement. We’ve made it feel even better to lean your way through a turn. Now you can see better. And we’ve made you more conspicuous to the cage-driving public. Because one thing we all agree on is this: Bikes that work better make riders who ride better. Take a ride. See how good you can be.
Reflex™ Linked Brakes with Anti-lock Braking System

No doubt about it, there are times riding when you need to haul things down in a hurry. And you don’t get to pick those times. Or decide whether or not they occur when you’re on a flat, smooth, dry, perfect new stretch of pavement. That’s why our touring models feature new Reflex™ anti-lock braking (ABS) with dynamically, electronically linked brakes. ABS turns a locked up front wheel or a rear wheel skid into a relic from riding’s history. And the front and rear brakes are electronically linked to provide exactly the right amount of brake to each tire no matter what the road condition is. No matter how good you are, this will make you a better rider.
Daymaker™ LED Headlights

For those who regard darkness as an invitation to go farther, the Daymaker™ LED headlight will light the way. With 2,136 powerful, daylight-simulating lumens that bathe the dark road in natural light, a shoulder-to-shoulder spread of 160 feet and a 450-foot punch, the night is yours to take will full confidences. Because not all of us look for an exit when day turns to night.
New Steering Head and Front Forks

Whether it’s a big sweeping curve or a set of tight turns, getting through the corners just got better. We stiffened up the front end, increased the fork diameter to 49mm and added new steel ball bearings, with lubricant contained inside to keep contaminants out for durability. The responsiveness is dialed in.
Brembo® Brakes

Confidence. Control. High-performance dual disc Brembo® front brakes with Anti-Locking Brake System (ABS) offer consistent stopping power at all speeds. The 4-piston front and rear caliper with dual front rotor brake system is state of the art and top of the line. It's just another way The Motor Company puts a high level of detail into their bikes to give you peace of mind throughout your journey.
Project RUSHMORE - Styling

Project RUSHMORE is the journey we set out on to take our touring motorcycles to places never imagined before – to turn all the possibilities for what a motorcycle can be now into true Milwaukee steel. We did it our way, as we’ve always done. As riders. Riding with other riders. Thousand of hours, countless road tests, millions of miles. Looking for the technology and innovations that truly make the ride better. We went over the bike fender tip to fender tip. Making it work better. Making it look sleeker. Modern. Clean. Tight. Let your eye take the journey over the machine. This is classic Harley-Davidson style and an all-new look at the exact same time. At Harley-Davidson, form has always followed function. And both have always reported to emotion. Now we’re just doing it on a completely different level.
New Tank and Fender Badges

This isn’t just a motorcycle. It’s a work of art, born out of passion, creativity and long days, late nights and refusing to be satisfied until every detail was perfect. When we added the signature badges, we did it with metal. Nothing else would be right on this masterpiece.
Agitator Chrome Wheels

The CVO Road King motorcycle rides on custom Agitator 7-spoke, mirror-chrome wheels wrapped in classic wide white wall tires. And there's a new brake rotor designed to show more of the wheel and a cut back front fender that uncovers more of the white wall tire. Nostalgia, meet the cutting edge of street custom.
High-Impact Paint and Graphics

Individually crafted and hand finished paint and graphics come standard on all Harley-Davidson® Custom Vehicle Operations™ motorcycles, balancing style and premium appeal to create one-of-a-kind custom motorcycle masterpieces. The CVO™ Road King® motorcycle offers two exclusive color schemes) with hand-painted "Fusion" graphics and pin-stripes adorning the gas tank and plenty of matching paint on the fairing-lowers, fenders, saddlebags, and more. Plus, the fuel tank sports true custom melted-glass-look cloisonné emblems. Skimping? The word's simply not in our vocabulary.
Custom saddlebags, rear fascia and new matching seat.

This motorcycle may be a masterpiece, but it’s no museum piece—it’s ready to go the distance and its rear assembly’s a big part of that. Sure, the custom rear fascia with its red-lens signals, and the saddlebags and new low profile matching seat with their extended styling and color-matched finishes all add to the bike’s premium custom look. But there’s plenty of space in those hard-case bags to secure your loot, and the LED stop/turn/tail lights deliver crisp, reliable visibility in all conditions, mile after mile after mile.
Project RUSHMORE - Comfort

The comfort of our machines has been dialed in the hard way: Over 110 years and thousands of miles in all kinds of conditions on every kind of street, road and highway ever laid down in pavement. Long hours in the saddle are the only way there is to learn what you need to know about things like airflow, heat management, seat materials and textures and the amount of effort it takes to pull a clutch lever. We don't stop until we build the most comfortable machines you can throw a leg over. We all want to go farther, and when you and your rider are more comfortable in the saddle, you can.
One Touch Design Philosophy

Here’s the rule we laid down for every compartment cover and saddlebag lid on our touring line: if it doesn’t open with the single touch of a button or one hand, while wearing gloves, it doesn’t go on the motorcycle. Because in all our conversations with all the riders we talked while we were rebuilding these motorcycles from the ground up, we didn’t encounter a single individual who wanted to have to put something on the ground before he could store it in a saddlebag.
New Saddlebag Design

Don’t let the sleek new look of these saddlebags deceive you. The look is tight on the outside, but things just got a little roomier on the inside. You want stuffability and these deliver bigger than ever. The hinges are simple and clean and the lids they open with one touch of one hand. The lock is tight and integrated into the latch where you can put the key in without the danger of scratching your premium paint. Welcome to the next level of the bagger.
