Harley Davidson FLHTCUSE5 CVO Ultra Classic Electra Glide Dark









Make Model

Harley Davidson FLHTCU SE5  Ultra Classic Electric Glide CVO Dark

Year

2010

Engine

Twin Cam 110™  Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder

Capacity

1802
Bore x Stroke 101.6 x 111.2 mm
Cooling System Air-cooled,
Compression Ratio 9.15:1

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Starting

Electric

Transmission

6 Speed
Final Drive Belt
Gear Ratio 1st 9.312 9.312 9.030  /  2nd 6.421 6.421 6.226  /  3rd 4.774 4.774  /  4.630   /  4th 3.926 3.926 3.807  /  5th 3.279 3.279 3.179  /  6th 2.790 2.790 2.706
Frame Mild steel, sqaure-section backbone with twin downtubes

Front Suspension

41.3 mm telescopic forks,
Front Wheel Travel 116 mm

Rear Suspension

Swing Arm Mild steel, rectangular tube sections, stamped junctions; MIG welded,  Lowered, air-adjustable,

Front Brakes

2x 300mm discs 4 piston calipers, ABS Standard

Rear Brakes

Single 300mm disc 4 piston caliper, ABS Standard

Front Tyre

D408 130/80B17 65H

Rear Tyre

D407 180/65B16 81H

Trail 170 mm / 6.6 in
Dimensions Length  2504 mm / 98.6 in.
Width   965 mm / 38 in.
Height  1549 mm / 61 in
Wheelbase 1613 mm / 63.5 in
Seat Height Laden2 27.8 in / 706 mm
Unladen 29.8 in. / 757 mm

Wet Weight

 423.2 kg  /  933 lbs

Fuel Capacity

22.7 Litres / 6 gal

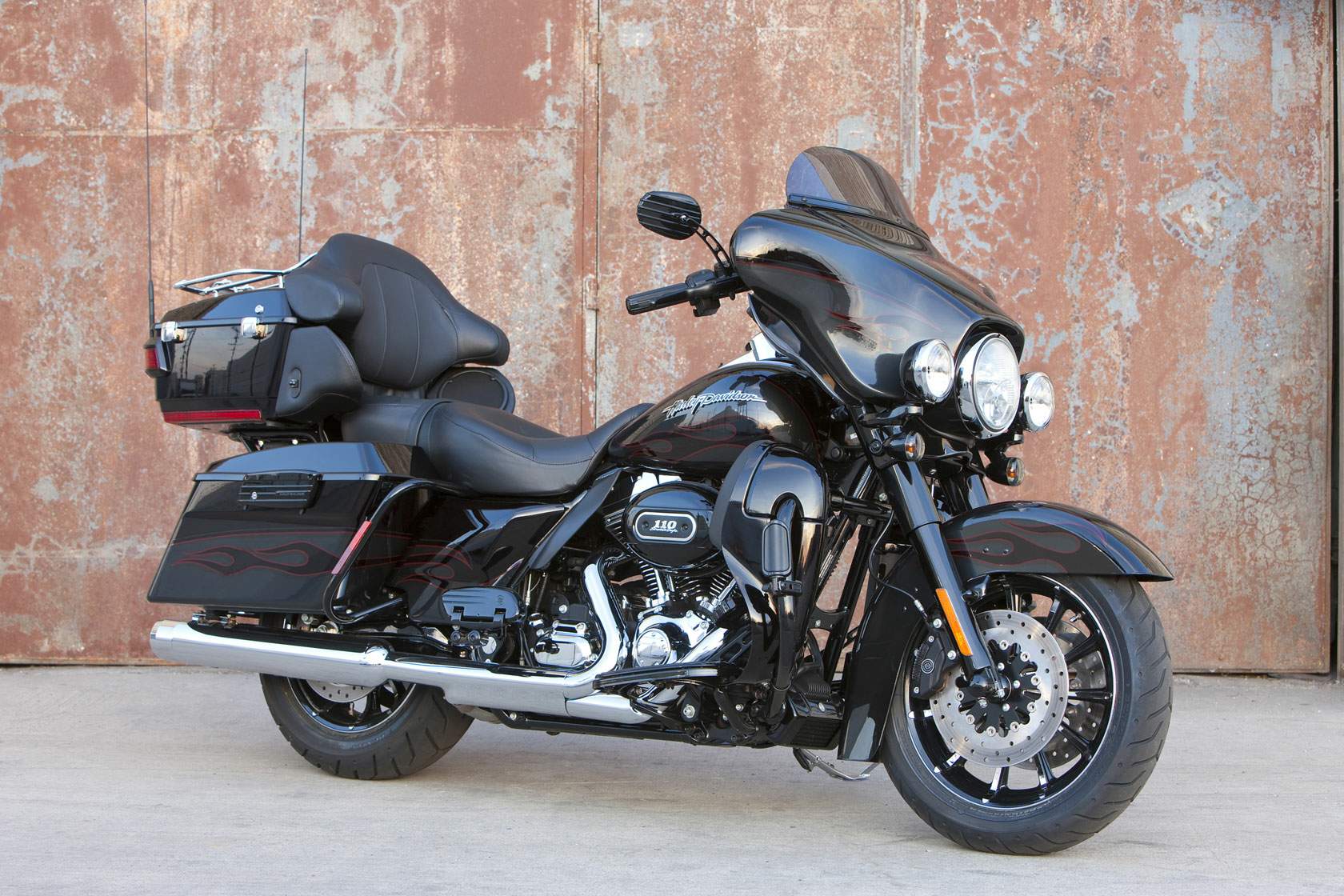

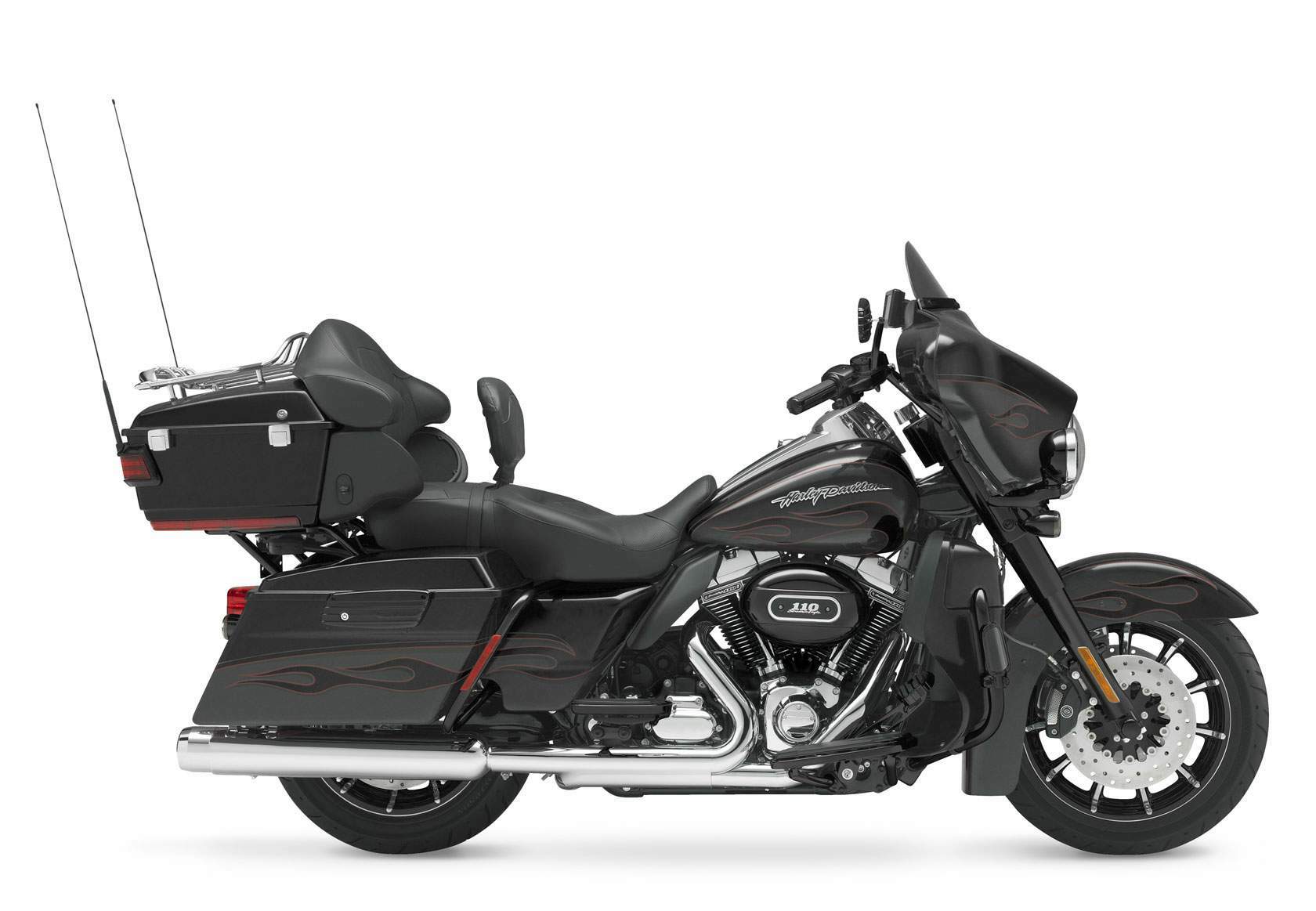

The new 2010 Custom Vehicle Operations (CVO) Ultra Classic® Electra Glide® trades the shine of chrome for a fade to black in its debut as the new, darker version of this truly exceptional Harley-Davidson Touring motorcycle.

Each motorcycle is serialized from one to 999, and displays a formidable array of blacked out components, led by the serialized CB pod insert and the Gloss Black Rumble Collection and low-smoked windshield, the new CVO Ultra adds leading-edge technology with a handlebar-mounted Road Tech™ zūmo® 660 GPS Navigator and an integrated automatic lock system that now includes the ignition knob.

The CVO Ultra is powered by a black and chrome Screamin' Eagle® Twin Cam 110™ engine and a 6-speed Cruise Drive® transmission, which is the largest-displacement V-Twin engine offered from the factory by Harley-Davidson. Besides the black powertrain, this menacing touring bike revels in all things dark with a Crimson Mist Black / Dark Slate and Flame graphics base color, and approximately 185 other unique black parts, components and accessories meticulously melded to form and function by the CVO team.

Among the main attractions on the dark road to CVO Ultra custom inspiration are the Contrast Chrome Roulette wheels, the Rumble Collection featuring nine Gloss Black accessories from mirrors to saddlebag latch covers, black engine and saddlebag guards, and Diamond Black gauge faces. All these deeply dark features combine to make the Ultra into an inspired motorcycle that could only come from Harley-Davidson CVO.

The CVO Ultra presents a lower profile up front with a 6.5-inch smoked windshield and adds premium Touring features like anti-lock braking system (ABS), LED saddlebag lights, Electronic Sequential Port Fuel Injection (ESPFI), a six-gallon fuel tank, Brembo brakes and 160-watt CD/AM/FM/WB/MP3 Advanced Audio System by Harman-Kardon, CB and intercom, and passenger audio with controls, cruise control, plus standard XM Radio.

The CVO Ultra is built on the innovative Touring chassis introduced by Harley-Davidson in 2009, based on a single-spar, rigid backbone frame and swingarm specifically developed to suit the needs of long-haul touring rides.

Key CVO Ultra Classic Electra Glide Features

Screamin' Eagle Black and Chrome Twin Cam 110 engine with 110-cid (1803cc), rubber-mounted to the frame, is rated at 115 ft. lbs. of torque at 3750 rpm. The 6-speed Cruise Drive transmission with black and chrome case features a helical-cut fifth gear.

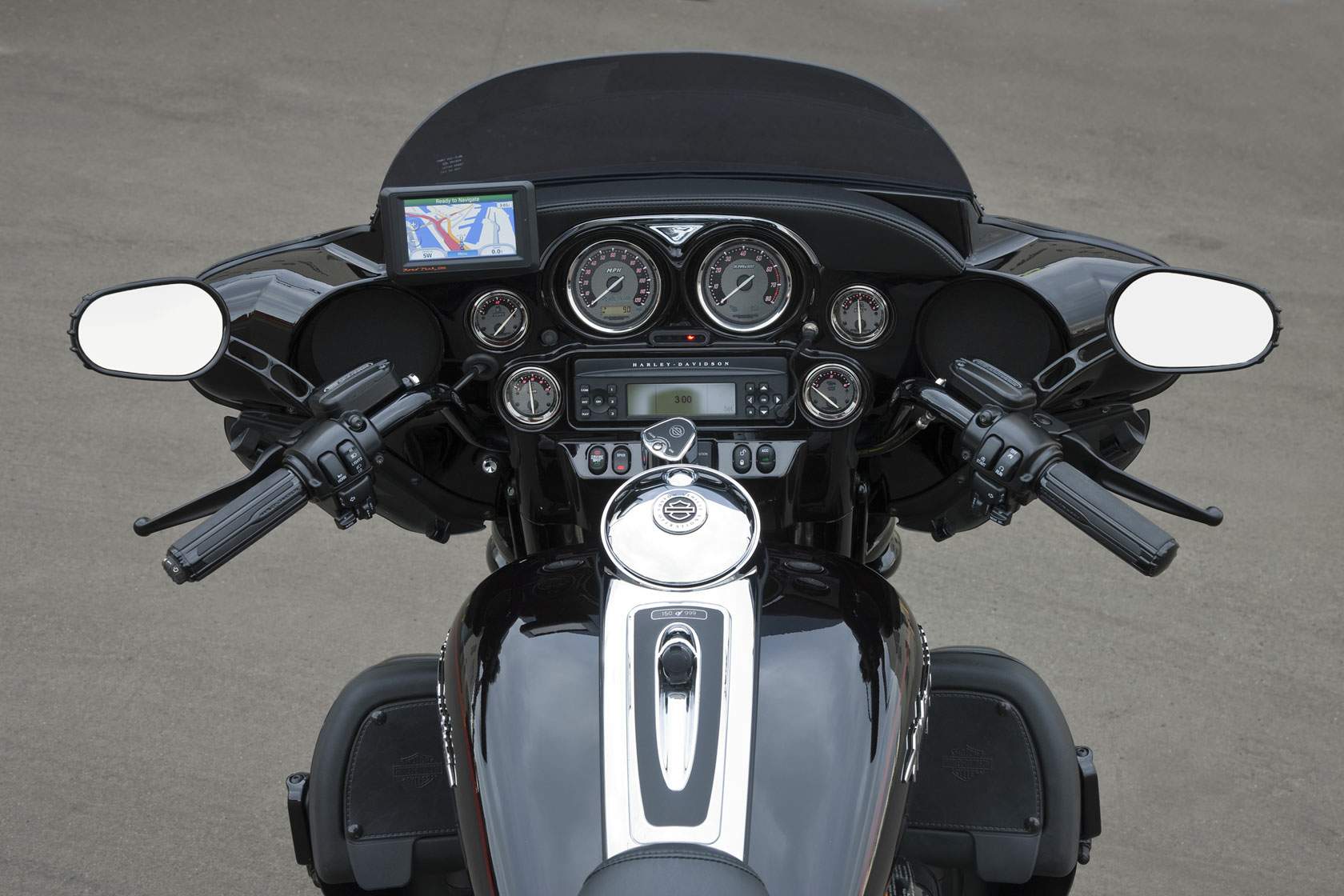

Developed for Harley-Davidson by Garmin, the Road Tech zūmo 660 has a new mounting position for convenient viewing by both rider and passenger with a glove-friendly touch screen, left-handed controls and a bright, UV-resistant display that's easy to read in sunlight.
Gloss Black Rumble Collection featuring rider footboard inserts and pans, passenger footboard inserts and pans, shifter pegs, brake pedal, highway pegs, mirrors, windshield trim, saddlebag latch covers and heated hand grips with end caps.
Contrast Chrome Roulette wheels, 17-inch front and 16-inch rear.
Suspended, dual control heated leather seat with new perforated printed insert.
Leather passenger backrest with adjustable lumbar support and new perforated, leather insert.
New custom paint scheme is Crimson Mist Black / Dark Slate with flame graphics.
