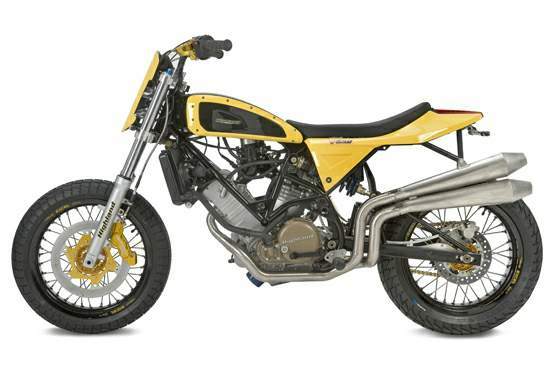

Highland 750 V2 Dirt Track







Make Model

Highland 750 V2 Dirt Track

Year

2006 -

Engine

Four stroke, 60° V-Twin, DOHC, 4 valves per cylinder

Capacity

749 cc / 45.7 cu-in
Bore x Stroke 95 x 53 mm
Cooling System Liquid cooled
Compression Ratio 11.5:1

Induction

Fuel injection

Ignition

Integrated engine management system with ignition coils fitted directly on the spark plugs
 Starting Electric

Max Power

85 hp / 62 kW @ 6000 rpm

Max Torque

84 Nm / 62 ft. lbs @ 5000 rpm

Clutch lubricated mult disk clutch

Transmission

6 Speed
Final Drive Chain
Frame CrMo steel

Front Suspension

Showa forks

Rear Suspension

Pensky

Front Brakes

Single 320mm disc 6 piston caliper

Rear Brakes

Single 220mm disc 1 piston calipers

Front Tyre

120/70-17

Rear Tyre

160/60-17
Wheelbase 1400 mm / 55.1 in
Seat Height 720 mm  /  28.9 in

Dry Weight

129 kg / 284.4  lbs

Fuel Capacity

12 Litres / 3.1 US gal
