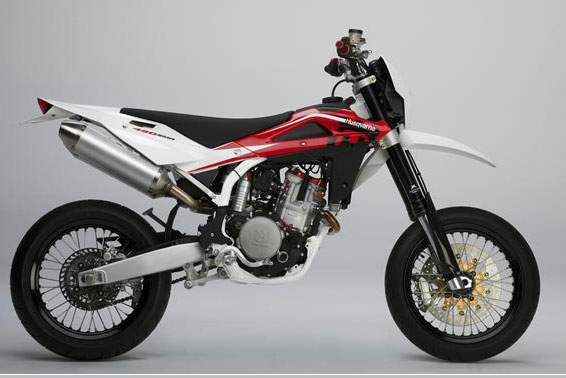

Husqvarna SM 450R







Make Model

Husqvarna SM 450R

Year

2010

Engine

Four stroke, single cylinder, DOHC, 4 vlave

Capacity

449 cc / 27.4 cu-in
Bore x Stroke 97 X 60.7 mm
Compression Ratio 12.9:1
Cooling System Liquid cooled
Lubrication Dry sump with two oil pump rotor and cartridge filter

Induction

Electronic injection MIKUNI D42

Ignition

Digital CDI
Starting Electric & kick

Max Power

46.9 hp / 34.5 kW @ 8500 rpm

Max Torque

41.5 Nm / 30.6 lb-ft @ 7000 rpm
Clutch Wet, multiple discs, cable operated

Transmission

6 Speed
Final Drive Chain
Gear Ratio 1st 2.000 (28/14), 2rd 1.611 (29/18), 3th 1.333 (24/18), 4th 1.086 (25/23), 5th 0.920 (23/25), 6th 0.814 (22/27)
Frame

Steel single tube cradle (round tubes); rear frame in light alloy

Front Suspension

50mm Marzocchi Upside-Down telescopic hydraulic fork with advanced axle; compression and rebound stroke adjustment

Front Wheel Travel 250 mm / 9.8 in

Rear Suspension

Progressive 'soft damp' with hydraulic adjustable single shock absorber; spring preload adjustment, compression and rebound adjustment compression stroke double adjustment
Rear Wheel Travel 290 mm / 11.4 in

Front Brakes

Single 320mm disc 4 piston caliper

Rear Brakes

Single 220mm disc 1 piston caliper

Front Tyre

120/70 -17

Rear Tyre

150/60 -17
Wheelbase 1495 mm / 58.9  in
Seat Height 915 mm / 36.0 in
Ground Clearance 270 mm / 10.6 in

Dry Weight

119.2 kg / 262.8 lbs

Fuel Capacity

9.2 Litres / 2.4 US gal

Husky Supermoto 450 and 510

Reflecting upon experience gained from wins in world supermoto competition the 2010 Husqvarna SM 450 and SM 510 models have undergone some radical changes. With a goal of making both models lighter and easier to handle, Husqvarna engineers concentrated first on Supermoto frame development. A completely new frame design increased new levels of rigidity and settings for managing power output and handling optimization. Riders now enjoy much better feel overall and frames are an entire kilo lighter or 2.2 lbs lighter than before.

New 2010 Husqvarna SM body panels (450 and 510) feature IPD (in-mold plastic decoration) graphics and they are constructed of stronger, more flexible plastic than before. Both front and rear lighting systems are more powerful. The rear light cluster houses LED lights and an integrated dual-purpose license plate holder. It can carry either a license plate or a racing number without the owner having to buy additional parts.

The 2010 Husqvarna SM front fender is also new and the look of the SM is both eye-catching and unique. Taking visual and aesthetic dynamics even further are black anodized Excel rims and new black plastic engine protectors. The 2010 Husqvarna SM 450 and 510 are striking to say the very least.

A variety of improvements have taken place across the entire spectrum of 2010 Husqvarna SM DOHC engines including more powerful water pumps and new radiator hoses for better cooling and increased performance. Oil lubrication and cooling are further improved thanks to a new oil circuit over-pressure valve, a new needle cage lubrication bearing and a newly designed oil filter.

2010 Husqvarna SM (450 and 510) steel exhaust valves ensure longer life and better reliability and the gearbox has been renewed to improve gear change speed and accuracy. Added gearbox enhancements include improvements to gear change linkage, shift lever and selector mechanisms.

Both 2010 Husqvarna SM 450 and 510 engines benefit from new timing gear chain tensioners that improve chain tension and reduce contact pressure. Exhaust systems feature twin aluminum silencers that create a very special sound, reduce overall noise levels and improve performance. An all-new aluminum sidestand further helps to keep weight to absolute minimum levels on the new 2010 Husqvarna SMs.
