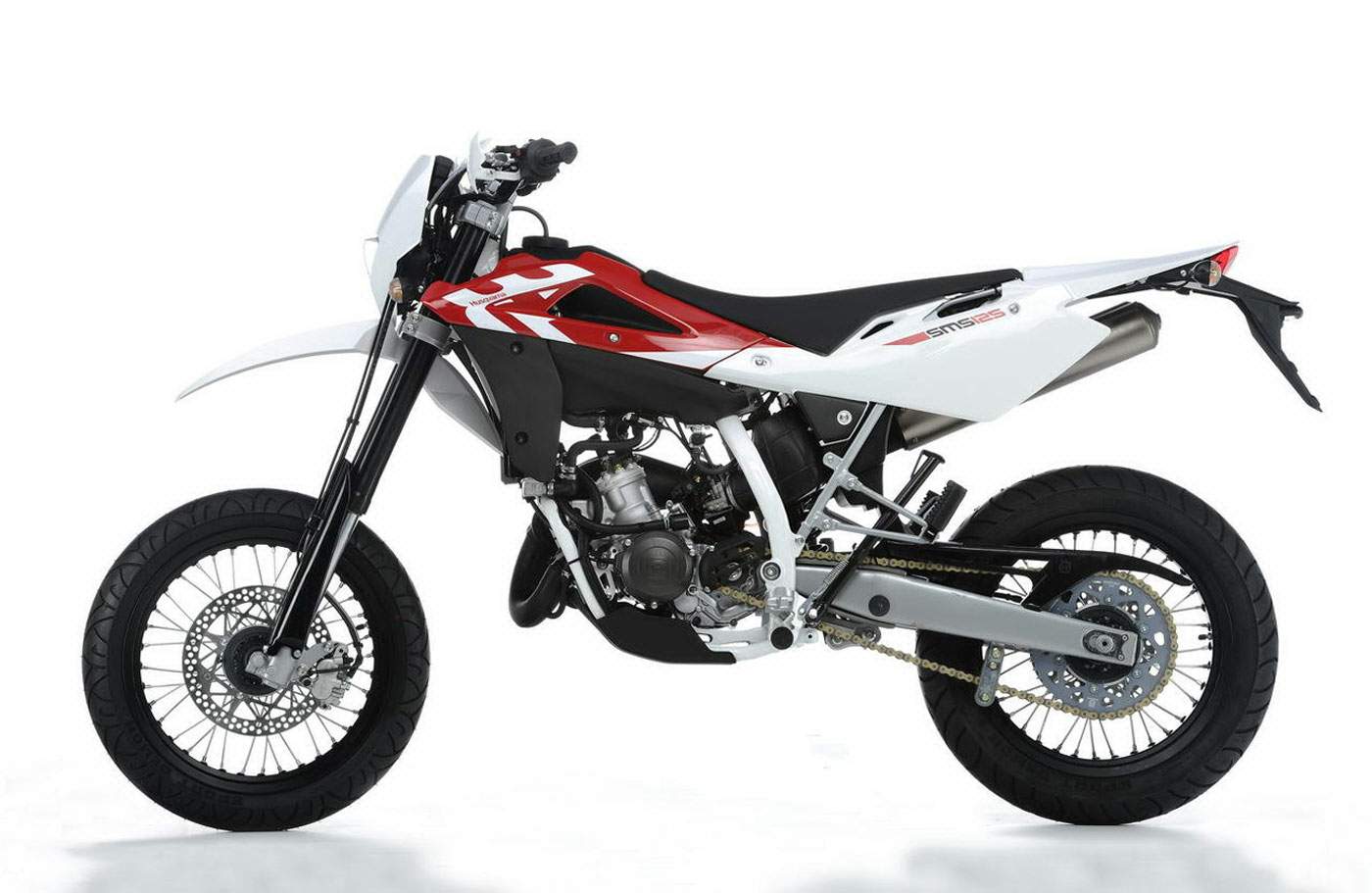

Husqvarna SMS 125







Make Model

Husqvarna SMS 125

Year

2011 - 12

Engine

Four stroke, single cylinder, SOHC, 4 valve

Capacity

124.4 cc / 7.6 cu-in
Bore x Stroke 52 x 58.6 mm
Cooling System Liquid cooled
Compression Ratio 11.2:1

Induction

Carburettor KEIHIN 29

Ignition

CDI
Starting Electric
Spark plug NGK CR 8E

Max Power

11kW /15 hp @ 9000 rpm

Max Torque

12.1 Nm / 9.0 lb-ft @ 8000 rpm
Clutch Wet,multiplate type; hydraulic control

Transmission

6 Speed
Final Drive Chain
Gear Ratio 1st 2.833 (34/12) 2nd 1.875 (30/16)  3rd 1.364 (30/22)  4th 1.143 (24/21)  5th 0.957 (22/23)  6th 0.840 (21/25
Frame TypeDouble tube cradle with high resistance steel round tubes; rear frame with steel square tubes

Front Suspension

Marzocchi Upside-Down telescopic hydraulic fork with advanced axle, 250 mm wheel travel

Rear Suspension

Progressive "Soft Damp" type with single hydraulic shock absorber; spring preload adjustment.
Rear Wheel Travel 290 mm / 11.4 in

Front Brakes

Single 260mm disc 4 piston caliper

Rear Brakes

Single 220mm disc 2 piston caliper

Front Tyre

110/70 -17

Rear Tyre

150/60 -17
Seat Height 900 mm  / 35.4 in

Dry Weight

118 kg  / 259 lbs

Fuel Capacity

9.5 Litres / 2.5 US gal

The SMS 125 has become an icon for sixteen-year-olds, a sales phenomenon and a new fashion.

The SMS 125 has become an icon among young first time bikers, a commercial hit and a new fashion must. It is the starting point for those who want to savour the thrills of an offroad style bike, but is also ideal for everyday commuting in town. Easy to ride, light and easily handled, the 2011 version of the SMS 125 has what it takes to confirm its status as category leader.

The bike is available in two colour schemes. The red and white colour scheme shared byall Husqvarna off-road models is now enhanced by the addition of bodywork graphics using"In–Mould Decoration", integrated to the plastic itself. The black and white version hasalso In-Mould Decoration. The bike is fitted with new handlebar guards.

The white chassis and anodised black hubs make the 2-stroke look more like its 4-strokebig brother. The tried and tested 125cc engine has been refined and brought up to datewith improvements derived from racing models, especially in terms of pick-up and powerat low to medium revs.

The SMS 125 comes with the ECS electronic carburetion system, an integrated system forelectronic control of the fuel mix (both air/petrol and petrol/oil), developed incollaboration with Dell'Orto. The unit also controls the ignition system. This enables the2-stroke SMS 125 to meet Euro 3 requirements, contains costs, boosts commercialcompetitiveness and maintains all the advantages typical of 2-stroke engines: lightness,performance and low running costs. The new exhaust and silencer is derived from the125cc racing CR/WR.

The suspension now features new Marzocchi front forks, specially developed for thismodel, further enhanced by the Sachs shock absorber with new calibration allowing greater flexibility and support.

The rear light is LED and there is a new registration plate holder. The front light housing has also been redesigned and the headlight has a more powerful beam.
