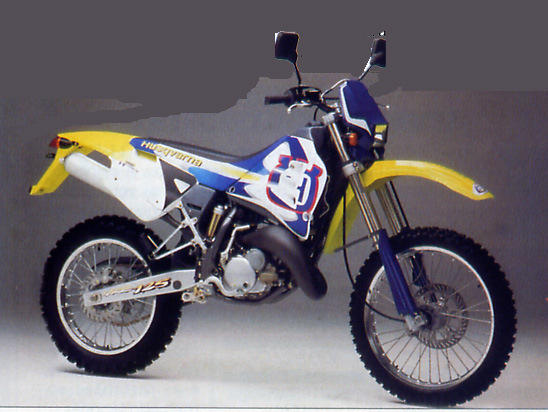

Husqvarna WR 125

.

Make Model

Husqvarna WR 125

Year

1998 - 01

Engine

Two stroke, single cylinder.

Capacity

124.8 cc / 7.6 cu-in
Bore x Stroke 54 x 54 mm
Cooling System Liquid cooled
Compression Ratio 8.8:1

Induction

MIKUNI TMX 38 carburettor

Ignition

Digital
Starting Kick

Max Power

15 hp / 11.2 kW @ 10500 rpm
Clutch Wet plate

Transmission

6 Speed
Final Drive Chain
Frame Steel single tube cradle (round tubes); rear frame in light alloy

Front Suspension

Marzocchi "Upside-Down" telescopic hydraulic fork with advanced axle, compression and rebound stroke adjustment

Rear Suspension

Sachs progressive "Soft Damp" type with single hydraulic shock absorber, spring preload adjustment, compression and rebound adjustment

Front Brakes

Single 260mm disc

Rear Brakes

Single 220mm disc

Front Tyre

90/90 -21

Rear Tyre

140/80 -18
Wheelbase 1465 mm / 57.7 in
Seat Height 970 mm / 38.2 in
Ground Clearance 360 mm / 14.2 in

Dry Weight

99.5  kg / 220.5 lbs

Fuel Capacity

8.5 Litres / 2.2 US gal
