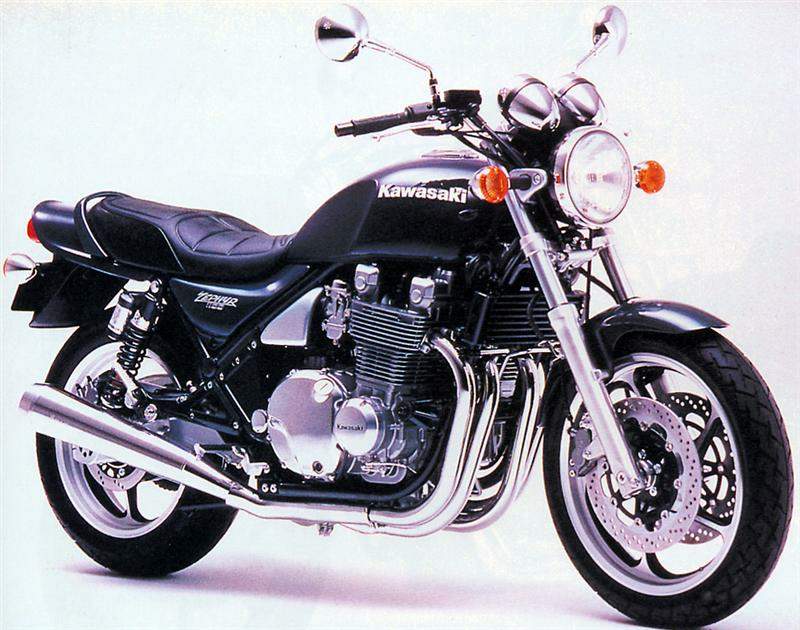

Kawasaki Zephyr 1100

.

Make Model

Kawasaki Zephyr 1100  /  ZR 1100

Year

1992 - 93

Engine

Four stroke transverse four cylinder. DOHC, 2 valves per cylinder.

Capacity

1062 cc / 64.8 cu-in
Bore x Stroke 73.5 x 62.6 mm
Cooling System Air cooled
Compression Ratio 9.1:1
Lubrication Wet sump
Engine Oil Mineral, 10W/40

Induction

4x Keihin CVK34

Ignition

Analogue CDI (Capacitive Discharge Ign.)
Spark Plug NGK, CR9E
Starting Electric

Max Power

93 hp / 67.8 kW @ 8000 rpm

Max Torque

89 Nm / 9 kg-m @ 7000 rpm
Clutch Wet, multiple discs

Transmission

5 Speed
Final Drive Chain
Frame Steel, Single cradle frame

Front Suspension

43mm Telescopic  forks

Rear Suspension

Dual shocks adjustable preload and compression rebound damping

Front Brakes

2x 310mm discs  2 piston calipers

Rear Brakes

Single 240mm disc 2piston caliper

Front Tyre

120/70-18

Rear Tyre

160/70-17
Dimensions Length 2080 mm / 81.9 in
Width 755 mm / 29.7 in
Height 1095 mm / 43.1 in
Wheelbase 1435 mm / 56.5 in
Seat Height 795 mm / 31.2 in

Dry Weight

243 kg / 535.7 in
Wet Weight 266 kg / 586.4 lbs

Fuel Capacity

19 Litres / 5.0 gal

Consumption Average

15.1 km/lit

Braking 60 - 0 / 100 - 0

13.5 m / 38.8 m

Standing ¼ Mile

11.3 sec / 177.4 km/h

Top Speed

219.6 km/h / 136.4 mph
.

Kawasaki were the first Japanese company to look back on their own history for inspiration when designing new bikes. The result was the Zephyr range, introduced in 1991. The 550 and 750 Zephyrs, both styled like Kawasaki's muscle bikes of the 'seventies, sold well to people who were attracted to the simplicity and spirit of a 'seventies bike, but who wanted 'nineties reliability and a warranty. The 'retro' movement was born. But what real muscle bike fans wanted was the true successor to the hairy-chested Zl and the later Z1000.



They got it in 1992, with the Zephyr 1100.

In stark contrast to the firm's other flagship 1100,

the ZZ-R, the Zephyr is a model of simplicity,

consisting of little more than an engine, two wheels

and just enough other equipment to hold them

together. Visually, the Zephyr takes its styling cues from the Zl. But not a standard Zl. What Kawasaki did was to build a bike that incorporated all the modifications people made to their old Zeds as technology moved on and parts from later bikes became available.



So, the Zephyr has an alloy box-section swinging arm at the rear, operating remote reservoir twin shocks with adjustable damping. At the front, huge twin brake discs and four-piston calipers from the ZZ-R1100 are a far cry from the Zl's single front disc and single-piston caliper. Alloy wheels fitted with wide, sticky tyres complete the picture.

The result of all this attention to the running gear is a bike that's superbly balanced, with plenty of ground clearance for fast back-road riding, and impeccable low-speed manners. The Zephyr is a heavy bike, but it carries its weight low, making for good manoeuvrability The low seat and upright riding position help here, too - a relief for many after the race crouch of most modern sports bikes.



But it's the engine that gives the Zephyr its real character. The air-cooled unit is based on the old GPzllOO - strong, almost over-engineered, and still a favourite with drag racers and tuners. Freed from the need to produce awesome peak power figures for maximum speed, the engine designers were able to concentrate on getting smooth, strong, useable power from as little as 2,000rpm all the way up to the relatively lowly 9,500rpm red line.

The only concession to the technological advances made since the 'seventies is the air-cooled motor's twin plug set-up. The use of two spark plugs per cylinder helps improve combustion efficiency and beefs up an already fearsome midrange power curve -there are few bikes that give the same impression of arm-tugging acceleration as an 1100 Zephyr. In the real world, the Zephyr's power characteristics make it easy to drive off the line fast, or power hard out of turns without worrying what gear you're in.

If the midrange is impressive, the Zephyr's high speed manners are less so. Flat out at around 140mph, the combination of old-tech chassis and suspension components, and a riding position that turns you into a sail, means the Zephyr weaves and wobbles along seemingly on the very edge of control. Unless you want to lie flat on the tank, 130mph is a more realistic top speed, and the lack of a fairing means anything over 90mph is uncomfortable for long distances.



But paradoxically, it's this very aspect that makes the Zephyr so popular. Not everyone wants a bike that can do 170mph and handles so well you have to be a budding racer to take it to its limits. There's definitely a place for the Zephyr's low tech, low cost, high fun factor approach, as Honda, Suzuki and Yamaha have since proved by following Kawasaki's lead and producing their own contributions to the retro revolution.



Source of overview: Super Bikes by Mac McDiarmid
