Kawasaki Z-X10R Ninja World Champion Edition

.

Make Model

Kawasaki ZX-10R Ninja World Champion Edition

Year

2014

Engine

Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.

Capacity

998 cc / 60.9 cu-in
Bore x Stroke 76 x 55 mm
Compression Ratio 13.0:1
Cooling System Liquid cooled
Lubrication Forced lubrication, wet sump with oil cooler

Induction

DFI® with four 47mm Keihin throttle bodies with oval sub-throttles, two injectors per cylinder

Ignition

TCBI with digital advance and Sport-Kawasaki Traction Control (S-KTRC)
Starting Electric

Max Power

199.8 hp / 147 kW @ 13000 rpm

Max Torque

114.3 Nm / 11.62 kg-m @ 1150 rpm
Clutch Wet multi-disc, manual

Transmission

6 Speed
Final Drive Sealed Chain
Primary Reduction Ratio  1.681 (79/47)
Gear Ratio 1st 2.600 (39/15)   2nd 2.053 (39/19)   3rd 1.737 (33/19)   4th 1.571 (33/21)  5th 1.444 (26/18)  6th 1.348 (31/23)
Frame Twin spar, cast aluminium
Final reduction Ratio  2.294 (39/17)

Front Suspension

43mm Big Piston Fork (BPF), rebound, compression and spring preload adjustability.
Front Wheel Travel 120 mm / 4.7 in

Rear Suspension

Horizontal Back-link. High/low-speed compression, rebound and preload adjustable. 4.9in wheel travel
Rear Wheel Travel  140 mm / 5.5 in

Front Brakes

2x 310 mm petal discs, radial-mount  4-piston calliper

Rear Brakes

Single 220mm petal disc

Front Tyre

120/70 ZR17

Rear Tyre

190/55 ZR17
Rake 25.°
Trail 109.9 mm / 4.2 in
Dimensions Length 2075 mm  /  81.7 in
Width   715 mm  / 28.0 in
Height  1115 mm  / 43.9 in
Wheelbase 1425 mm / 56.1 in
Ground Clearance 135 mm  / 5.3 in
Seat Height 812 mm / 32 in

Wet Weight

198 kg / 436.3 lbs  ABS 201 kg / 443.2 lbs

Fuel Capacity

17 Litres /  4.5 US gal

Consumption Average

16.4 km/lit

Standing ¼ Mile

10.4 sec

Top Speed

296.6 km/h / 184.3 mph

.

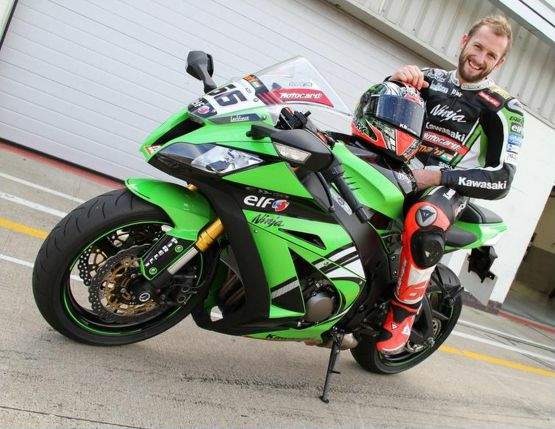

2013 witnessed Tom Sykes becoming the World Superbike Champion onboard his Kawasaki Ninja ZX-10R. In what was a fantastic year, with 9 race wins and 8 pole positions along the way, Tom and the KRT racing team created something to truly celebrate and remember.

To echo that celebration, Kawasaki Motors UK and Tom Sykes are now creating a Ninja ZX-10R “World Champion Edition” limited to just 25 examples in total and priced at just £550 over the normal retail price making the non-ABS machine £12,749.

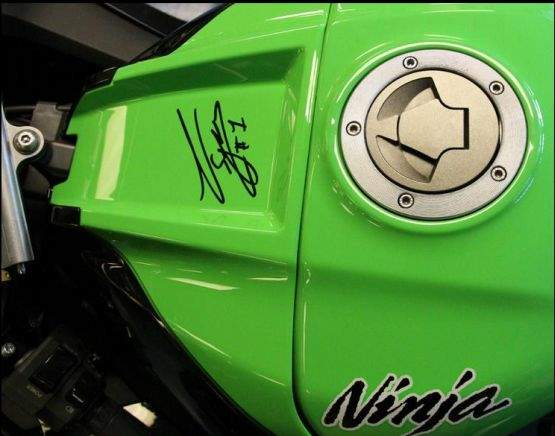

The bikes will be liveried using a 2013 KRT graphics kit, fitted with a Leo Vinci EVO 2 exhaust plus a Kawasaki tank pad. Additionally, each of the bikes will also be supplied with an extra air-box cover signed by Tom Sykes and an official, personally signed, letter of authentication.

As a final finishing touch, special plaques have been commissioned for the machines with a lazer-etched Championship emblem and a declaration that they are part of the Limited Edition run.

Having re-gained the WSBK Championship after a break of two decades, Sykes is naturally keen to celebrate the fact commenting;

“Last year was a dream come true and it's great to be a part of Kawasaki's racing heritage. Now we have created these limited edition bikes, twenty five people can get hold of a little piece of Ninja history for themselves.”

Craig Watson of Kawasaki added;
“This is Kawasaki's first World Superbike Championship win for twenty years. It's only fitting that, in his home country, there's a limited edition bike in honour of Tom's achievement”.
