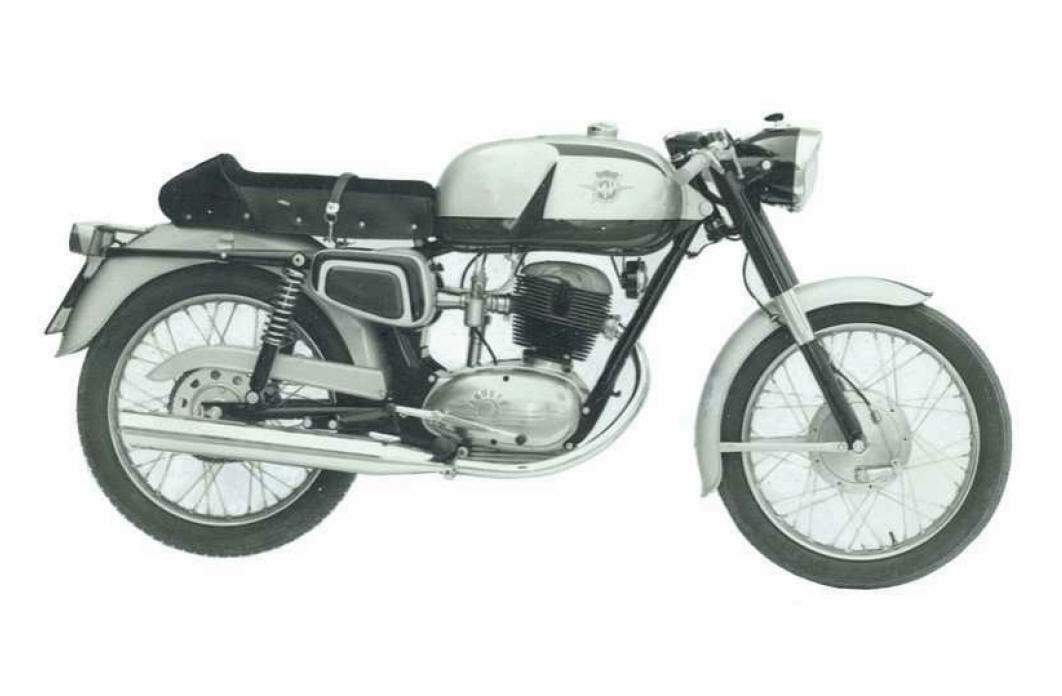

MV Agusta 125 GTL 5 VelocitÓ







Make Model

MV Agusta 125 GTL 5 VelocitÓ

Year

1966 - 68

Engine

Four stroke, single cylinder, pushrod, 2 valve

Capacity

123 cc / 7.5 cu-in
Bore x Stroke 53 x 56 mm
Cooling System Air cooled
Compression Ratio 10.0:1

Induction

22mm Carburettor
Starting Kick

Max Power

6.7 kW / 9 hp @ 6000 rpm

Transmission

5 Speed

 Final Drive

Chain
Frame Tube steel frame

Front Suspension

Telescopic forks.

Rear Suspension

Swing arm with dual dampers.

Front Brakes

152mm Drum

Rear Brakes

122mm Drum

Front Tyre

2 75- 18

Rear Tyre

2.75- 18
Dimensions
Length  1920 mm / 75.5 in
Width    620 mm / 24.4 in
Wheelbase 1280 mm / 50.3 in

Dry Weight

108 kg / 238 lbs

Fuel Capacity

15 Litres / 3.9 US gal
