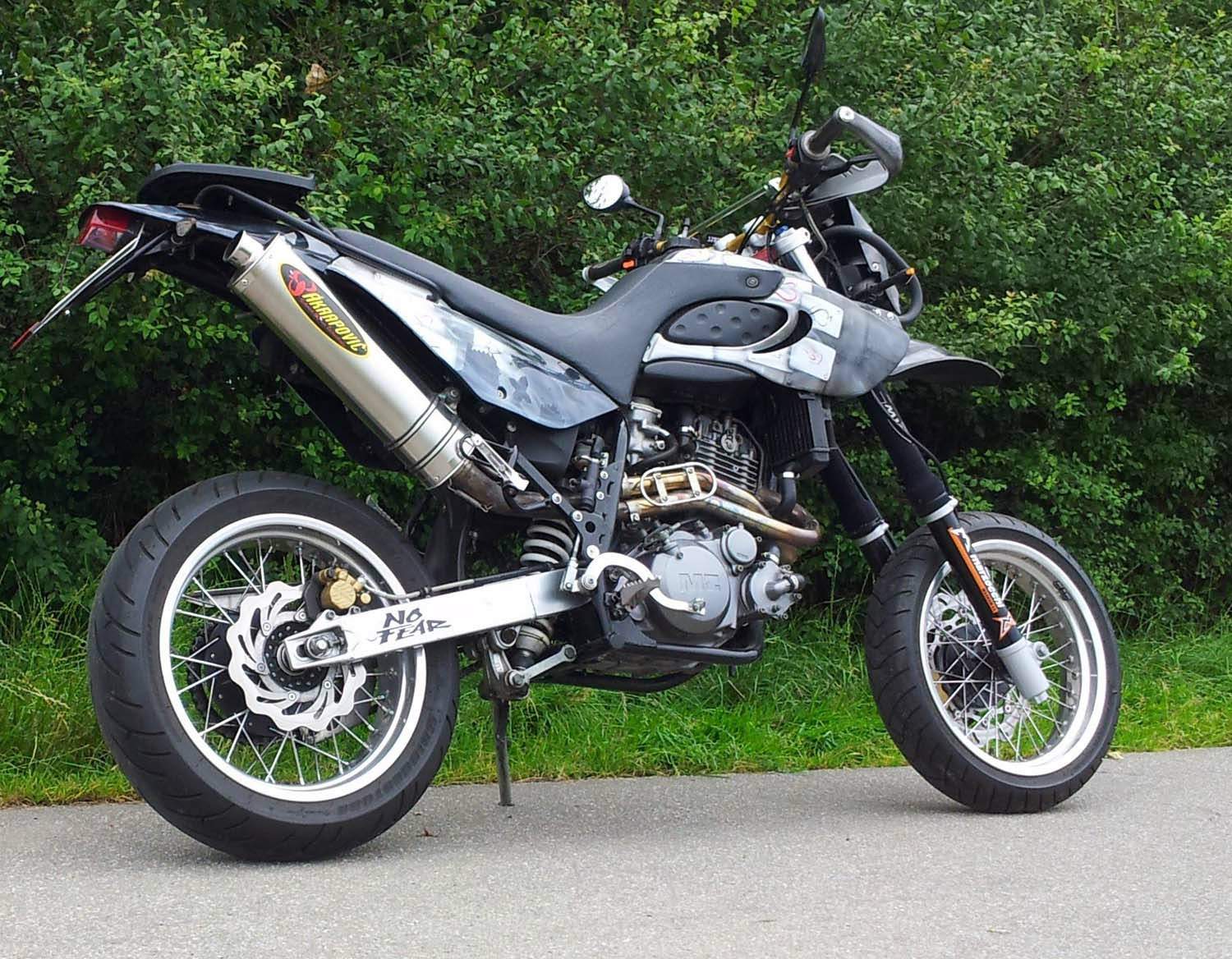

MZ Baghira 660 Black Panther







Model

MZ Baghira 660 Black Panther

Year

1999 - 09

Engine

Four stroke, single cylinder, SOHC, 5 valves

Capacity

660 cc / 40.2 cu-in
Bore x Stroke 100 x 84 mm
Cooling System Liquid cooled
Compression Ratio 9.2:1
Lubrication Wet sump

Induction

35mm Carburetor

Ignition

Electronic CDI
Starting Electric

Max Power

50 hp / 36.4 kW @ 6500 rpm

Max Torque

57 Nm / 42.0 lb-ft @ 5250 rpm
Clutch Wet, multiple discs, cable operated

Transmission

5 Speed
Final Drive Chain
Frame Steel, Single cradle frame

Front Suspension

Paioli 45mm telescopic fork
Front Wheel Travel 280 mm / 10.2 in

Rear Suspension

White Power gas-suspension mono-shock
Rear Wheel Travel 280 mm / 11.0 in

Front Brakes

Single 298mm disc 2 piston caliper

Rear Brakes

Single 245mm disc 1 piston caliper

Front Tyre

120/70-17

Rear Tyre

160/60-17
Fork Angle 62°
Trail 94 mm / 3.7 in
Wheelbase 1530 mm / 60.2 in
Seat Height 900 mm / 35.4 in

Dry Weight

164 kg / 361.5 lbs

Fuel Capacity

12.5 Litres / 3.3 US gal
