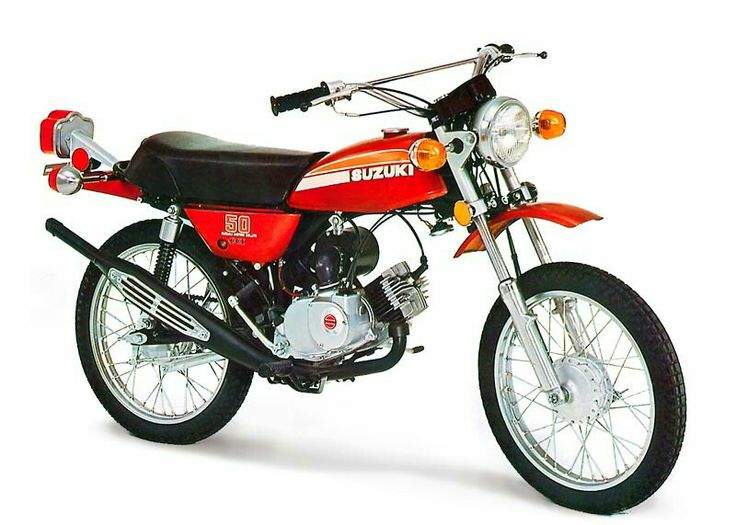

Suzuki A50P/PD









Make Model.

Suzuki A 50 P/D

Year

1979

Engine

Two stroke, piston valve, single cylinder

Capacity

49 cc / 3.0 cu in

Cooling System

Air cooled

Bore x Stroke

41 x 37.8 mm

Lubrication System

Separate oil injection

Induction

Mikuni VM10sc

Starting

Kick

Clutch

Wet, multiplate

Transmission

4-Speed, constant mesh

Final Drive

Chain

Frame

Pressed steel

Front Suspension

Telescopic fork, oil damped (PD: rubber muffler covering forks)

Rear Suspension

Swingarm, oil damped (PD: shocks/springs)

Front Brakes

Drum, 110 mm / 4.3" (PD: Single 220 mm / 7.7" disc)

Rear Brakes

Internal expanding drum, 110 mm / 4.3"

Front Tyre

2.25-17

Rear Tyre

2.50-17

Fuel Capacity

7.5 L / 2.0 US gal
Fuel Reserve 2 L / 0.5 US gal
