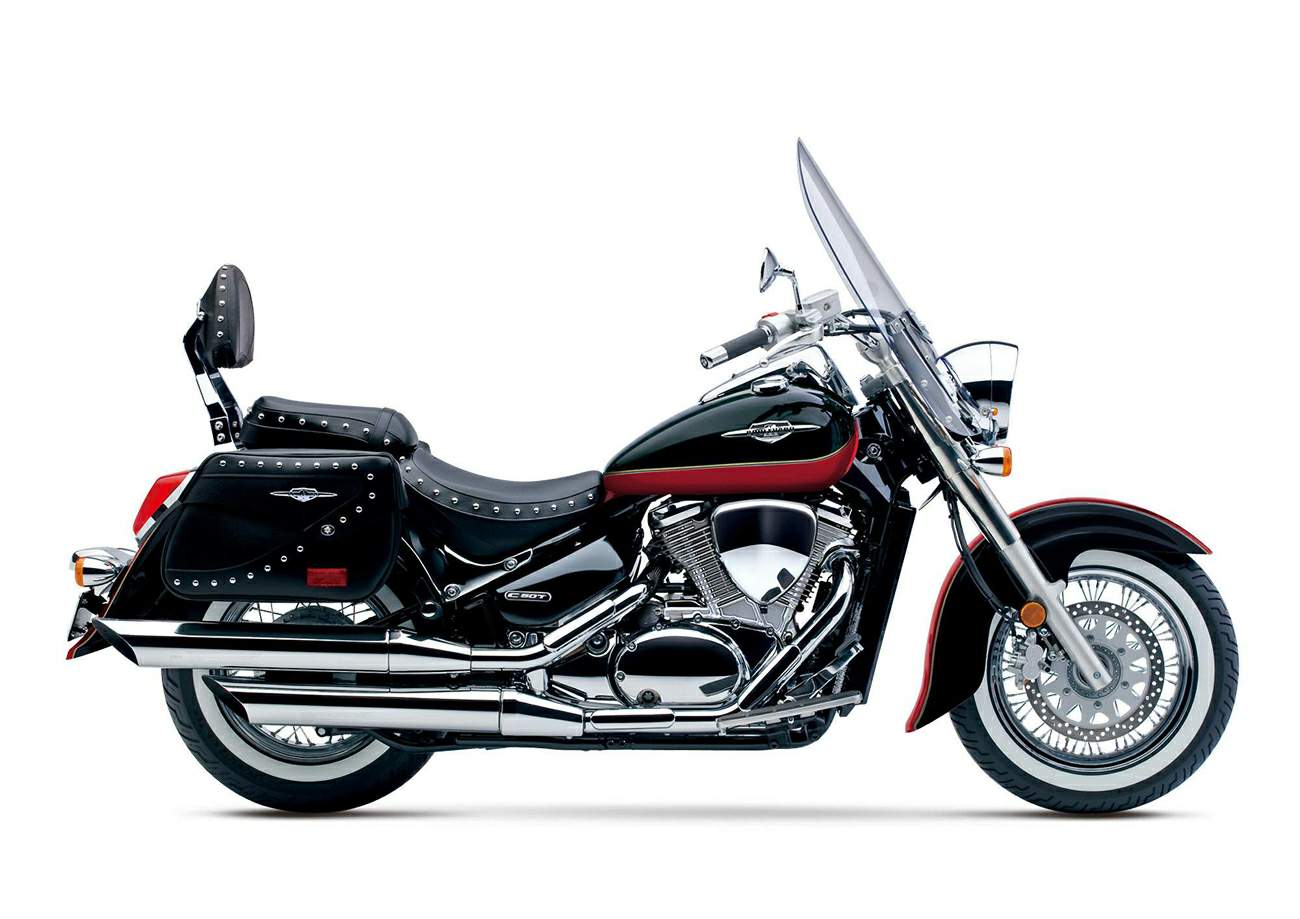

Suzuki Boulevard C50T









Make Model

Suzuki Boulevard C50T

Year

2013 - 14

Engine

Four stroke, 45° V-Twin

Capacity

805cc / 49.1 cu-in
Bore x Stroke 83 x 74.4 mm
Cooling System Liquid cooled
Compression Ratio 9.4:1
Lubrication Wet sump

Induction

Mikuni BDSR34

Ignition

Electronic
Starting Electric

Max Power

39 kW / 52 hp @ 6000 rpm

Max Torque

69 Nm / 7.04 kgf-m / 51 lb/ft @ 3200 rpm
Clutch Wet, multiple discs, cable operated

Transmission

5 Speed
Final Drive Shaft

Front Suspension

Telescopic forks, coil spring oil damping

Rear Suspension

Link-type single shock, 7-way adjustable preload

Front Wheel Travel

140 mm / 5.5 in

Rear Wheel Travel

104 mm / 4.1 in

Front Brakes

Single disc, 2 piston caliper

Rear Brakes

Drum

Front Tyre

130/90-16M/C 67H, tube type

Rear Tyre

170/80-15M/C 77H, tube type
Rake

33°

Trail

140 mm / 5.5 in

Dimensions

Length: 2500 mm / 98.4 in

Width:     985 mm / 38.8 in

Wheelbase 1655 mm / 65.2 in
Seat Height 700 mm / 27.6 in.
Ground Clearance 140 mm / 5.5 in

Wet Weight

292 kg / 542 lbs

Fuel Capacity

15.5 Litres / 4.1 US gal

Climb aboard a true classic. Kick back and enjoy the timeless style that made riding synonymous with freedom. It’s all about the laid-back stance, broad saddle, and that irresistible V-twin rumble.

With the Boulevard C50T you'll find yourself equally at home on either the boulevard or the interstate. The C50T is a classic cruiser with bold styling that stands out in a crowd and with a long list of features that make it ideal for comfortable long-distance cruising. Its spacious riding position and smooth suspension encourage you to take to the open highway for long-range cruising in maximum comfort. Its aerodynamic windshield, custom-made leather saddlebags and well-padded backrest are designed especially for passenger comfort. It also boasts a fuel-injected, 45-degree, V-twin engine that cranks out abundant torque down low, matched by exciting top-end performance. Take one ride on a C50T and you'll discover for yourself the thrill of cruising the open highway in style and comfort.

Cruiser Complete

The Boulevard C50T 'Touring' captivates from the very first glance. With its elegant two tone paint work and glistening chrome it is sure to make an impression among the Sunday group ride.

The touring features include two tone paintwork, white wall tyres, white meter face and studded seat trim.

The range of Suzuki genuine accessories for Boulevard C50 will also fit the all new C50T, and make for the complete touring outfit.

Down the boulevard or out on the highway, the C50T's V-twin powerplant is engineered for pure excitement. With strong low-end and mid-range torque, it accelerates hard from just above idle. Yet, thanks to its advanced engineering, it's incredibly smooth at highway cruising speeds.

It's time to discover how good a classic touring cruiser can be with the Boulevard C50T.

Suzuki Boulevard C50T Key Features

A custom-designed, height -adjustable windshield provides classic styling with unique chrome garnish with Boulevard emblems and offers full wind protection.

Large-capacity, textured-leather saddlebags with Boulevard emblems and convenient twist-lock fasteners provide plenty of storage capacity.

Eye-catching studded seats, plus matching touring-style backrest with unique pivoting backrest pad for increased comfort.

805cm3, SOHC, 4-valve-per-cylinder, 45-degree V-Twin engine tuned for sufficient/torque and comfortable riding. Its offset crankpins deliver perfectly balanced firing intervals while its liquid-cooling design boosts efficiency and economy.

Fuel injection ensures optimal fuel delivery, great throttle response and maximum power throughout the rpm range.

Cutting-edge 3D-mapped digital ignition system and throttle-position sensor enhance the hallmark big V-Twin low-down torque.

The efficient, clean-running engine and a large catalyzer allow to meet Euro 3 and Tier 2 emission standards.

Slick, wide-ratio 5-speed transmission and low-maintenance shaft drive transmit the engine power efficiently.

Chromed and staggered dual exhaust pipes with refined shape, tuned for good torque delivery while producing the throaty signature V-Twin rumble.

Low, gorgeous seat and swept-back handlebars designed for both round-town riding and weekend cruising.

Wide passenger seat makes for comfortable two-up rides.

Thick telescopic front forks with long 140mm (5.5-inch) wheel travel.

Progressive rear suspension with mono-shock absorber makes riding comfortable while mimicking the traditional rigid-tail look.

The instrument cluster includes a convenient gear-position indicator, a large fuel meter, and a clock always on display.

Styling incorporating timeless visual statements in the cruiser heritage: rich paintwork, glittering chrome and deep front and rear fenders with rounded ends.

Bright multi-reflector headlight and turn signals. Durable, efficient and compact LED taillight.

Suzuki Boulevard C50T Features and Benefits

Engine Features

Narrow 805cc, fuel injected, liquid-cooled, SOHC, four-valve-per-cylinder, 45-degree V-twin engine is tuned for exceptional low RPM power and torque.

32 bit ECM provides precise control of ignition timing and multi-hole-type injectors ensuring quick starts and excellent driveability under all conditions.

Suzuki Dual Throttle Valve (SDTV) electronic fuel-injection system maintains optimum air velocity in the intake tract for smooth low-to mid-RPM throttle response. Auto Fast Idle System (AFIS) automatically sets the throttle valve open during cold starts by monitoring coolant temperatures.

Suzuki Pulsed-secondary air-injection system (PAIR) introduces air into the exhaust ports to ignite unburned hydrocarbons and reduce emissions.

Chromed and staggered dual-exhaust system mounted on right side of engine provides a deep, rumbling exhaust note and strong torque.

Transmission Features

A wide-ratio five-speed transmission features a high fifth gear ratio for relaxed highway cruising.

Low-maintenance shaft drive is clean-running and offers low torque reaction.

Chassis Features

A cradle-type steel frame with color-matched side covers, fenders and fuel tank, plus numerous chrome-plated parts comes standard on the C50T.

Comfortable seating, thanks to a wide, well sculpted leather-textured spacious seat and low 27.6-inch seat height.

Wide handlebars and forward-mounted floorboards and foot controls provide a comfortable ride around town and on the highway.

Telescopic forks provide long 140mm (5.5-inch) of wheel travel. The forks also have polished aluminum sliders and polished stainless steel stanchion-tube covers for a distinct look.

Link-type rear suspension is shaped to mimic the hard-tail lines of a traditional cruiser, connecting a truss-style swing arm and a single shock absorber with 7-way spring preload adjustability providing 4.1 inches of smooth and responsive suspension travel.

A single front disc brake with a large 300mm rotor and 180mm rear drum brake provide strong braking performance.
