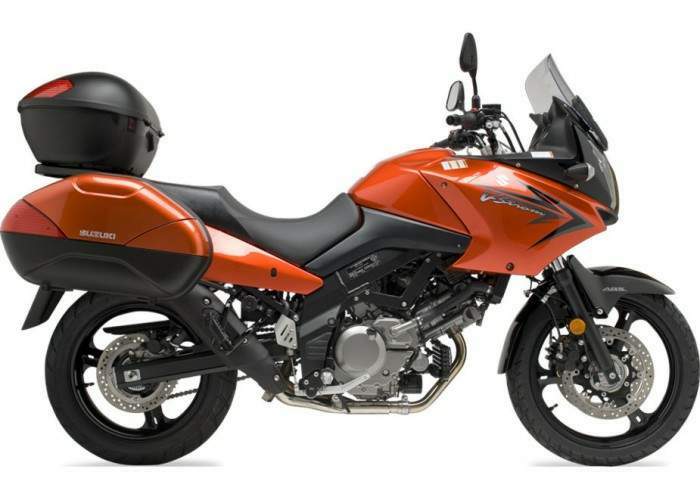

Suzuki DL 650 V-Strom Touring







Make Model.

Suzuki DL 650 V-Strom Touring

Year

2009

Engine

Four stroke, 90°-V-twin, DOHC, 4 valves per cylinder.

Capacity

645 cc / 39.4 cu-in
Bore x Stroke 81 x 62.6 mm
Cooling System Liquid cooled
Compression Ratio 11.5:1
Lubrication Wet sump

Induction

Fuel Injection 39 mm

Ignition

Electronic Ignition
Spark Plug NGK, CR8E
Starting Electric

Max Power

49 kW / 66.6 hp @ 8800 rpm

Max Torque

63.1 Nm / 6.4 kgf-m / 45.5 lb/ft  @ 7600 rpm
Clutch Wet, multiple discs, cable operated

Transmission

6 Speed
Final Drive Chain
Frame Aluminium, twin spar

Front Suspension

Telescopic, coil spring, oil damped, spring preload adjustable
Front Wheel Travel 160 mm / 6.2 in

Rear Suspension

Link type, oil damped, coil spring, spring preload fully adjustable, rebound damping force fully adjustable
Rear Wheel Travel 163 mm / 6.4 in

Front Brakes

2 x 310 mm disc, 2 piston calipers, ABS

Rear Brakes

Single 260 mm disc, 1 piston caliper, ABS

Front Tyre

110/80R19

Rear Tyre

150/70R17
Dimensions Length 2290 mm / 90.1 in
Width     840 mm / 33.0 in
Height  1390 mm / 54.7 in
Wheelbase 1555 mm / 61.2 in
Seat Height 820 mm / 32.3 in
Ground Clearance 165 mm / 6.4 in

Dry Weight

194 kg / 427.6 lbs
Wet Weight 220 kg / 485 lbs

Fuel Capacity

22 Litres / 5.8 US gal / 4.8 Imp gal

Standing ¼ Mile

13.2 sec

Top Speed

180 km/h / 112 mph


Suzuki V-Strom 650 SEA ABS Touring (2009 MY) is one of the best options to begin adventure. This bike combines the versatile performance of the V-Strom 1000 with exciting middleweight agility. It comes even more perfect in safety with Antilock Braking System (ABS) as standard.

Powered by a liquid-cooled 645 cc (39.4 cu. in), 4-stroke, DOHC, 90-degree V-twin, the engine is equipped with fuel injection system to make it even more performance and at the same time also efficient. The SV 650 based engine is equipped with high advanced technologies such as Auto Fast Idling System (AFIS), Suzuki Dual Throttle Valve System (SDTV) and SCEM (Suzuki Composite Electro-chemical Material).

Just push button, this 236 kg (520 lbs) bike will run in stability which comes from its Link-type rear suspension with adjustable rebound damping and 43mm front fork that also adjustable. The two disc brakes front and one rear, 2009 Suzuki V-Strom 650 SEA ABS Touring with color options of Black, Gray and Orange; and price of $9,999 CDN is ready to hit an adventure.

Features

Engine Features
Auto Fast Idling System (AFIS), automatically sets throttle valve opening during cold engine starts by monitoring coolant temperature
Digital ignition system provides optimum ignition timing with separate maps for each cylinder
Electronic fuel injection features the Suzuki Dual Throttle Valve System (SDTV) - maintains optimum air velocity in the intake tract for smooth low-to-mid rpm throttle response
High-efficiency liquid cooling system for optimum engine operating temperature - includes compact oil cooler
High-mounted stainless steel exhaust system with aluminum muffler tuned to enhance engine torque and low-to-midrange performance
Lightweight shim-under-bucket valve system operates 31mm intake and 25.5mm exhaust valves, plus valve timing with emphasis on low-rpm power
PAIR - air injection system reduces CO and HC emissions - California model equipped with catalyst in exhaust to further reduce emissions
Plastic outer clutch cover and engine sprocket cover for reduced weight and noise
SCEM (Suzuki Composite Electro-chemical Material) plated cylinders minimize cylinder size and improve heat dissipation
Smooth shifting 6-speed transmission with cable operated clutch - final drive ratio lowered from SV650 for improved low rpm performance
SV650-based 645cc 90-degree V-twin, DOHC 8-valve, liquid-cooled engine with dual-spark plug heads for improved combustion and reduced emissions

Chassis Features

  • Aluminum twin-spar frame and aluminum swingarm are lightweight, compact and rigid - bolt-on sub-frame simplifies maintenance

  • Black-painted frame and swingarm for stylish appearance

  • Compact step-motor speedometer and tachometer with LED illumination, plus LCD display for twin tripmeters, odometer temperature guage, fuel gauge and digital clock

  • Dual front disc brakes with large 310mm rotors and twin-piston calipers, plus single-disc rear brake with 260mm rotor and single-piston caliper

  • Height-adjustable windshield for maximum wind protection and comfort - can be manually adjusted to three positions in a 50mm vertical range

  • Large 22.0 L (4.8 Imp gal) fuel tank for long-range operation

  • Large rear luggage rack with rubber-padded platform to help keep bags and luggage in place

  • Lightweight cast aluminium wheels - F: 2.50 x 19 with 110/80R-19 radial tyre, R: 4.0 x 17 with 150/70R-17 rear tire

  • Link-type rear suspension features a single shock absorber with adjustable rebound damping and a knob-operated hydraulic preload adjuster for easy adjustment

  • Preload-adjustable 43mm front fork for a comfortable ride under all riding conditions

  • Slim and compact front fairing for maximum wind protection, plus large comfortable seat - fairing includes large multi-reflector 60/55W headlights

Auto Fast Idling System (AFIS), automatically sets throttle valve opening during cold engine starts by monitoring coolant temperature
Digital ignition system provides optimum ignition timing with separate maps for each cylinder
Electronic fuel injection features the Suzuki Dual Throttle Valve System (SDTV) - maintains optimum air velocity in the intake tract for smooth low-to-mid rpm throttle response
High-efficiency liquid cooling system for optimum engine operating temperature - includes compact oil cooler
High-mounted stainless steel exhaust system with aluminum muffler tuned to enhance engine torque and low-to-midrange performance
Lightweight shim-under-bucket valve system operates 31mm intake and 25.5mm exhaust valves, plus valve timing with emphasis on low-rpm power
PAIR - air injection system reduces CO and HC emissions - California model equipped with catalyst in exhaust to further reduce emissions
Plastic outer clutch cover and engine sprocket cover for reduced weight and noise
SCEM (Suzuki Composite Electro-chemical Material) plated cylinders minimize cylinder size and improve heat dissipation
Smooth shifting 6-speed transmission with cable operated clutch - final drive ratio lowered from SV650 for improved low rpm performance
SV650-based 645cc 90-degree V-twin, DOHC 8-valve, liquid-cooled engine with dual-spark plug heads for improved combustion and reduced emissions
