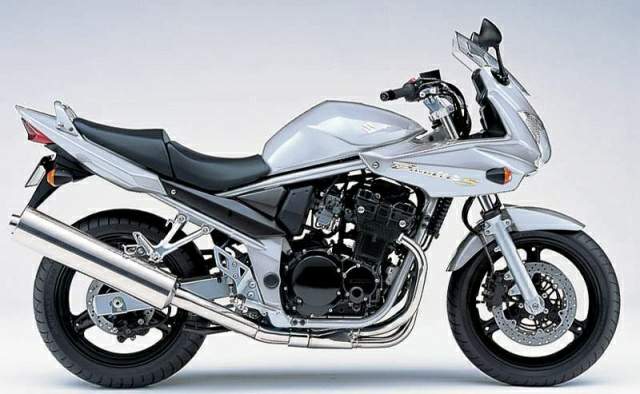

Suzuki GSF 650S Bandit

.

Make Model

Suzuki GSF 650S Bandit

Year

2005 - 06

Engine

Air/oil cooled, four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.

Capacity

656cc / 40.0 cu in
Bore x Stroke 65.5 x 48.7 mm
Compression Ratio 10.5:1
Cooling System Air/oil cooled

Induction

4 x Keihin CVR 32 carburetors

Ignition

Digital transistorized

Starting

Electric

Max Power

57.4 kW / 77 hp @ 10500 rpm

Max Torque

54 Nm / 5.5 kgf-m / 39.8 lb-ft @ 9500 rpm

Transmission

6 Speed

Final Drive

Chain

Frame

Double cradle

Front Suspension

41mm Telescopic fork, preload fully adjustable

Rear Suspension

Link type, oil damped, mono-shock, spring pre-load 7-way adjustable, rebound damping 4-way adjustable

Front Brakes

2 x 290 mm Discs, 2 piston calipers

Rear Brakes

Single 240 mm disc, 2 piston caliper

Front Tyre

120/70 ZR17

Rear Tyre

160/60 ZR17

Dimensions

Length: 2110 mm / 83.1 in
Width:     770 mm / 30.3 in
Height:  1090 mm / 42.9 in

Wheelbase

1440 mm / 56.7 in

Ground Clearance

130 mm / 5.1 in

Seat Height

770 - 790 mm / 30.3 - 31.1 in

Dry Weight

204 kg / 450 lbs

Fuel Capacity

20 Litres / 5.3 US gal / 4.4 Imp gal

Consumption Average

4.8 L/100 km / 20.9 km/l / 49.2 US mpg / 59.0 Imp mpg

Standing ¼ Mile

12.5 sec

Top Speed

198.7 km/h / 123.5 mph
