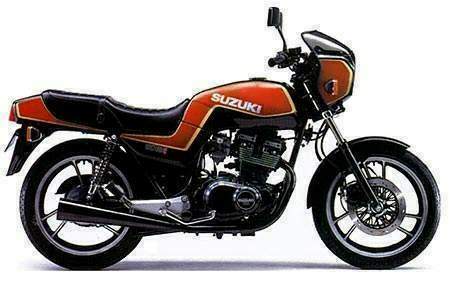

1982 Suzuki GSX400E

Make Model	Suzuki GSX 400E - D
Year	1982 - 83
Engine	Four stroke, parallel twin, DOHC, 4 valves per cylinder.
Capacity	398 cc / 24.3 cu in
Bore x Stroke	67 x 56.6 mm
Cooling System	Air cooled
Compression Ratio	10.5:1
Lubrication	Wet sump
Oil Capacity	3.0 Litres / 3.2 US qt / 2.6 Imp qt
Induction	2 x Mikuni BS34SS carburetors
Ignition	Transistorized
Starting	Electric
Max Power	32.8 kW / 44 hp @ 9500 rpm
Max Torque	36.3 Nm / 3.7 kgf-m 26.8 lb-ft @ 8000 rpm
Clutch	Wet multiple plates, coil spring
Transmission	6 speed constant mesh
Final Drive	Chain
Gear Ratio	1st 2.461 / 2nd 1.777 / 3rd 1.380 / 4th 1.125 / 5th 0.961 / 6th 0.851:1
Primary Drive Ratio	2.714
Secondary Drive Ratio	2.933
Frame	Double cradle
Front Suspension	Air assisted telescopic forks
Rear Suspension	Dual shocks, preload adjustable
Front Brakes	Single disc
Rear Brakes	Drum
Front Tyre	3.60S-18 4PR
Rear Tyre	4.10S-18 4PR
Caster	27.5⁰
Trail	102 mm / 4.02 in
Dimensions	Length 2105 mm / 82,9 in Width 755 mm / 29,7 in Height 1070 mm / 42,1 in
Wheelbase	1415 mm / 55,7 in
Dry Weight	175 kg / 386 lbs
Fuel Capacity	16 Litres / 4.2 US gal / 3.5 Imp gal
Consumption Average	5.2 L/100 km / 19.1 km/l / 45 US mpg / 64 Imp mpg
Standing ¼ Mile	15.2 sec
Top Speed	158 km/h / 98 mph

The 1982 Katana styled GSX400E was offered in the Katana silver or red. Appart from the "sweet Katana" estetics, there were some technical changes:
1) New ignition fully electronic (previous one had a mechanical centrifugal advance system) and ignition advance goes to 30º from previous 20º
2) Carburation tuned to adapt it to exhaust modifications
3) Electrical fuel tank gauge
4) New frame, special mention to rear swinging arm getting 40 mm longer
5) Steering column strongly triangled, turning on conical bearings
6) Anti-dive front fork
7) Engine cover screws changed from cross to hexicon head

The changes in the motor and cycle parts make it a more consistent and brilliant bike.

Originally the GSX400E was offered with a single disk front brake and a anti-dive system fitted on the left side only. Because of the construction, according to some owners, the front fork felt strange at full braking from high speed. The single disk was good enough for stopping the bike but a version with double-disk and anti-dive system for both sides was available for the GSX400E from 1982 year's model in order to get rid of the odd behavior.

1983 Suzuki year code: D, GSX400ED, GSX400E-5
In 1983 the GSX400E got new type of cast wheels and a black-coated engine. Probably even the instrument panel got a new design. The paint scheme was new but mechanically the model remained unchanged.

As earlier, a model version called GSX400S with a small fairing was offered for those who wanted some protection against the wind.

Source suzukicycles.org
