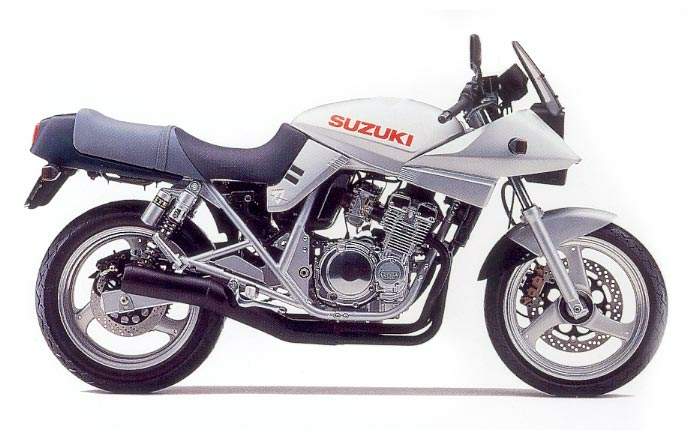

Suzuki GSX 250 SSN Katana

Make Model	Suzuki GSX 250 SSN Katana
Year	1992 - 93
Engine	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity	248 cc / 15.1 cu in
Bore x Stroke	49 x 33 mm
Compression Ratio	12.5:1
Cooling System	Liquid cooled
Lubrication System	Wet sump
Induction	4 x Slingshot BST29
Ignition	Transistor
Starting	Electric
Max Power	29 kW / 40 hp @ 13500 rpm
Max Torque	26 Nm / 2.7 kgf-m /19.2 lb-ft @ 10000 rpm
Clutch	Wet, multi-plate, cable operated
Transmission	6 Speed
Final Drive	Chain, 108 links
Frame	Steel pipe, double cradle
Front Suspension	Telescopic forks
Rear Suspension	Full floater
Front Brakes	Single 310 mm disc, 2 piston calipers
Rear Brakes	Single 210mm disc, 1 piston caliper
Front Wheel	2.50 - 17
Rear Wheel	3.50 - 17
Front Tyre	110/80-R17 52H
Rear Tyre	130/70-R17 62H
Rake	26^o
Trail	103 mm / 4.1 in
Dimensions	Length: 2060 mm / 81.1 in Width: 685 mm / 27.0 in Height: 1160 mm / 45.7 in
Wheelbase	1435 mm / 56.5 in
Ground Clearance	125 mm / 4.9 in
Seat Height	770 mm / 30.3 in
Dry Weight	160 kg / 352 lbs
Fuel Capacity	17 Litres / 4.5 US gal / 3.7 Imp gal
Top Speed	180 km/h / 112 mph

Suzuki GSX-R 250R SSN Katana
