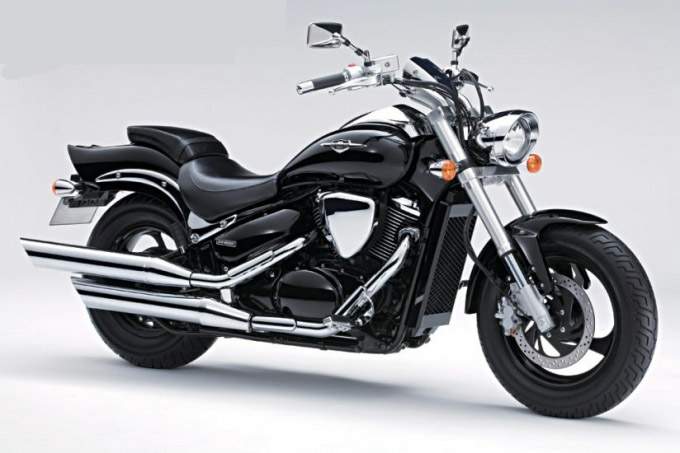

Suzuki Intruder M800

.

Make Model

Suzuki Intruder M800

Year

2005 - 07

Engine

Four stroke, 45° V-Twin

Capacity

805 cc / 49.1 cu in
Bore x Stroke 83 x 74.4 mm
Compression Ratio 9.4:1
Cooling System Liquid cooled
Lubrication System Wet sump

Induction

Electronic fuel injection

Ignition

Electronic

Starting

Electric

Max Power

39 kW / 53 hp @ 6000 rpm

Max Torque

66.4 Nm / 6.8 kgf-m / 49 lb-ft @ 4000 rpm

Clutch

Wet, multi-plate

Transmission

5 Speed

Final Drive

Shaft

Front Suspension

Inverted telescopic, coil spring

Rear Suspension

Link type, oil damped, coil spring, spring preload 7-way adjustable

Front Brakes

Single 300 mm disc, 2 piston caliper

Rear Brakes

180mm Drum

Front Tyre

130/90-16

Rear Tyre

170/80-15

Rake 32.3o
Dimensions Length: 2370 mm / 93.3 in
Width:     860 mm / 33.9 in
Height:  1130 mm / 44.5 in
Wheelbase 1655 mm / 65.2 in
Ground Clearance 140 mm / 5.5 in
Seat Height 700 mm / 27.6 in

Dry Weight

245 kg / 540 lbs

Fuel Capacity

15.5 Litres / 4.1 US gal / 3.4 Imp gal

The M800 is one mid-sized cruiser that punches way above its weight. It also proves that cruisers don’t have to offer retro performance with their classic good looks.

That’s why the M800 shares technological advances from our Supersport range, including upside-down front-forks, an LED tail-light and fuel-injection that’s smooth and snatch-free. But in addition, ownership is even easier with a low maintenance driveshaft.

Engine Features
Fuel-injected, 50 cubic inch, eight-valve, liquid-cooled, 45 degree V-twin engine tuned for exceptional low rpm power and torque

GSX-R-derived electronic fuel injection system features the Suzuki Dual Throttle Valve System (SDTV) - maintains optimum air velocity in the intake tract for smooth low-to-mid rpm throttle response and high torque output - includes Auto Fast Idle System (AFIS)

32-bit ECM provides precise control of ignition timing and multi-hole-type injectors ensuring quick startup and excellent drivability under all conditions

Fuel injection system receives input from gear position sensor, water temp. sensor, air temp. sensor and intake port sensors for efficient power delivery and better fuel economy

Crankshaft designed with 45° offset crank pins to reduce engine vibration without a counterbalancer for a more comfortable ride

Five-speed transmission features a high fifth gear ratio for relaxed highway cruising

Custom-styled exhaust designed for a deep rumbling sound and tuned low rpm power

Low-maintenance shaft final-drive system is clean-running with low torque reaction

Pulsed-secondary air-injection system introduces air into the exhaust ports to ignite unburned hydrocarbons and reduce emissions - CA. spec. model is equipped with a catalyst for further emission reduction


Chassis Features
Soft-tail-style frame creates a continuous flowing line from the headlight, through the fuel tank, seat and rear fender

Sharp-edged-styled front fender adds to the clean look of the front end, while the bob-tail rear fender adds to the flowing lines at the rear

Long, wide 4.1 gallon fuel tank flows smoothly back to the seat -attractive raised fuel filler includes indicator lights for turn signals, high beam and low fuel

Handlebar-mounted speedometer styled for a clean appearance and positioned for good visibility

Wide, comfortable seat with low seat height - passenger seat can be removed for a bobbed rear fender appearance

Low-rise handlebars mounted on pull-back risers provide a comfortable reach for the rider and increased comfort around town or on the highway

Inverted, 41mm front fork for a performance look and comfortable ride - the only model in the class with an inverted fork

Link-type rear suspension connects to a truss-style swingarm and a single shock absorber with 7-way spring preload adjustment

Large LED-type taillight with a clear lens provides a modern custom look

Powerful multi-reflector headlight housed in an attractive case with stylish headlight rim - headlight switches off during startup to reduce load on battery

Bright bullet-style turn signals designed for high visibility and attractive appearance

Standard 4-way emergency flasher and high-beam passing switch

Black cast aluminum rims carry a wide 130/90-16 front tire and 170/80-15 rear tire

Single front disc brake with large 300mm rotor and 180mm rear drum brake for strong braking performance.
