Yamaha YZF-R 125

.

Make Model

Yamaha YZF-R 125

Year

2011

Engine

Four stroke, single cylinder, SOHC, 4 valve

Capacity

124 cc / 7.6 cu-in
Bore x Stroke 52 × 58.6 mm
Cooling System Liquid cooled
Compression Ratio 10.4:1

Induction

Fuel Injection
Oil Capacity 1.20 liters / 0.08 quarts)
Lubrication Wet sump

Ignition

TCI
Starting Electric

Max Power

12.6 kW / 17 hp @ 8500 rpm

Max Torque

15 Nm / 1.25 kg-m @ 7500 rpm
Clutch Wet Multiple-disc

Transmission

6 Speed
Final Drive Chain
Frame Delta box

Front Suspension

Telescopic forks
Front Wheel Travel 130 mm / 5.1 in

Rear Suspension

Swinging arm
Rear Wheel Travel 125 mm / 4.9 in

Front Brakes

Single 292mm disc

Rear Brakes

Single 230mm disc

Front Tyre

90/80 -17

Rear Tyre

130/70 -17
Caster 26°
Trail 98 mm
Dimension Height     970 mm / 38.2 in
Length  2015 mm / 79.3 in
Width     660 mm / 26.0 in
Wheelbase 1355 mm / 53.3 inc
Seat Height 810 mm / 31.8 in
Dry Weight 127 kg / 279 lbs

Wet Weight

136 kg / 299.8 lbs

Fuel Capacity

13.8 Litres / 3.6 gal



.

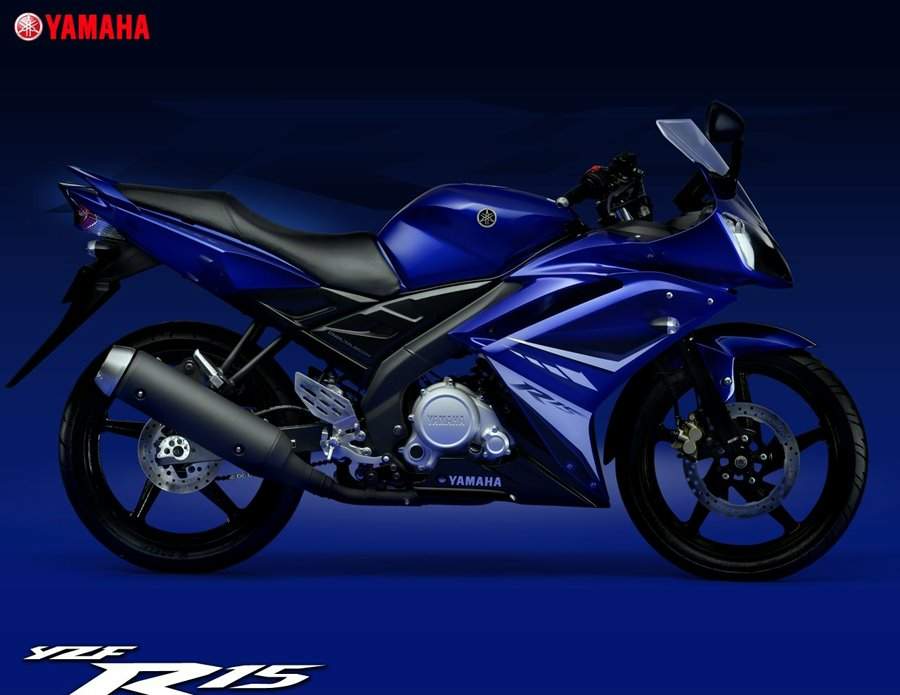

Joining its bigger siblings, the R1 and R6 in the 2011 line-up is Yamaha’s new YZF-R15 entry-level sports bike, a model aimed at beginner motorcycle riders “keen to own a piece of race bred heritage." The learner-friendly YZF-R15comes available in two color schemes, namely racing blue or midnight black.

Coming with a 12-month factory warranty and with a price tag of around US$3,900, the new baby YZF is powered by a 149.8cc single-cylinder fuel injected engine features four-valves, a single overhead cam, wet sump lubrication and has a 10.4:1 compression ratio.

A forged aluminium piston is in residence within the all-aluminium DiASil cylinder, which ensures improved thermal dynamics along with light weight and better reliability.

Paired to a six-speed manual gearbox, the lightweight bike weighs just 131 kg (289 lbs) wet. The manufacturer did not, however, reveal any performance details, but there is no doubt that it will come as a strong competitor.

The bike also comes with a 12-liter (3.17-gallon) fuel tank and a seat height of 790mm. The Japanese motorcycle maker also promises its new model has "a comfortable riding position for both pilot and pillion."

Review

Following the launch of the 2009 "big bang" R1, Yamaha has come up with a bike aimed squarely at every schoolboy who has a poster of its litre-class flagship plastered on his bedroom wall – the R15 (say it Are One-Five), a 149

One of the most compact spritzer set-ups on the market

.8cc single with all the edgy looks and lot of the technology that has put its big brother at the forefront of the Superbike wars.

It has a nickel-silicon plated barrel in place of an iron liner, a forged piston, a four-valve cylinder head, liquid cooling and electronic fuel-injection. The induction system uses only four sensors and a small 26-pin ECU to control a compact fuel pump and a six-hole injector, making it one of the most compact spritzer set-ups on the market.

Yamaha quotes 12.5kW at 8500rpm and 15Nm at 7500 for this hard-revving little single, all of which reaches the rear wheel through a wet clutch, six-speed gearbox and chain final drive. Top speed, it says, is about 140km/h (with a 60kg rider – don't expect a beefy SA schoolboy to get anywhere near that) and fuel consumption is quoted as 2
  .8 liters /100km – although the same caveat applies.

The frame geometry follows Yamaha's proven Deltabox layout (although in steel rather than the more expensive machines' CF-cast alloy) and the engine has one top and two rear rigid mounts, making it a stressed member and adding materially to the rigidity of the chassis.

Front suspension is by conventional cartridge forks but the rear wheel boasts a rising-rate linkage (unusual at this level), which makes it possible to carry a passenger without bottoming the suspension on every ripple, while braking is by disc on each wheel.

The R15, says Yamaha, was styled in the same studio as the R1 and R6. It's not a scaled down version of these class-leading sportsters but carries a lot of the same DNA in the upper fairing and tank areas.

The centre section of the body, by contrast, was designed primarily to optimise air-flow through the compact aluminium radiator and styled afterwards to provide the bike with more presence on the road than most single-cylinder commuters.



In profile a strong straight line running from steering head to rear axle and the vertical surfaces of the side panels and fuel tank combine to throw the visual emphasis on to the front wheel, just as with Yamaha's M1 MotoGP machine.

Source Motoring.co.za
