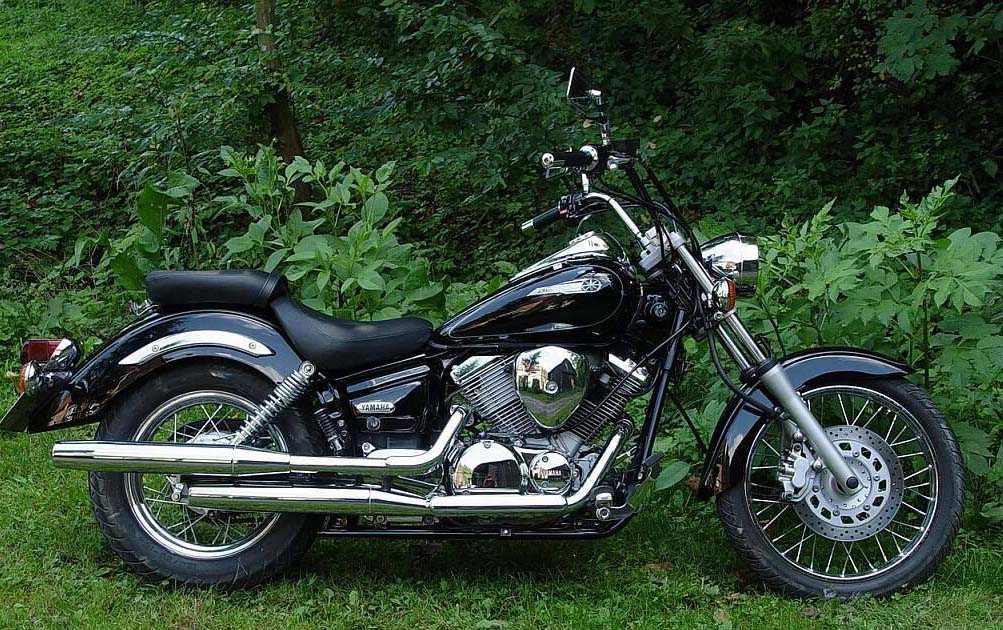

Yamaha XVS 125 Drag Star

.

Make Model

 Yamaha XVS 125 Drag Star

Year

2000 - 02

Engine

Four stroke, V-twin cylinder, SOHC, 2 valve per cylinder

Capacity

124 cc / 7.6 cu-in
Bore x Stroke 41 x 47 mm
Cooling System Air cooled
Compression Ratio 11.0;1

Induction

Carburetor

Ignition

TCI (Transistor Controlled Ignition)
Spark plug NGK, CR7HSA
Starting Electric

Max Power

13 hp /  9.5 kW @ 10000 rpm

Max Torque

9.4 Nm / 6.9 lb-ft @ 7500 rpm
Clutch Wet, multiple discs, cable operated

Transmission

5 Speed
Final Drive Chain

Front Suspension

Cartridge telescopic forks
Front Wheel Travel 140 mm/ 5.5 in

Rear Suspension

Dual shock, Swingarm
Rear Wheel Travel 100 mm / 3.9 in

Front Brakes

Single 282 mm disc

Rear Brakes

130 mm Drum

Front Tyre

80/100-18

Rear Tyre

130/90-15
Dimensions  Length 2320 mm / 91.3 in
Width    910 mm / 35.8 in
Height 1075 mm / 42.3 in
Wheelbase 1530 mm / 58.9 in
Seat Height 665 mm / 26.2 in

Dry Weight

135 kg / 297.6 lbs

Fuel Capacity

11 Litres / 2.9 US gal
