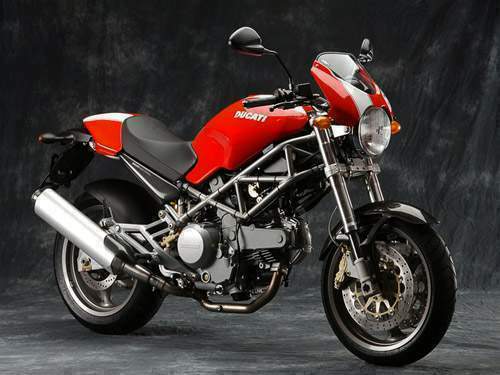

Ducati Monster 620 Capirex

Make Model	Ducati Monster 620ie Capirex
Year	2001
Engine	Four stroke, 90° “L” twin cylinder, SOHC, desmodromic 2 valves per cylinder
Capacity	618 cc / 37.7 cu in
Bore x Stroke	80 x 61.5 mm
Compression Ratio	10.5:1
Cooling System	Air cooled
Induction	Marelli electronic fuel injection 45 mm throttle body
Spark Plugs	RA 4 HC
Ignition	Marelli electronic
Starting	Electric
Battery	12V 10Ah
Max Power	41.8 kW / 57 hp @ 9500 rpm
Max Torque	53.3 Nm / 5.4 kgf-m / 39.3 ft-lb @ 6750 rpm
Clutch	Wet, multiplate
Transmission	5 Speed
Primary Drive Ratio	1.85:1(33/61)
Gear Ratios	1st 2.500 / 2nd 1.714 / 3rd 1.333 / 4th 1.074 / 5th 0.966:1
Final Drive Ratio	3.06:1 (15/46)
Final Drive	Chain
Front Suspension	43 mm Marzocchi upside-down fork
Rear Suspension	Progressive linkage with Sachs adjustable monoshock. Aluminium swing-arm. Height-adjustable rear axle
Front Brakes	2x 320 mm Discs, 4 piston calipers
Rear Brakes	Single 245 mm disc, 2 piston caliper
Front Tyre	120/60-17
Rear Tyre	160/60-17
Dimensions	Length: 2100 mm / 82.7 in Width: 794 mm / 31.3 in Height: 1058 mm / 41.7 in
Wheelbase	1440 mm / 56.7 in
Seat Height	795 mm / 31.3 in
Dry Weight	177 kg / 390 lbs
Fuel Capacity	15 L / 4.0 US gal / 3.3 Imp gal
Consumption Average	4.85 L/100 km / 20.6 km/l / 48.5 US mpg / 58.2 Imp mpg
Standing ¼ Mile	12.8 sec
Top Speed	197.8 km/h / 123 mph

Ducati presents the Monster 620 Capirex: a special version of the Monster dedicated to Loris Capirossi, the renowned Italian racer who just wrapped up his outstanding first year in MotoGP with Ducati.

The Monster 620 Capirex sports an exciting colour combination of red fairing, seat cover and tank and lateral white stripe, as on the Monster S4R. In addition, the bike comes emblazoned with the "Capirex" official logo on the plexiglas screen, and Loris's official race number 65.

And to all of this we have added an all new 6-speed gearbox designed to ensure smoother acceleration and pickup in all riding conditions and brand-new wet clutch, a user-friendly feature taken from the 2004 Monster 620.

Since its release a decade ago, the Monster has defined an entirely new market segment (over 130,000 bikes made) by keeping faith with the features that have assured its success. The Monster is the product of constant refinement and improvement of function, design, safety standards, reliability, handling, and performance.
