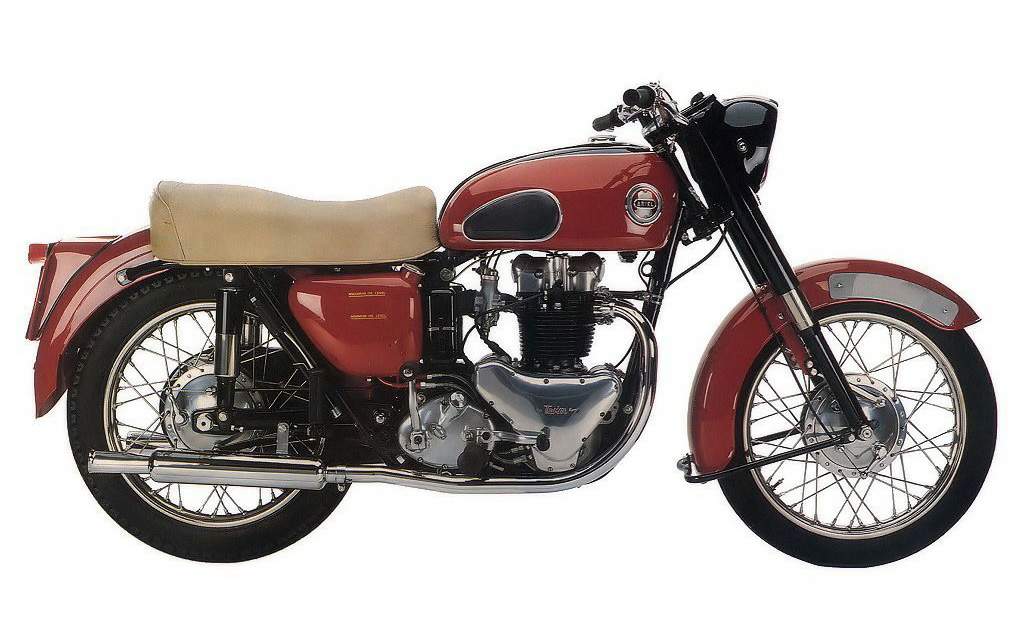

Ariel FH 650 Huntsmaster

Make Model	Ariel FH 650 Huntsmaster (Solo)
Year	1954 - 58
Engine	Four stroke, twin, OHV
Capacity	648 cc / 39.5 cu in
Bore x Stroke	70 x 84 mm
Cooling System	Air cooled
Compression Ratio	6.5:1 or 7.5:1
Lubrication	Dry sump, dual pump
Oil Capacity	2.3 L / 4.8 US pt
Exhaust	Twin, chrome
Induction	Carburetor, Amal 376/12
Ignition	Magneto
Spark Plug	Champion L10S
Starting	Kick starting
Transmission	4-Speed
Final Drive	Chain, 100 pitches
Gear Ratio	1st 12.01 / 2nd 7.71 / 3rd 5.93 / 4th 4.53:1
Frame	Swinging arm frame with front duplex down tubes
Front Suspension	Telescopic fork with hydraulic control
Rear Suspension	2 x Flexible coil springs
Front Brakes	Drum, 7 in
Rear Brakes	Drum
Wheels	Steel, laced wire spokes
Front Rim	3.25 x 19
Rear Rim	3.5 x 19
Dimensions	Length: 2184 mm / 86 in Width: 686 mm / 27 in
Wheelbase	1422 mm / 56 in
Ground Clearance	140 mm / 5.5 in
Seat Height	787 mm / 31 in
Dry Weight	181 kg / 400 lbs
Fuel Capacity	20.5 L / 5.4 US gal
Average Consumption	5.1 L/100 km 19.5 km/l / 46 US mpg
Top Speed	161 km/h / 100 mph
Review	Some photos from NZ Classic Motorcycles

A BSA Group exercise in 'badge engineering', the Huntmaster deployed the 650cc twin-cylinder engine of the BSA A10 in Ariel's new swinging-arm frame. In Ariel guise the power unit differed only in detail, its origins being disguised beneath a reshaped timing cover, while on the primary drive side Ariel's traditional 'dry' clutch was retained. The factory claimed a top speed of 90-95mph, with fuel consumption of 65-70mpg when cruising at 45mph. Produced from 1954, the Huntmaster disappeared along with the rest of Ariel's four-strokes in 1959.
