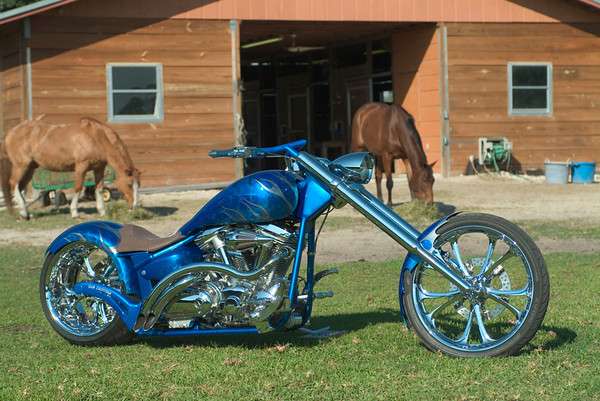

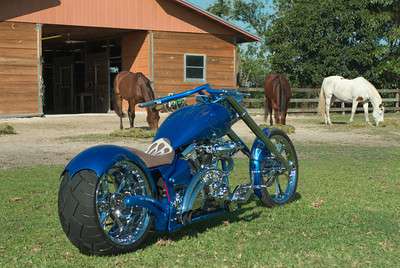

BMS Choppers Road Star

Make Model.	BMS Choppers Road Star
Year	2004
Engine	Four stroke, 48° V-twin
Capacity	1671 cc / 102 cu in
Bore x Stroke	97 x 113 mm
Cooling System	Air cooled
Compression Ratio	8.3:1
Lubrication	Dry sump
Exhaust	Two-into-two, chrome
Induction	Ø40 mm Mikuni CV carburetor with throttle position sensor
Ignition	Digital TCI
Battery	12V, 18 AH
Starting	Electric
Transmission	5-Speed, wide ratio
Final Drive	Belt
Frame	Double tube cradle, single sided swingarm
Front Suspension	Ø43 mm Telescopic fork with adjustable preload
Front Wheel Travel	140 mm / 5.5 in
Rear Suspension	Single shock, link-type
Rear Wheel Travel	109 mm / 4.3 in
Front Brakes	Dual Ø298 mm discs, 4 piston calipers
Rear Brakes	Single Ø320 mm disc, 2 piston caliper
Wheels	3-Spoke, aluminium, chrome
Front Tyre	130/90-16
Rear Tyre	150/80-16
Dimensions	Length: 2499 mm / 98.4 in Width: 980 mm / 38.6 in Height: 1140 mm / 44.9 in
Wheelbase	1689 mm / 66.5 in
Ground Clearance	145 mm / 5.7 in
Seat Height	709 mm / 27.9 in
Dry Weight	308 kg / 679 lbs
Fuel Capacity	20.1 L / 5.3 US gal

The Road Star Just Keeps Getting Better and Better

Are you ready for the New 2004 Road Star? The Star Family’s bare-knuckled brawler has been working out hard and it shows - inside and out. Modern-day V-twin muscle meets legendary styling, making this more than just a motorcycle. It’s a rolling work of art.

At the heart of the improvements is the New 102 cubic-inch air-cooled, long-stroke, OHV 48° twin engine that pumps out huge amounts of torque barely off idle for brisk acceleration and fantastic overall cruising performance. Additional engine mods include redesigned valve system, camshafts, rocker arms, air induction system, cooling fins and beefed up clutch. Bottom line...more power and performance.

There's lots more. An all-new lightweight and high-strength final drive belt provides long life, quiet operation and better acceleration. All-new brakes featuring dual 298mm front disc brakes with 4-piston calipers (that come straight off the YZF-R1) and 320mm single disc rear brake for strong stopping power.

Short and long range rider comfort is supreme thanks to wide, swept-back, 1"-diameter, rubber-mounted handlebars, restyled touring rider seat that's 40mm wider, a reshaped passenger seat and full-size floating-type rider floorboards with new rubber inserts.

And, with its new ultra-thin, tank-mounted speedometer, beefy, brushed-steel forks, sculpted steel fenders and all-new 16" cast wheels shod with tubeless tires, no other cruiser does it so elegantly.
