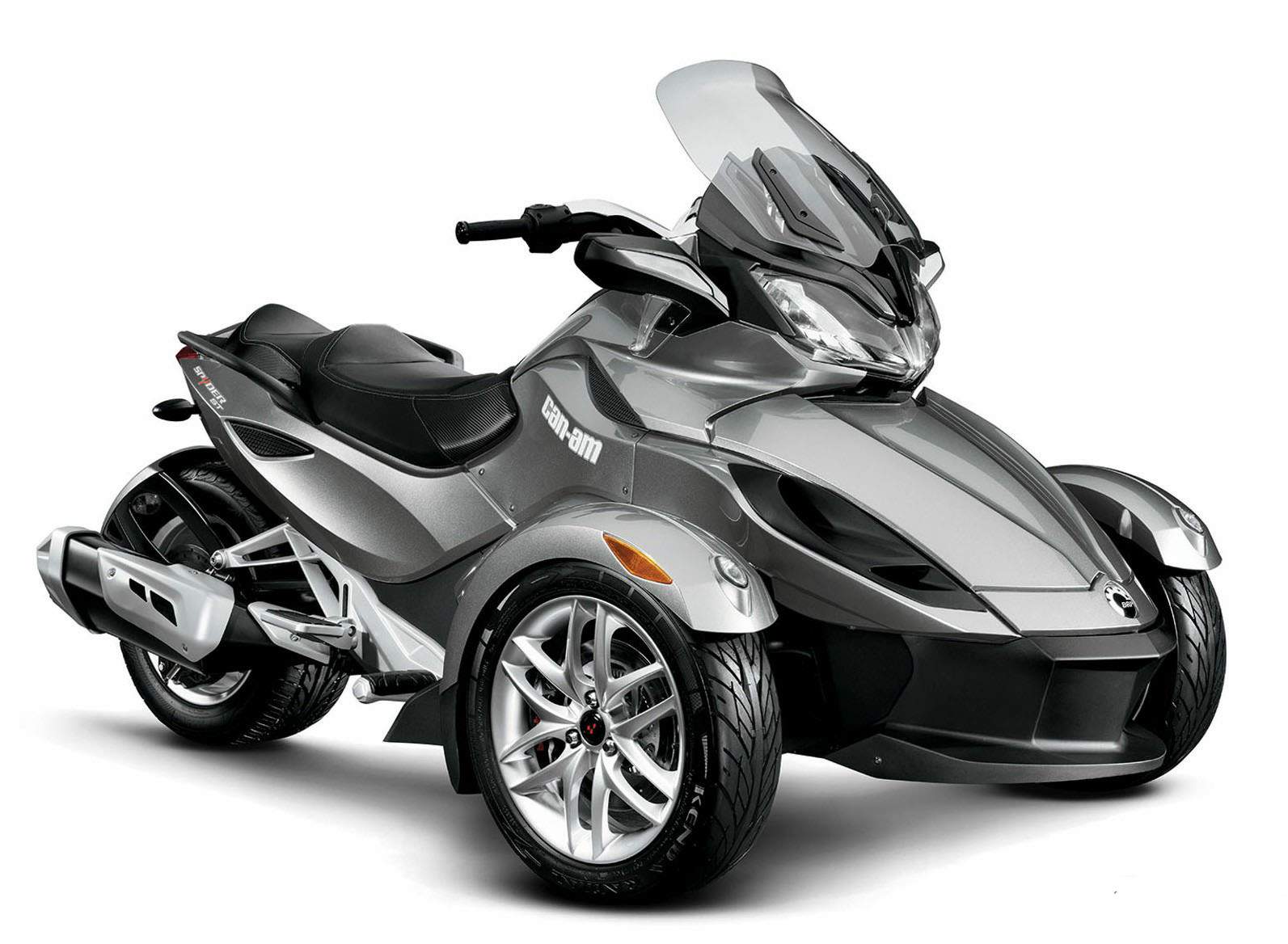

Can-Am Spyder ST

.

Make Model

BRP Can Am Spyder ST

Year

2013 - 14

Engine

BRP-Rotax, four stroke, V-Twin, DOHC, 4 valve per cylinder

Capacity

998 cc / 60.9 cu-in
Bore x Stroke 97 x 68 mm
Cooling System Liquid cooled
Compression Ratio 10.8:1

Induction

Multi-point EFI with 57 mm diameter throttle bodies

Ignition

Electronic ignition with dual output coil
Starting Electric
Exhaust 2-into-1 with catalytic converter

Max Power

106 hp / 79 kW @ 8500 rpm

Max Torque

77 lb-ft / 104.3 Nm @ 6250 rpm

Clutch Wet, multi-plate, manual or electronic operation through a hydraulic piston

Transmission

5-speed manual with reverse (SM5)
5-speed semi-automatic with reverse (SE5)

Final Drive Belt

Front Suspension

Double A-Arm with anti-roll bar, with adjustable cam

Front Wheel Travel 144 mm / 5.67 in

Rear Suspension

Swing-arm with monoshock, with adjustable cam rear suspension travel.

Rear Wheel Travel 145 mm / 5.7 in
Brakes Foot-actuated, fully integrated hydraulic 3-wheel braking system

Front Brakes

270mm discs  4 piston caliper

Rear Brakes

Single 270mm disc 2 piston caliper

Front Tyre

2x 165/65R14

Rear Tyre

225/50R15

Dimensions

Length 2667 mm / 105 in

width  1506 mm / 59.3 in

Height  1332 mm / 52.4 in.

Storage capacity 44 Litres / 12 gal
Max Vehicle Load 200 kg / 440 lbs
Wheel base 1711 mm / 67 in
Seat Height 737 mm / 29 in

Dry Weight

392 kg / 864 lbs

Fuel Capacity

25 Litres / 6.6 gal



Ample storage and wind protection with the ergonomics to handle tight corners and long rides.

A perfect blend of sport and touring, the Spyder ST combines ample storage and wind protection with the ergonomics to handle tight corners as easily as it handles long rides. Plus, it features automotive-inspired technologies like a Vehicle Stability System and a manual or semi-automatic transmission, giving it a smooth, confident ride.

Get comfortable taking the corners. The Spyder ST combines the performance you long for with the comfort and convenience you need. Its stylish and street savvy, yet still highway hungry.

Can-Am Spyder ST Key Features

998cc Rotax V-Twin engine
Vehicle Stability System
12 gallons (44 L) of storage
Metallic silver front rims with twin-spokes
Adjustable windshield with wind deflectors
Adjustable passenger footboards
Sport touring seat
Multifunction color digital display
Roadster electronic command center
Anti-theft system: Digitally Encoded Security System (D.E.S.S.)
Compatible with the optional RT-622 trailer

Color available: Pure Magnesium Metallic

Can-Am Spyder ST Features and Benefits

Three wheels. Three different riding positions. - Some people love to attack tight corners. Others love to sit back and enjoy the scenery. Whatever your riding style, from sport to touring to somewhere in between, theres a Can-Am roadster for you.

Spyder RT - Ultimate comfort, born for touring Upper body: Straight Knee bend: Relaxed+

Spyder ST - Sport-inspired, touring-ready Upper body: Slight forward lean Knee bend: Relaxed

Spyder RS - Sporty, performance-driven Upper body: Sporty forward lean Knee bend: Sporty

The three-wheeled design is just the beginning of the technology story. - Vehicle Stability System Developed in partnership with BOSCH and inspired by automotive technologies, the Vehicle Stability System integrates ABS, traction control and stability control
for an incredibly confident ride.

STABILITY CONTROL SYSTEM
The stability control assesses your intended direction via the handlebar and determines the vehicles appropriate response. The system individually applies the brakes to the wheels and/or reduces excess engine torque until control is regained.

ANTI-LOCK BRAKING SYSTEM (ABS)
Sensors monitor the rotation of all three wheels. If any of the wheels is at risk of locking, ABS reduces brake pressure on it. This intervention repeats in rapid succession and can be performed independently on each wheel, allowing for maximum braking performance.

TRACTION CONTROL SYSTEM
Whenever the Traction Control System detects excessive rear wheel spin (e.g., in slippery conditions), it reduces engine torque by regulating engine ignition and fuel injection. This enables the roadster to accelerate with minimum corrective input from the rider.

Sport-Touring Seat
Firm and comfortable seat for handling tight corners as well as long-distance rides.

Ample Storage
Lockable front storage with 12 gallons (44 L) of watertight space and enough room for two helmets.

Multi-Function Color Display
Vivid, full-color digital screen allows easier access to vehicle information, such as speed, trip distance and RPMs.

15-in. Front Wheels with Low-Profile Tires
Metallic Silver, twin-spoke wheels and low-profile tires with exclusive treads for a more striking look

Wind Protection
Adjustable windshield and removable wind deflectors that allow you to customize your wind protection to match the weather conditions.

Accessories:

Enhance your riding experience or just give it a more personal touch with Can-Am roadster accessories and clothing. Need more storage for longer rides? Crave the look and sound of pure performance? Want more comfort and control? Whatever roadster you ride, youll find a wide range of available gear and accessories.
