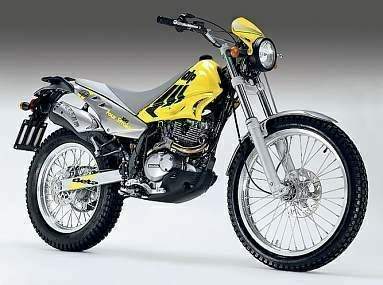

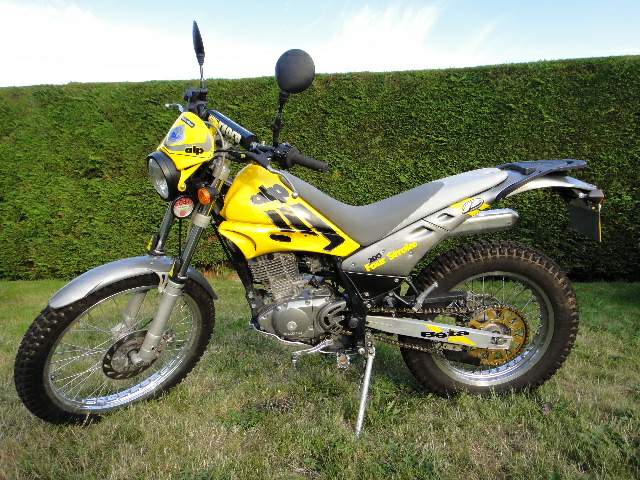

Beta Alp 200 4T

.

Make Model

Beta Alp 200 4T

Year

2003 - 04

Engine

Four stroke, single cylinder, SOHC, 2 valves per cylinder

Capacity

199 cc / 12.1 cu in

Bore x Stroke

66 x 58.2 mm

Compression Ratio

9.4:1

Cooling System

Air cooled

Lubrication System

Forced, with pump

Induction

Mikuni BST 31 42AD

Ignition

Electronic

Starting

Electric & kick

Max Power

11.2 kW / 15 hp @ 7750 rpm

Transmission

5 Speed

Final Drive

Chain

Front Suspension

Hydraulic forks, 38mm Ø

Front Wheel Travel

170 mm / 6.7 in

Rear Suspension

Single shock adjustable spring preload

Rear Wheel Travel

180 mm / 7.1 in

Front Brakes

Single 220 mm Ø disc, 2-piston caliper

Rear Brakes

Single 200 mm Ø disc, 1-piston caliper

Front Wheel

2.75 -21

Rear Wheel

4.00 -18

Front Tyre

90/90-21

Rear Tyre

120/80-18

Dimensions

Length: 2150 mm / 84.6 in

Width:      830 mm / 32.3 in

Height:  1170 mm / 46.1 in

Wheelbase

1350 mm / 53.1 in

Seat Height

830 mm / 32.7 in

Ground Clearance

280 mm / 11 in

Dry Weight

103 kg / 227 lbs

Fuel Capacity

6.8 L / 1.8 US gal

Fuel Reserve

1.5 L / 0.40 US gal
