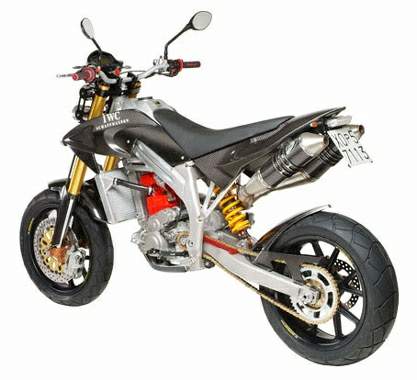

Terra Modena 198

Make Model	Terra Modena 198
Year	2006
Engine	Four stroke, single cylinder SOHC, 4 valves
Capacity	449.6 cc
Bore x Stroke	98 x 59.6 mm
Cooling System	Liquid cooled
Compression Ratio	13.0:1
Induction	Indirect injection, diameter of throttles 48mm,
Ignition	Digital electronic.
Starting
Max Power
Max Torque
Clutch	Wet multiple hydraulically operated plates.
Transmission	6 Speed
Final Drive	Chain
Front Suspension	Öhlins upside-down front suspension fork with 46mm diameter rods and adjustable compression, rebound and pre-stressing
Rear Suspension	swinging fork and Öhlins 46mm single shock absorber fitted with inert gas cartridge and separator piston.
Front Brakes	Single 320mm disc 4 piston caliper
Rear Brakes	Single 220mm disc 1 piston caliper
Front Tyre	120/70 ZR17
Rear Tyre	180/55 ZR17
Seat Height	890 mm
Dry-Weight	120 kg
Fuel Capacity	8.5 Litres

A high-tech single-cylinder motorbike that is beautifully designed, powerful, suitable for both the road and the track and fitted with the very best in terms of the materials used and the quality of its components. Technology and design are born of a unique Italian motor industry tradition: the shape of the 198 forms one clean line, from its front nose to its slim tail-end. Its energy is immediate expressed in the dynamic interplay of lines.

The heart of Terra Modena 198 is a single-cylinder that is light, powerful, doesn't vibrate and runs smoothly. Every input is eagerly met with a precise and emphatic response: it is easy and fun when just taking a ride, but with more than enough grit to satisfy those who believe that it's the bends in the road that make riding a motorbike worthwhile. Created to provides a superior driving pleasure. A mark of uncompromising engineering.
