SS Trike

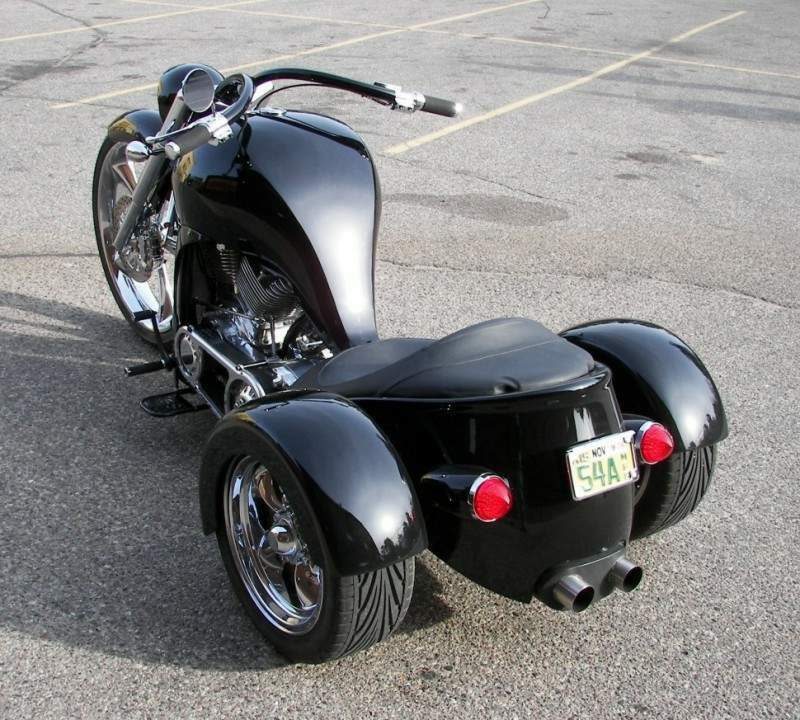

The SS Trike from Olmax Fabrication is powered by the buyer's choice of air-cooled V-twin engines from Ultima, S&S or TP. That giant hoop up front measures 24 inches in diameter, easily dwarfing the classically-cool 14-inch American Racing rims out back. Those twin rear wheels receive power through either a six-speed manual gearbox or optional automatic transmission developed using well-known GM Powerglide parts that should therefore be more than up to snuff in this application. Through a quick-change set of seats and foot controls, the SS Trike can reportedly accommodate riders ranging from 5-foot tall to 6-foot-2.

Source SS Trike

Specifications

Engine Type: 117 inch EPA Certified S&S X-Wedge Engine
Primary Drive: Dry Belt drive
Transmission: 2-speed automatic transmission with lockup torque converter
Final Drive: Premium o-ring chain
Exhaust: 2 into 1, chambered muffler
Electronic Fuel Injection

CHASSIS
Frame: Steel
Body: Fiberglass
Front Suspension: American Suspension inverted
Rear Suspension: Swing arm style
Single shock
Adjustable air suspension with hydraulic shock
Front Brakes: 11.5″ disc with 4 piston calipers
Rear Brakes Dual 9″ discs with 2 piston calipers
Tires (F,R): 130/70-24 Radial, 195/45R-14 Radial
Wheels (F,R): 5-spoke forged, 5 spoke cast

ELECTRICAL
D.O.T. LED signals, front and rear
High Quality Halogen headlight
Automatic canceling turn signals
Wire plus digital speedometer with tachometer

DIMENSIONS
Overall Dimensions: (L x W x H): 91 x 45 x 41
Seat Height: 2 different seat heights 13″ and 15″
Wheel Base: 66″
Fuel Capacity : 5 gallons
Dry Weight: 969 lbs.
